Plan 60566ND
The Perfect Retreat
Heated S.F.
2,340
Beds
3
Baths
2.5
Stories
2
What's Included
Plan Details
  • For a perfect retreat to the lake, this vacation house plan offers an ideal use of space and a huge wraparound deck.
  • Stay warm by the fireplace in the cozy living room with vaulted ceiling open to above.
  • Enjoy the view from the bay window breakfast nook.
  • The kitchen features a peninsula bar, perfect for quick meals.
  • The master bedroom features a walk-in closet and opens up to the deck.
  • Upstairs you'll find 2 more bedrooms, a full bath and a balcony open the to the living room below.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

The Perfect Retreat

  • 2,340

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

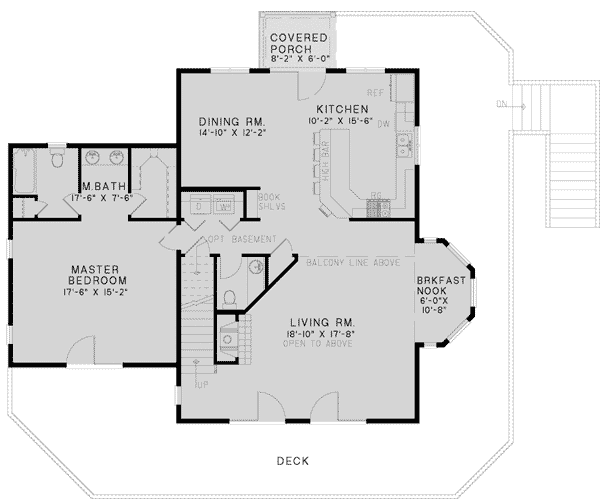

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,340 sq. ft.
  • 1st Floor: 1,479 sq. ft.
  • 2nd Floor: 861 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 38' 0"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
