Plan 12272JL

The Prestige of Your Own Castle

Heated S.F.

3,777

Beds

4

Baths

4.5 - 5.5

Stories

2

Cars

3

Floor Plan

Main Level

2nd Floor

Lower Level

Plan Details

Everyone is welcomed into this gorgeous European home by a magnificent two story foyer, accompanied by an opulent floating staircase.
The design allows for the staircase to wind you around and out onto the second floor.
A massive amount of splendid light flows through the living room, due to the enormous wall of windows on the far side. This room also offers a large roaring fireplace for those intimate family holidays.
A sunken library lies close by the curved staircase.
The master suite features enormous tray ceilings as you enter the room. Lying within, there is yet another handcrafted fireplace for your own personal enjoyment.
French doors give access to the optional private patio, pond and outdoor shower for the ultimate in luxury.
The informal family living area combines the huge gourmet kitchen with the morning room set in a bay and the family room with its coffered ceiling.
You'll find plenty of attic storage and a future room on the upper floor along with three generously-sized bedroom suites.

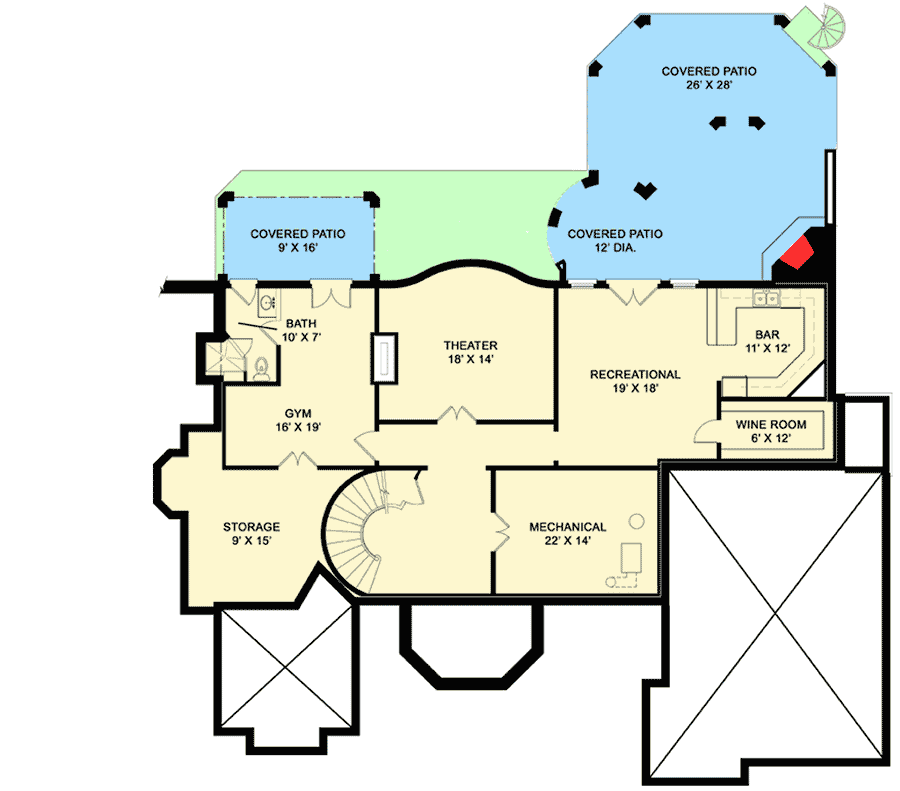

An optional finished lower level gives you a home gym, theater room and wine room with wet bar.
Related Plan: Get an alternate exterior with house plan 12273JL and a smaller version with house plan 12299JL (3,660 sq. ft.).

What's Included

Cover Sheet -The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation - These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.

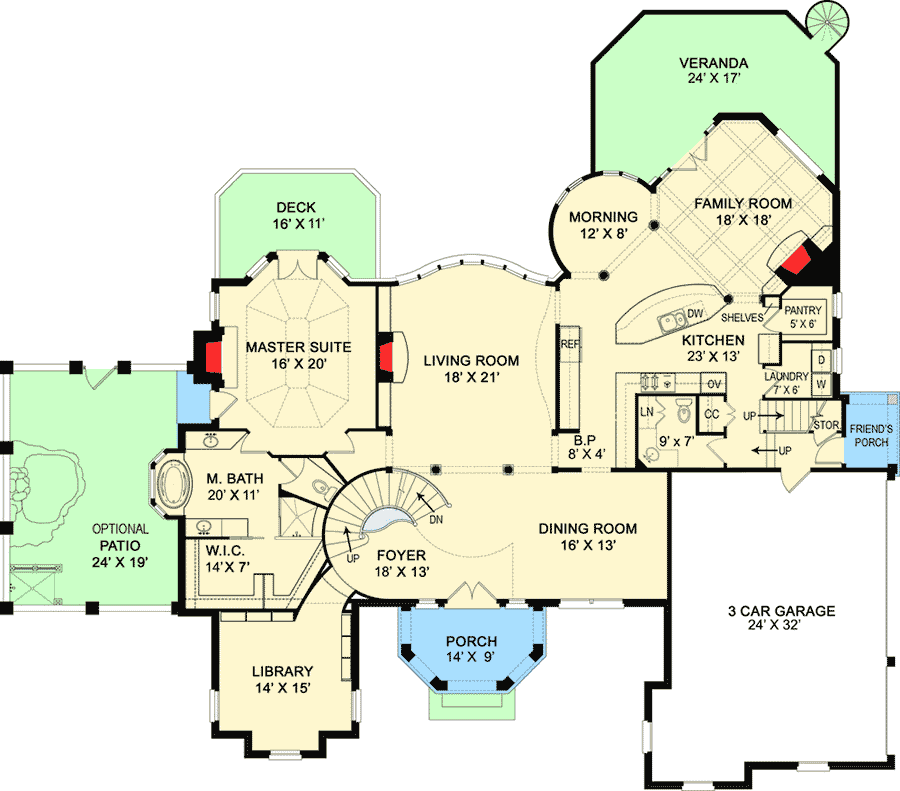

First Floor Plan - This page is drawn to 1/4”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. Conventional framing.

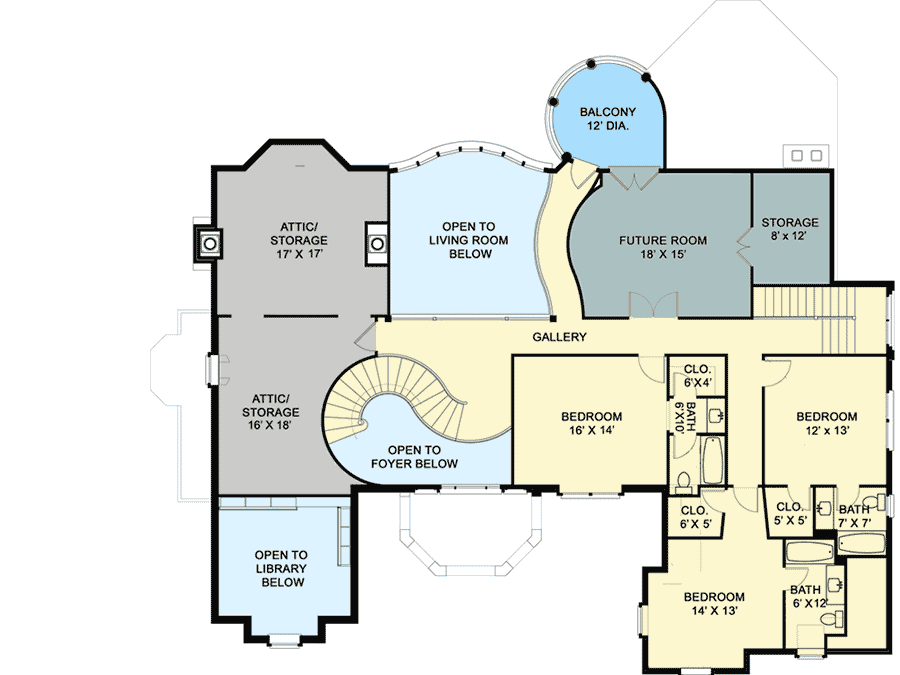

Second Floor Plan - The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor.
Lighting and Electrical - On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting - The same details as provided for the first floor.

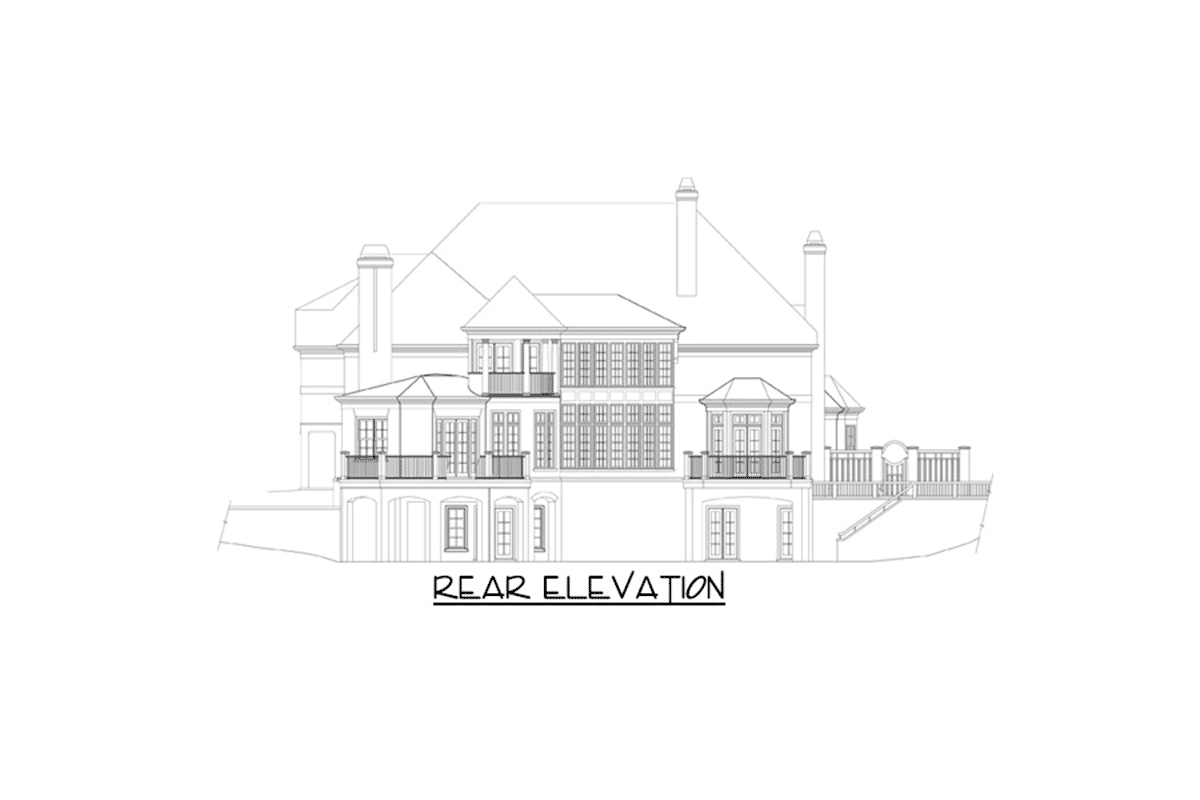

Front and Rear Elevations - The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.

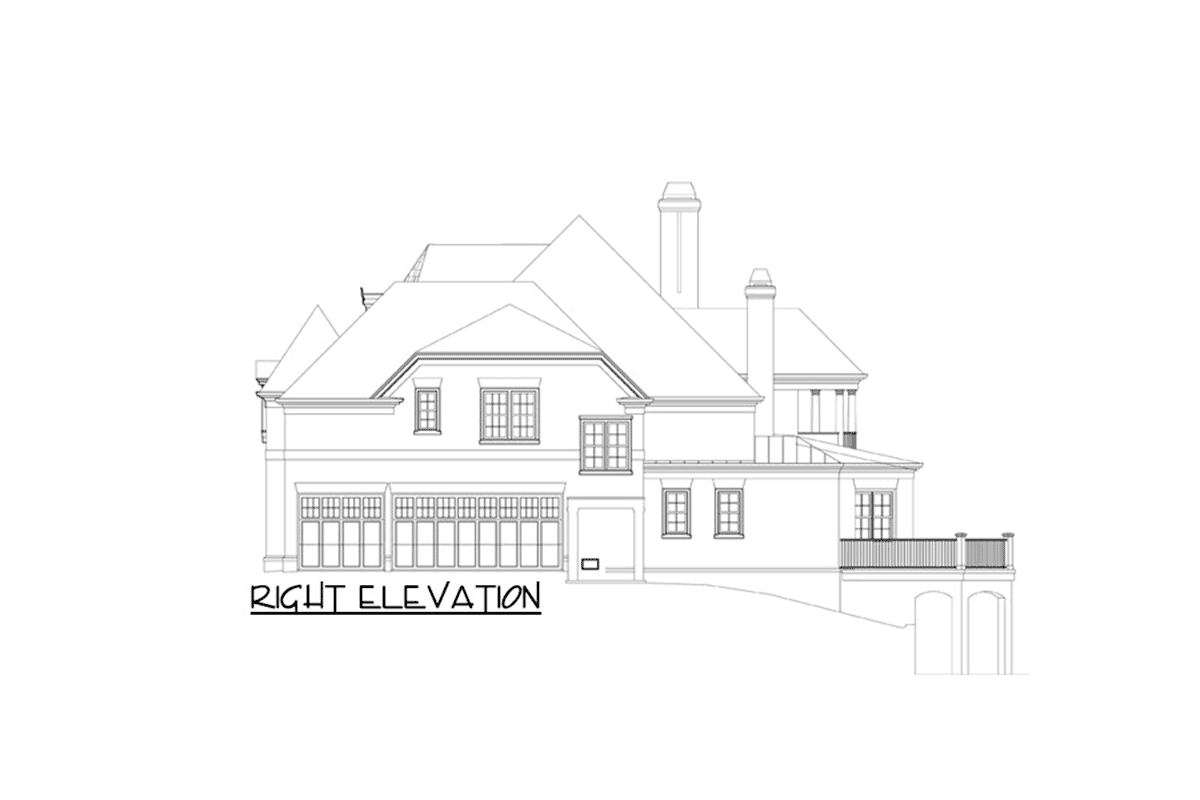

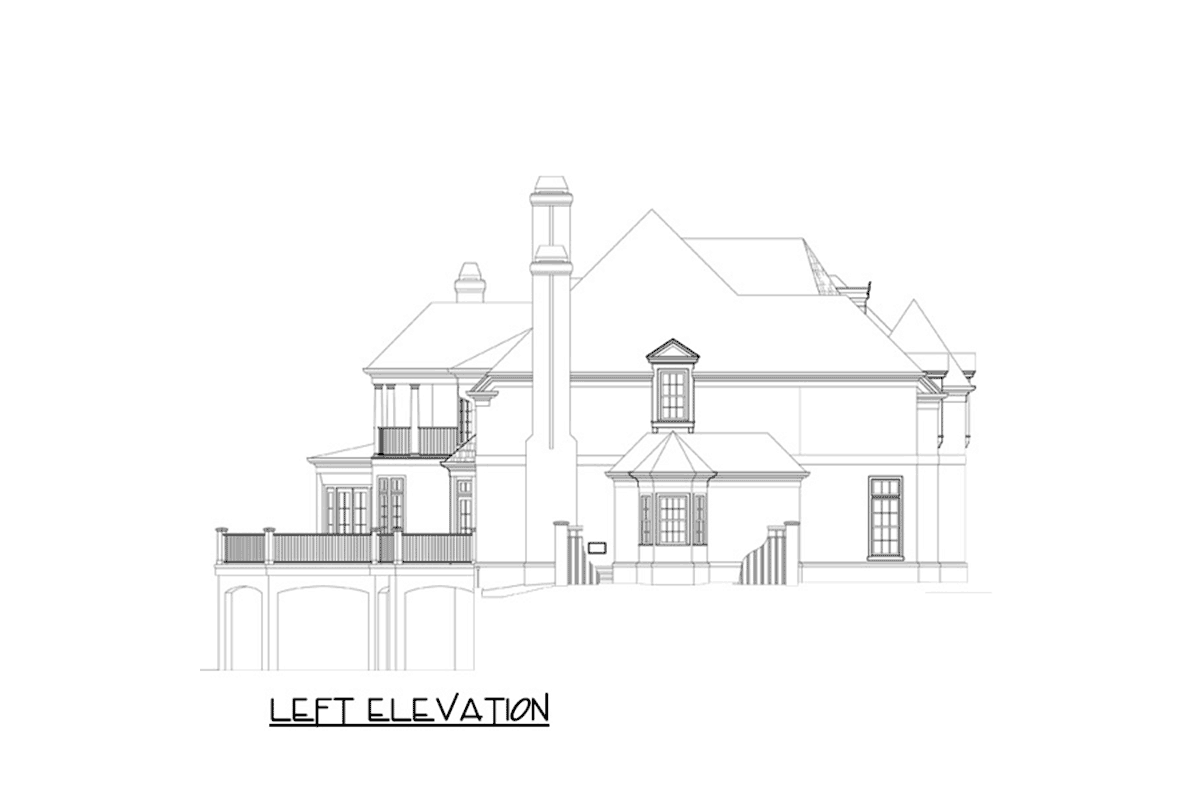

Right and Left Elevations - The right and left elevations provide the same details as the front and rear elevations.
Roof Plan - This drawing, usually at 1/4”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.
Cross-Sections - Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations - Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: Most house plans will contain interior/cabinet elevations, however not all plans will. Please inquire prior to purchase.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
