Plan 51293MM

Three Bed Craftsman House Plan with Bonus Room Above

Heated S.F.
1,898
Beds
3
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 51293MM

Main Level
Main Level
Optional Finished Bonus Room Level
Optional Finished Bonus Room Level

Plan 51293MM

M-F 9am-5pm EST |

1-203-761-8500

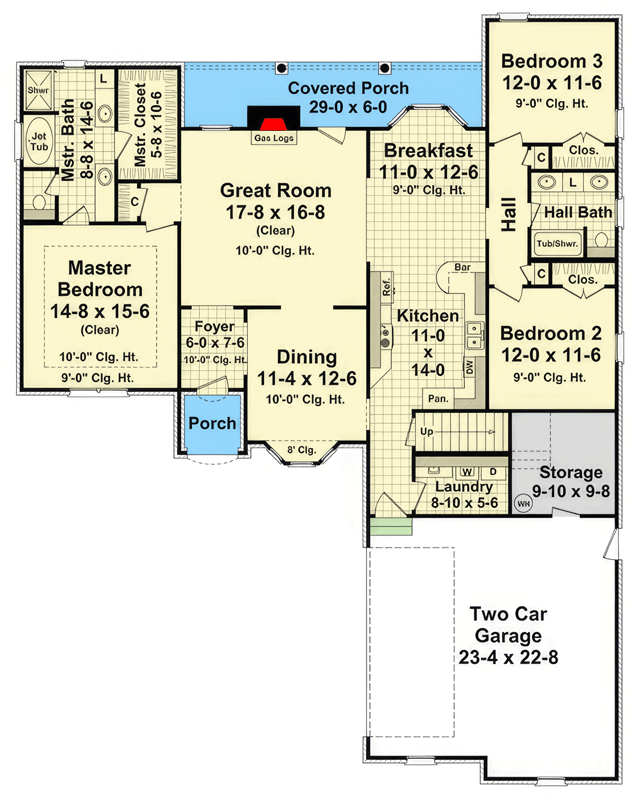

Main Level

Plan 51293MM: Three Bed Craftsman House Plan with Bonus Room Above - Floor Plan - Main Level - Craftsman, Traditional

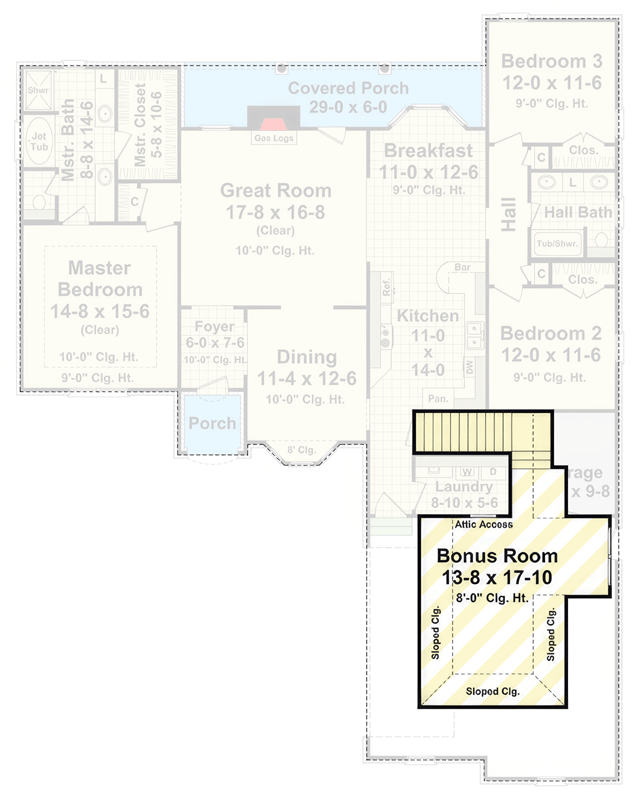

Optional Finished Bonus Room Level

Plan 51293MM: Three Bed Craftsman House Plan with Bonus Room Above - Floor Plan - Optional Finished Bonus Room Level - Craftsman, Traditional

Plan Details

  • This charming 1,898 sq. ft. Craftsman-style house plan features 3 bedrooms, 2 full bathrooms, and an attached 713 sq. ft. two-car side-entry garage.
  • The welcoming foyer, graced by a charming front porch, opens directly into a formal dining area and leads seamlessly into the expansive great room, establishing an immediate sense of open flow.
  • The heart of the home is the open-concept great room, distinguished by a cozy fireplace and direct access to the rear covered porch. Adjacent to this, the kitchen boasts a practical bar seating area and flows into a sunlit breakfast nook, perfect for morning coffee or casual meals.
  • The private main-level master suite offers a serene retreat, complete with a luxurious master bath featuring a jet tub, separate shower, and a spacious walk-in closet. Two additional bedrooms, located on the opposite side of the house, share a well-appointed hall bath, providing a thoughtful split-bedroom layout for enhanced privacy.
  • Enjoy serene outdoor living with a welcoming front porch, ideal for greeting guests, and a spacious covered rear porch accessible from the great room, offering an idyllic spot for al fresco dining or peaceful relaxation.
  • An exciting opportunity awaits with an optionally finished bonus room above the garage, providing an additional 347 sq. ft. of flexible space.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,898 sq. ft.

1st Floor

1,898 sq. ft.

Bonus

347 sq. ft.

Porch, Front

38 sq. ft.

Porch, Rear

147 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 0"

Depth

72' 6"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

713 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

1,898 sq. ft.

1st Floor

1,898 sq. ft.

Bonus

347 sq. ft.

Porch, Front

38 sq. ft.

Porch, Rear

147 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 0"

Depth

72' 6"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

713 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room
