Plan 42415DB

Three Bed House Plan With Room Over Garage

Heated S.F.
2,359
Beds
3
Baths
2
Stories
1-2
Cars
2

Floor Plan

Plan 42415DB

Main Level
Main Level
Bonus above Garage
Bonus above Garage

Plan 42415DB

M-F 9am-5pm EST |

1-203-761-8500

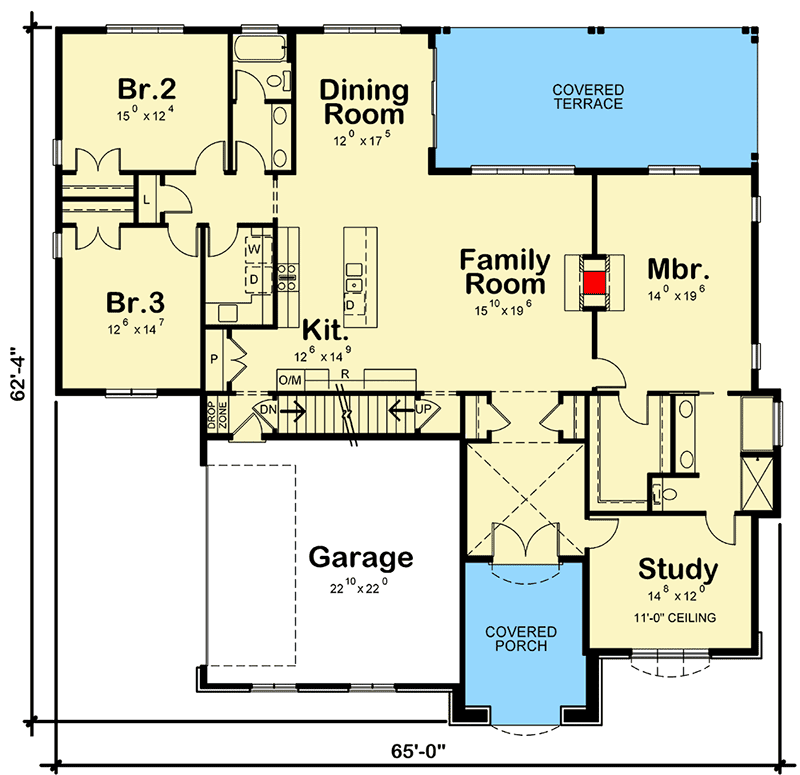

Main Level

Plan 42415DB: Three Bed House Plan With Room Over Garage - Floor Plan - Main Level - French Country

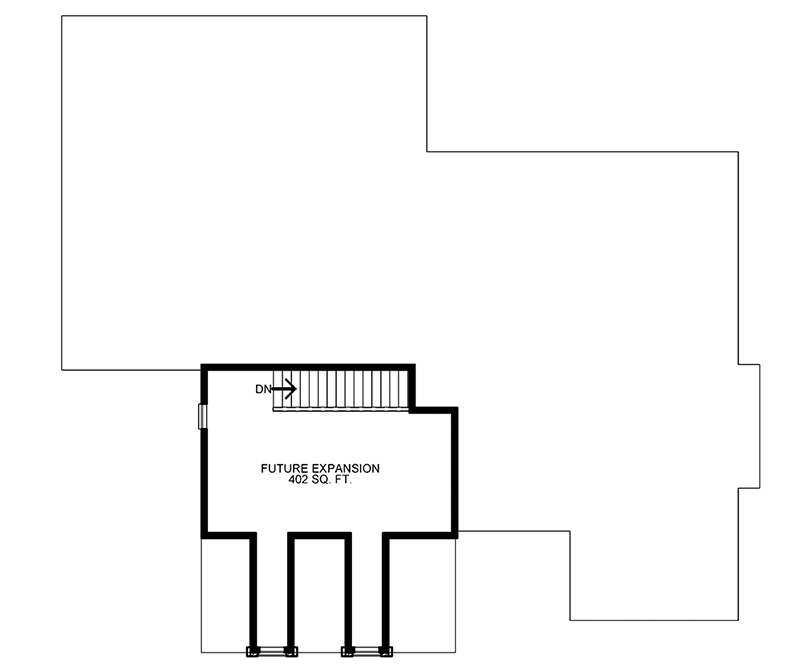

Bonus above Garage

Plan 42415DB: Three Bed House Plan With Room Over Garage - Floor Plan - Bonus above Garage - French Country

Plan Details

  • This one-story house plan has an attractive brick, stone and siding exterior. An arched entryway offers protection as you fumble for your keys by the front door.
  • A split bedroom layout leaves the central portion of the home open for entertaining.
  • A 2-sided fireplace is shared with the family room and master bedroom.
  • A large covered terrace is accessible off the dining room giving you a place to enjoy the fresh air.
  • Expand above the garage with the bonus room.
  • Note: Please all up to 20 business days for delivery.

What's Included

  • General Notes

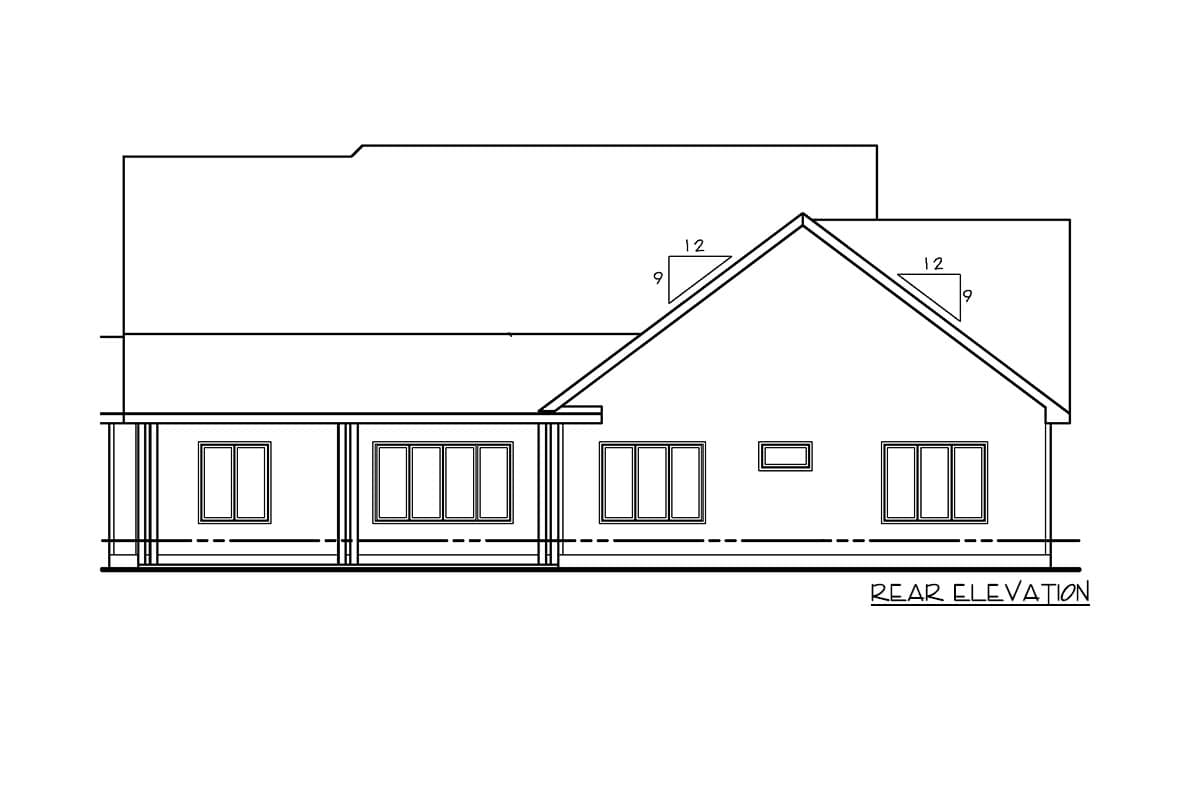

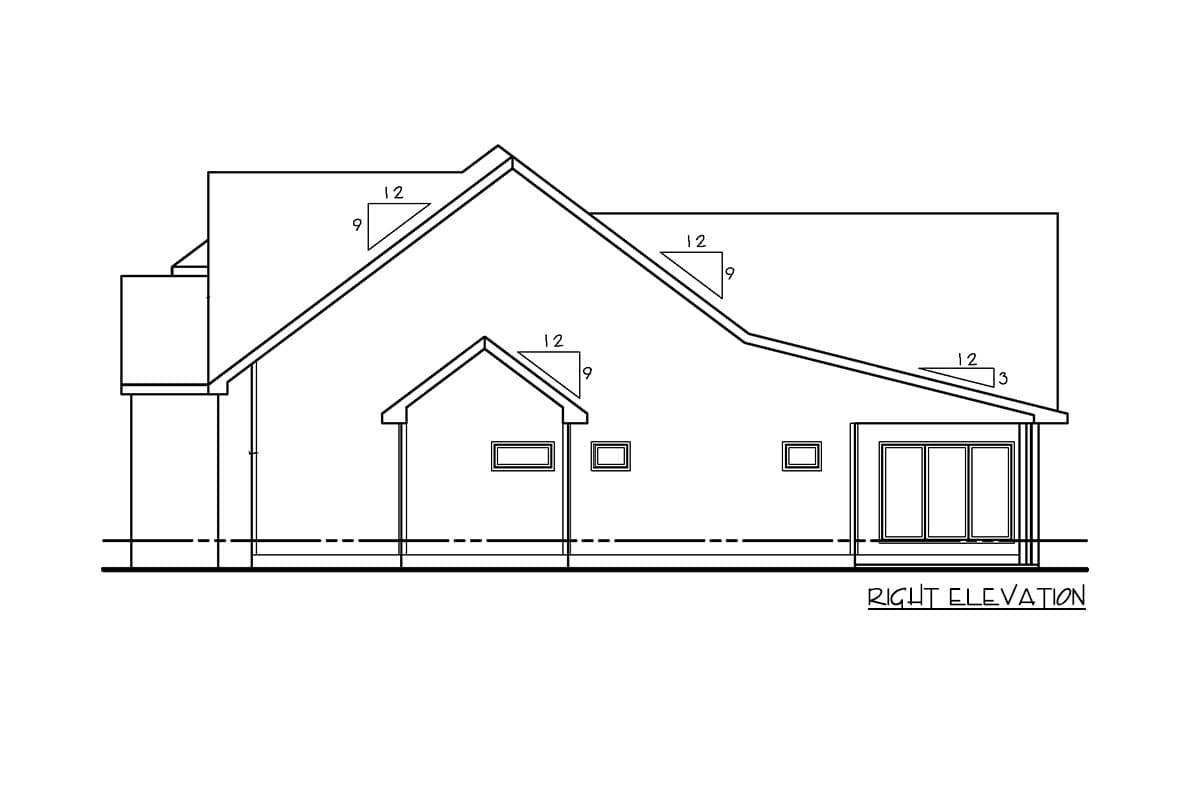

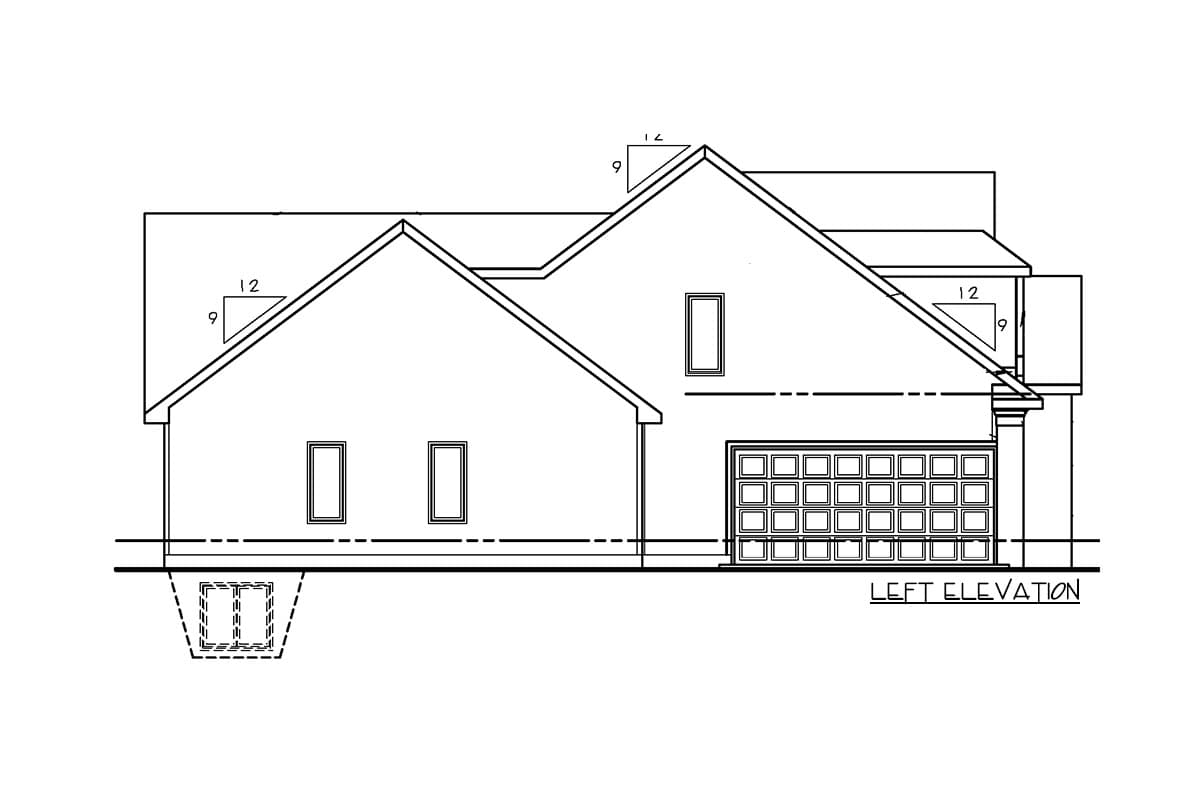

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,359 sq. ft.

1st Floor

2,359 sq. ft.

Bonus

402 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

62' 4"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

506 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Study

Flat

11' 0''

Foyer

Vaulted

0' 0''

Roof Details

Framing Type

Stick

Architectural Style

French Country

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

2,359 sq. ft.

1st Floor

2,359 sq. ft.

Bonus

402 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

62' 4"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

506 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Study

Flat

11' 0''

Foyer

Vaulted

0' 0''

Roof Details

Framing Type

Stick

Architectural Style

French Country

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Optionally Finished Bonus Room
