Three Bed House Plan with Timeless Curb Appeal Under 1700 Square Feet
Heated S.F.
1,656
Beds
3
Baths
2
Stories
1
What's Included
Plan Details
  • Clapboard siding and shingles in the bracketed gable peak give this exclusive one-level house plan a timeless curb appeal.
  • The front entry takes you directly into the vaulted family room, which flows into the eat-in kitchen.
  • An island with a double-bowl sink anchors the kitchen and the adjacent mudroom with backyard access connects with the sizable walk-in pantry.
  • The owner's bedroom consumes the rear and features a 3/4 bathroom with a linen closet. Bedrooms 2 and 3 reside down the hall, separated by a full bath.
  • The laundry room is centrally located to elicit help from all residents.
  • Related Plans: Get an alternate exterior with house plans 83621CRW and 83622CRW.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details

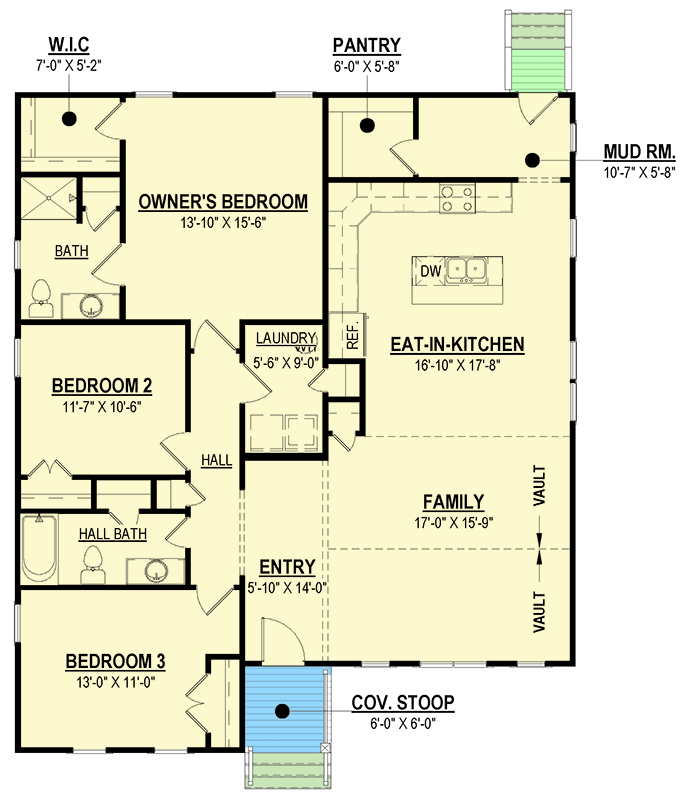

  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

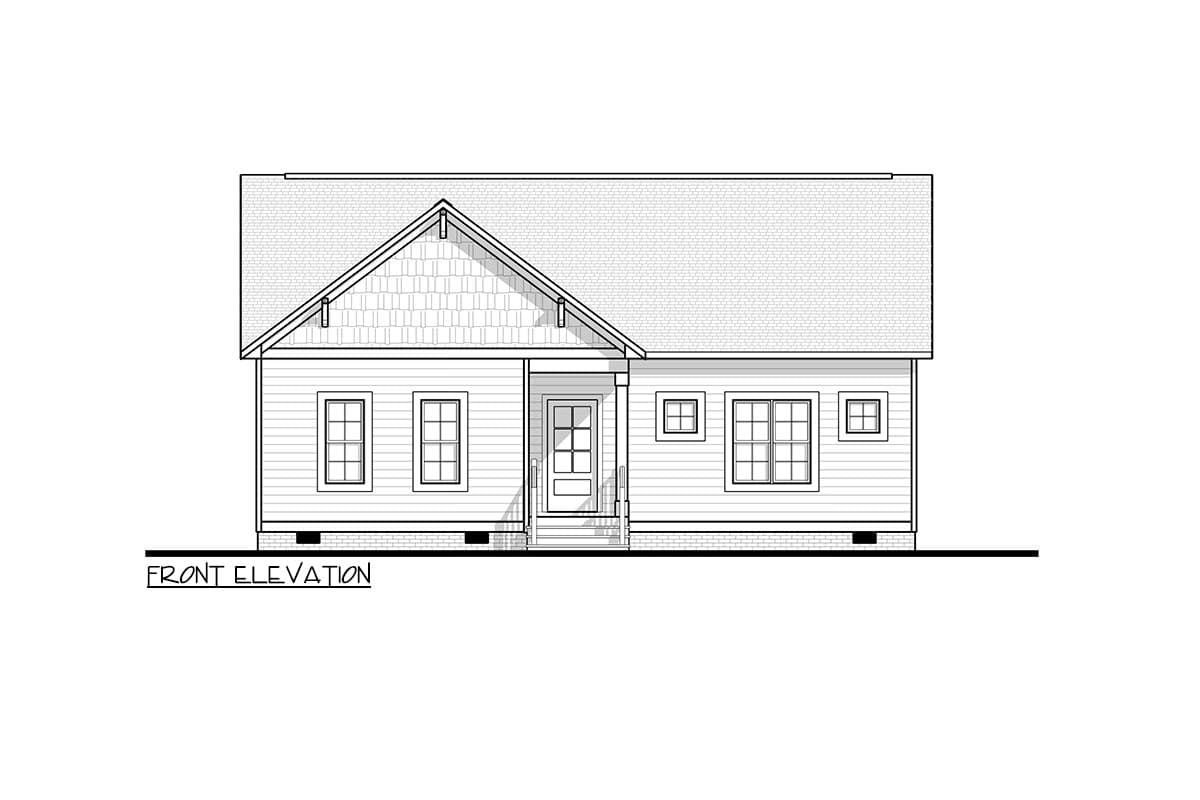

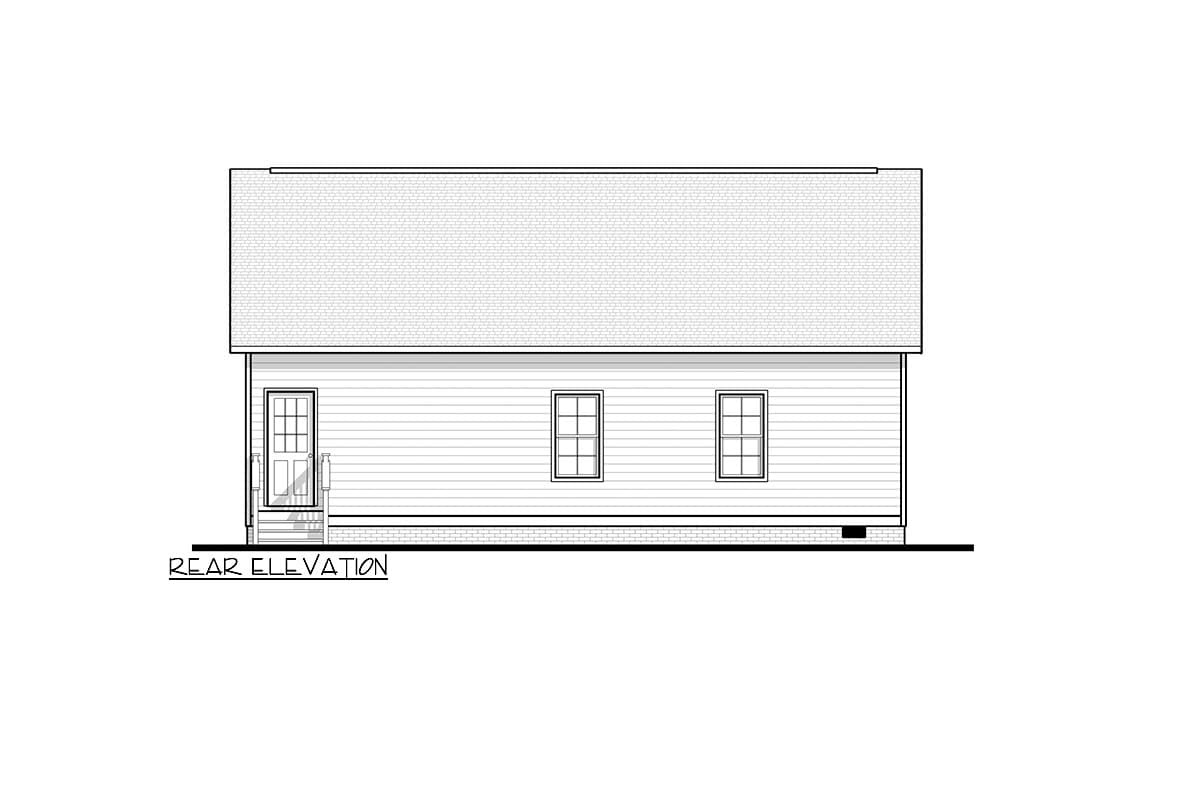

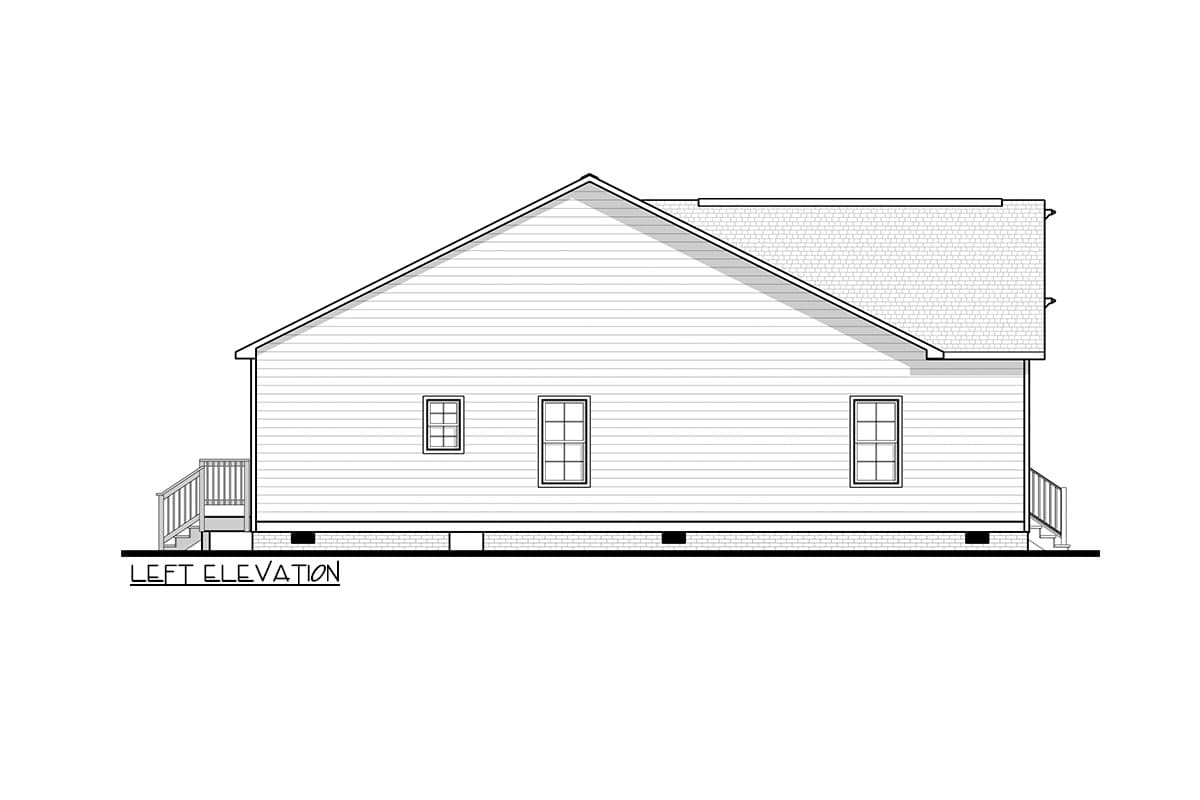

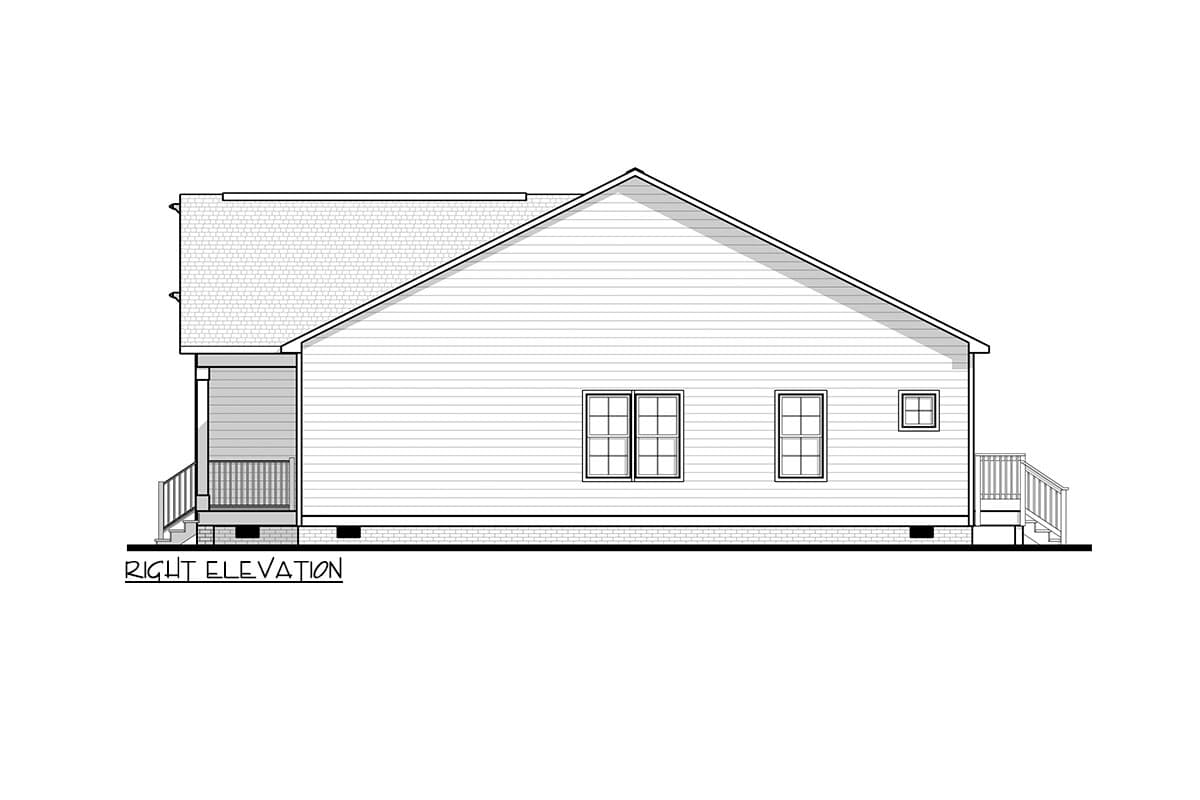

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Three Bed House Plan with Timeless Curb Appeal Under 1700 Square Feet

  • 1,656

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,656 sq. ft.
  • 1st Floor: 1,656 sq. ft.

Dimensions

  • Width: 39' 0"
  • Depth: 46' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
