Plan 52446WM

Three-Bedroom Craftsman Cottage with Split Bedroom Layout

Heated S.F.
1,341
Beds
3
Baths
2
Stories
1
Cars
1

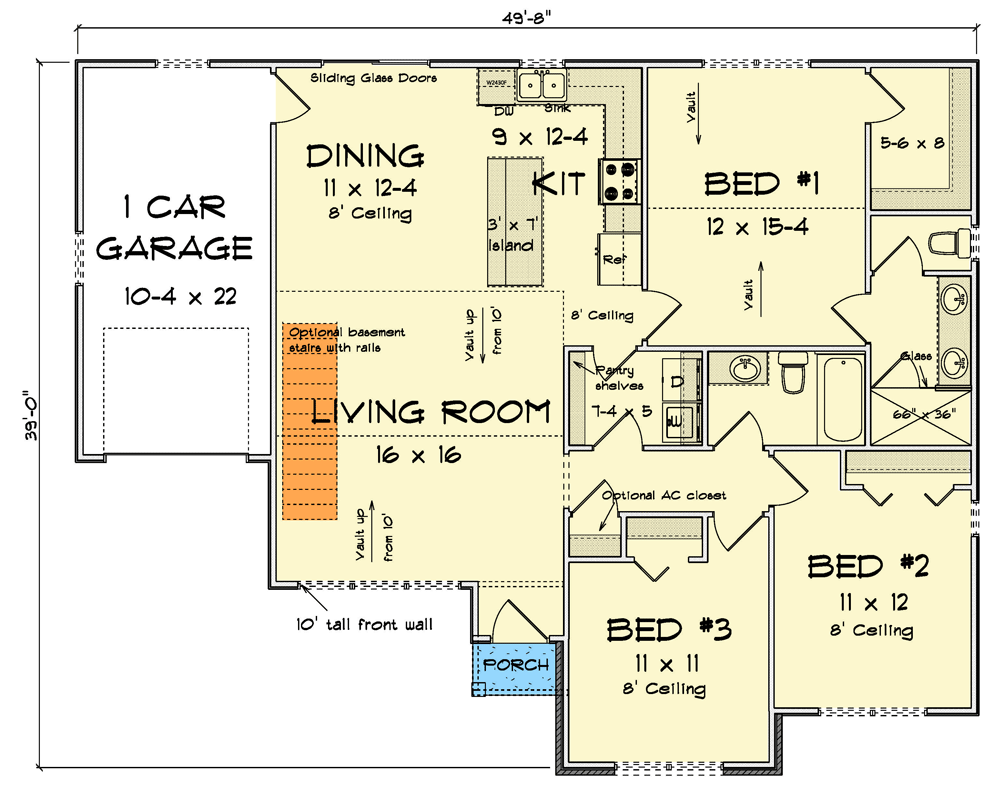

Floor Plan

Plan 52446WM

Main Level
Main Level

Plan 52446WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52446WM: Three-Bedroom Craftsman Cottage with Split Bedroom Layout - Floor Plan - Main Level - Cottage, Craftsman, Traditional

Plan Details

  • This inviting 1,341 sq. ft. craftsman cottage plan features 3 bedrooms, 2 baths, and an attached 1-car garage in a delightful traditional style.
  • Step inside to an open-concept living area with 8-foot ceilings, seamlessly connecting the living room, dining space, and a well-appointed kitchen with a butler walk-in pantry.
  • The main living areas flow effortlessly, ideal for both cozy family gatherings and entertaining, with the dining area offering easy access to the outdoors through sliding glass doors.
  • The master suite on the main floor provides privacy with its own en-suite bath, while the two additional bedrooms are positioned for a split-bedroom layout.
  • Outdoor living is enjoyable with a quaint front porch that adds to the welcoming charm of the home.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,341 sq. ft.

1st Floor

1,341 sq. ft.

Porch, Front

15 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 8"

Depth

39' 0"

Max Ridge Height

16' 9"

Garage

Type

Attached

Area

235 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
