Plan 444231GDN

Three Bedroom House Plan with 18' Cathedral Ceiling in the Great Room and Bonus Expansion

Name: Plan 444231GDN: Three Bedroom House Plan with 18' Cathedral Ceiling in the Great Room and Bonus Expansion
Brand: Architectural Designs
SKU: 444231GDN
Price: 1372.50 USD
Availability: InStock

Heated S.F.

1,882

Beds

Baths

2.5

Stories

Cars

Floor Plan

Main Level

Bonus Room

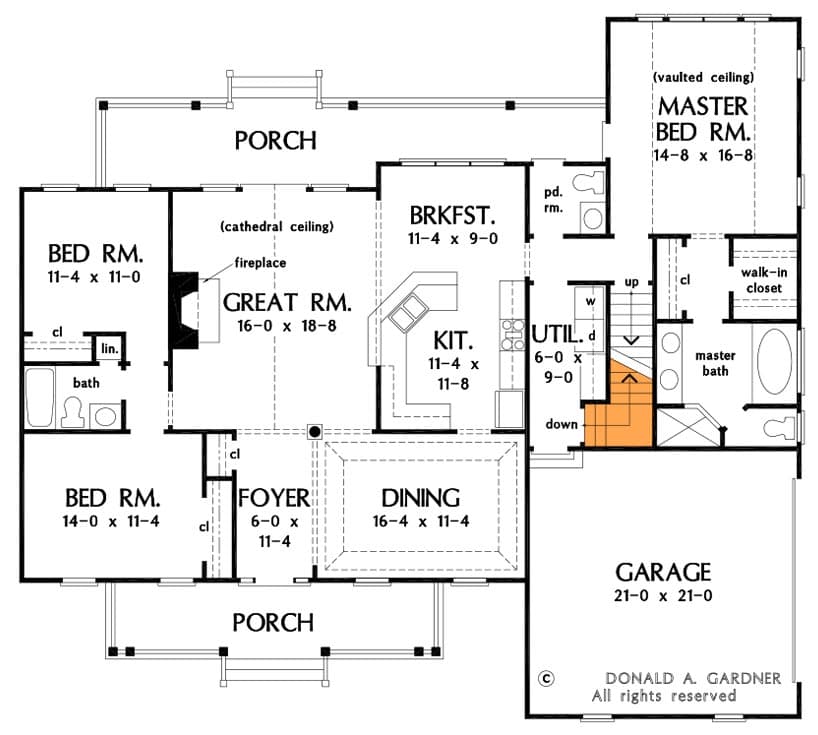

Basement Option

Plan Details

An arched window in a center, front-facing gable lends style and beauty to the facade of this three-bedroom house plan with a 26'6"-wide and 6'-deep front porch. An open common area that features a great room with 18' cathedral ceiling, a formal dining room with tray ceiling, a functional kitchen and an informal breakfast area separates the master suite from the secondary bedrooms for optimal privacy in this house plan.
The master suite is expanded by a dramatic cathedral ceiling and includes access to the 40'-wide and 5'-deep back porch, abundant closet space and a bath with enclosed toilet, garden tub and separate shower.

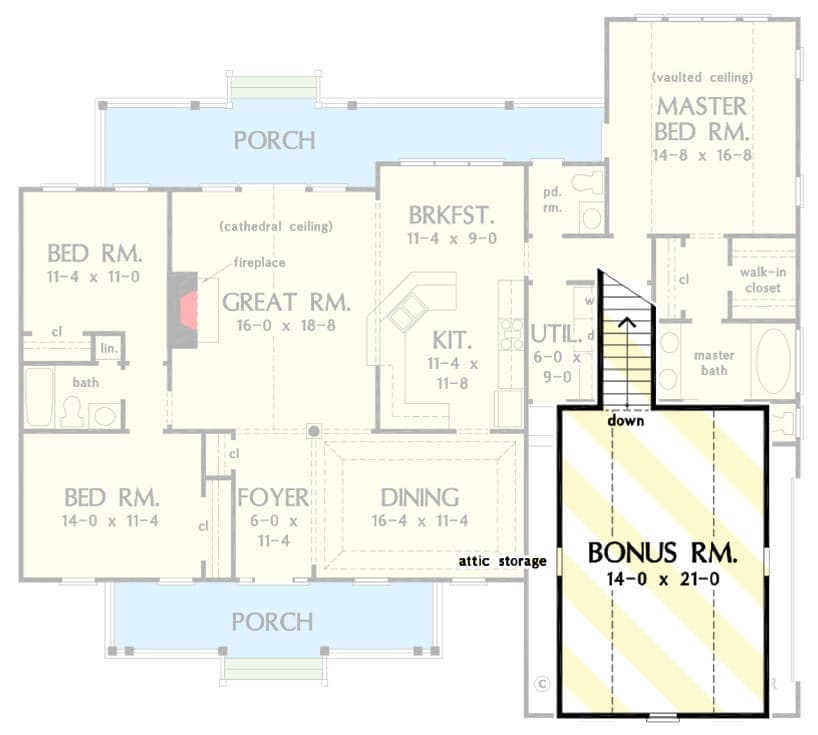

This house plan also features access to a versatile 359 square foot bonus room over the garage.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

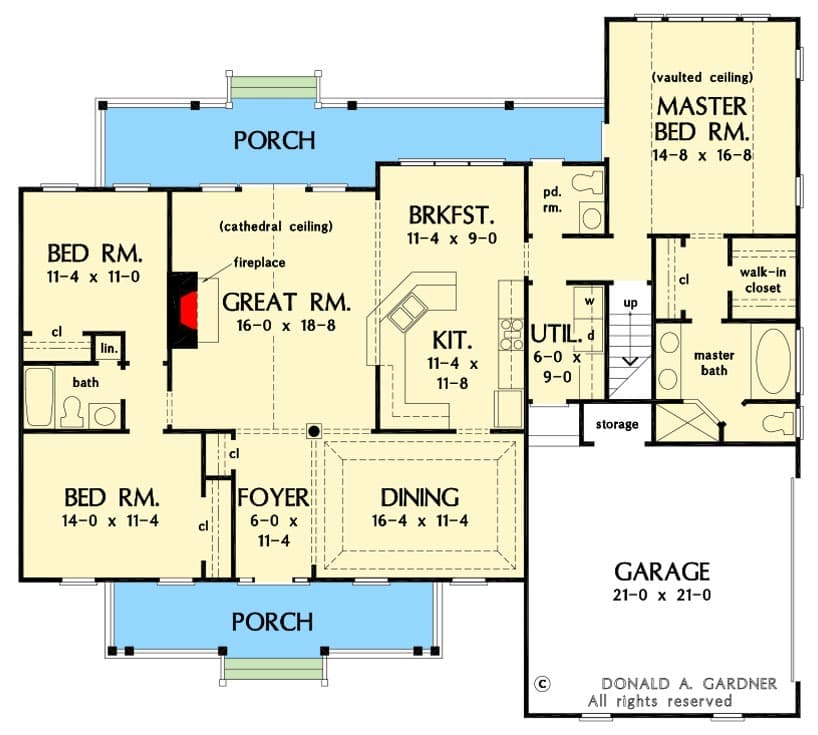

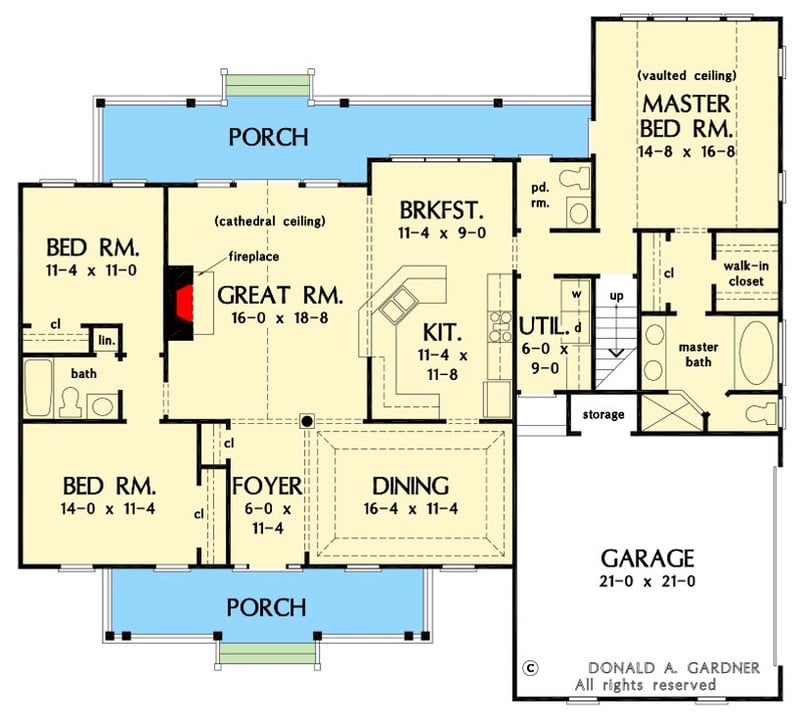

Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
