Three Bedroom Split Layout

Plan 11752HZ

  • 1,500

    HEATED S.F.

  • 3

    BEDS

  • 2

    BATHS

  • 1

    FLOORS

  • 2

    CAR GARAGE

About this Plan

  • The great room and kitchen help divide the floor plan giving you privacy in your master suite.
  • 10' ceilings in the great room and master bedroom.
  • The back covered porch and the open air patio give you two great spaces to enjoy
  • The roof is stick and has a 8:12 pitch.

See What's Included in this Plan...

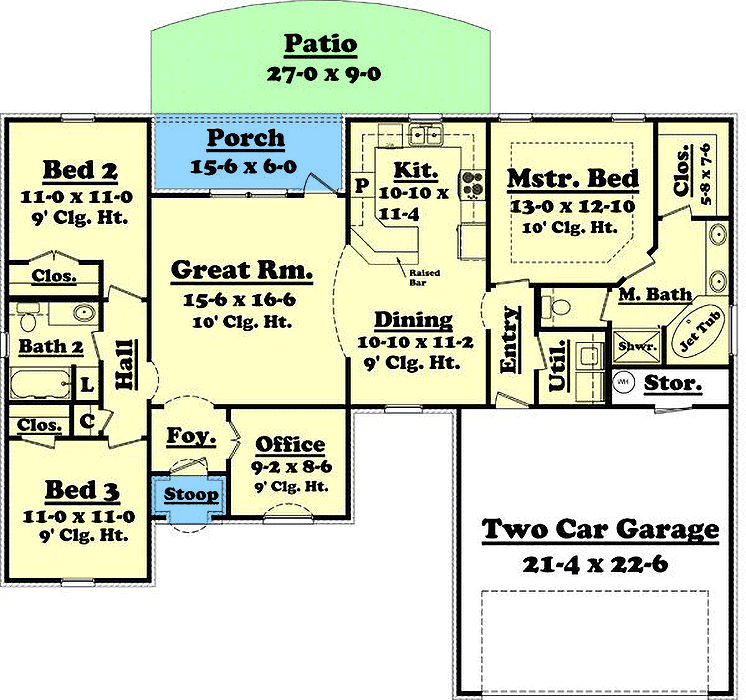

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,500 sq. ft.
  • 1st Floor: 1,500 sq. ft.
  • Storage: 31 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Dimensions

  • Width: 58' 0"
  • Depth: 46' 0"
  • Max ridge height: 21' 2"

Garage

  • Type: Attached
  • Area: 502 sq. ft.
  • Details: 2 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Type Height
Master Bedroom Tray 10' 0"
Great Room 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
