Three Gabled House Plan Designed with Outdoor Kitchen - 2315 Sq Ft
Heated S.F.
2,315
Beds
4
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • This 4 bed, 3 bath house plan gives you 2,315 square feet of heated living space with a 2-car 605 square foot garage. This well designed house plan has an open-concept layout and provides ample room for a growing family or those in need of additional space.
  • Built on a 60' lot, this house plan takes into account the standard 5' setbacks, ensuring it is suitable for a variety of residential areas.
  • The main living area effortlessly combines the kitchen, dining, and living spaces, offering a welcoming and inclusive atmosphere. Whether you are preparing meals in the well-appointed kitchen, enjoying family meals in the dining area, or relaxing in the living room, the open layout ensures seamless interaction between family members and guests.
  • The house plan also incorporates a study, providing a quiet and dedicated space for work, study, or pursuing hobbies. Whether you need a home office or a private area to unwind and read a book, the study offers a versatile room that can be tailored to suit your needs.
  • The bedrooms in this house plan are well-proportioned and offer privacy. The master suite boasts a private bathroom, creating a serene oasis for the homeowners. The additional bedrooms are spacious and share well-appointed bathrooms, ensuring every family member has their own private space.
  • One of the bedrooms has been specifically designed as a mother-in-law suite, providing a separate living area for extended family members or guests.
What's Included
  • Cover Sheet with general notes, rendering perspectives, sheet index

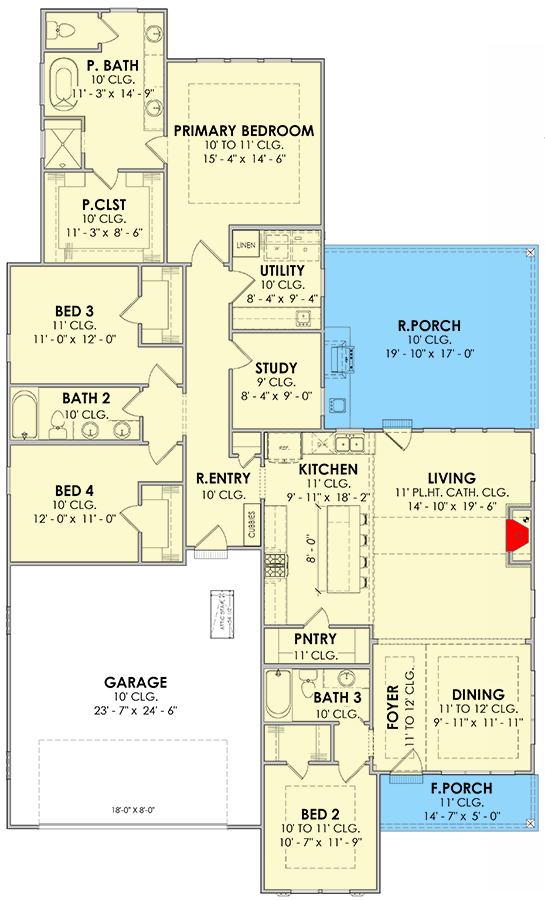

  • Detailed floor plan (includes window and door schedule, plumbing fixture locations, trim notes, floor notes etc.)
  • Roof plan (birds eye view of roof) with wall and foundation details
  • Foundation plan with details

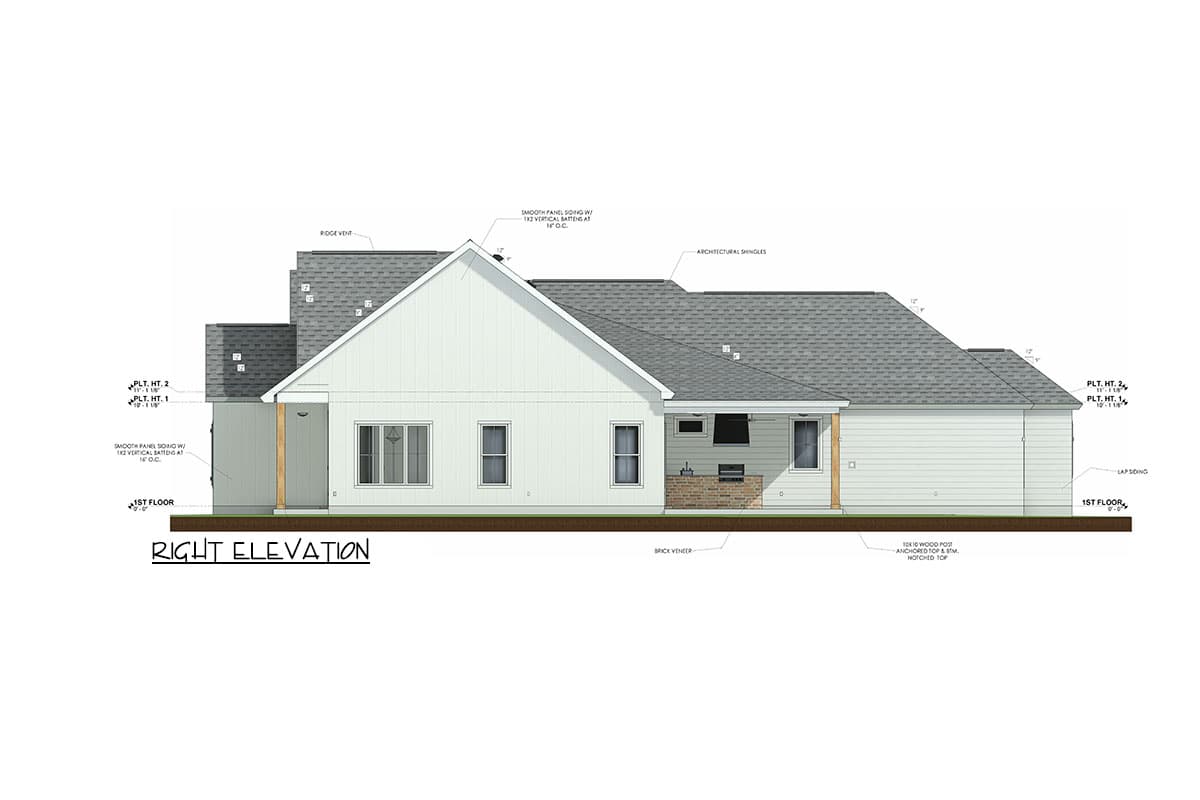

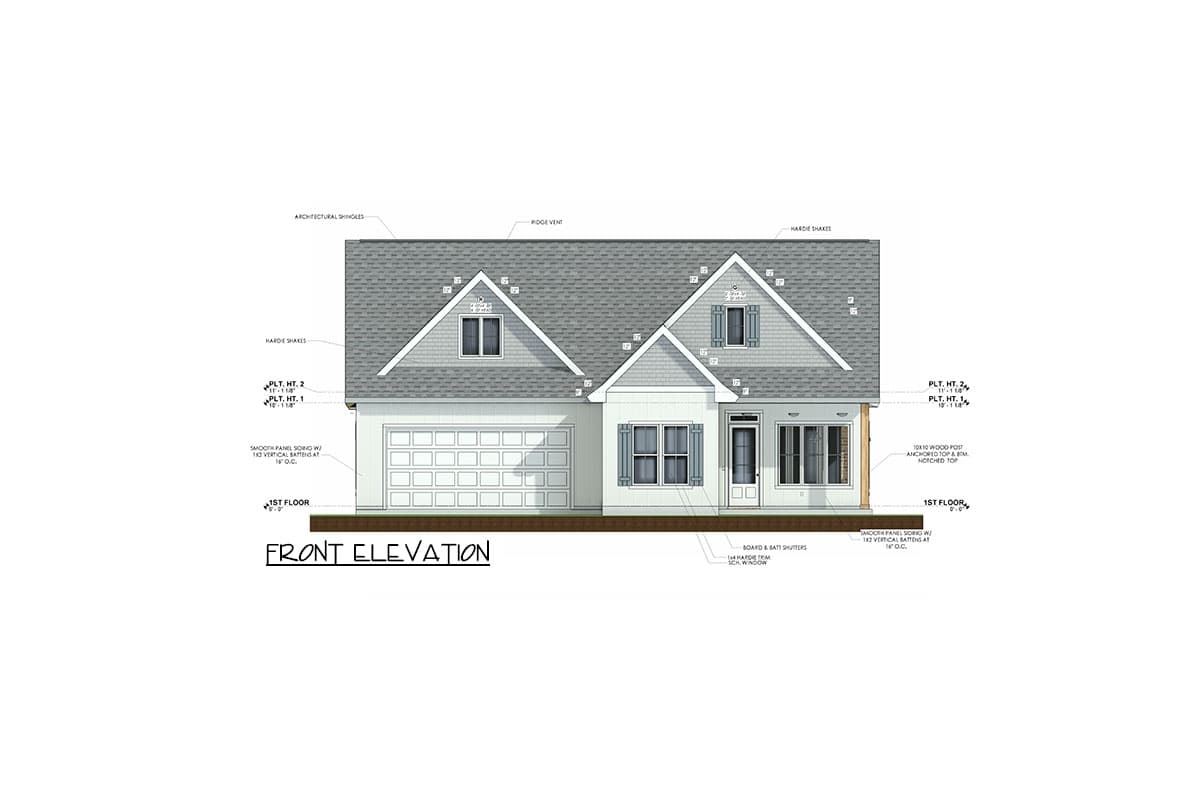

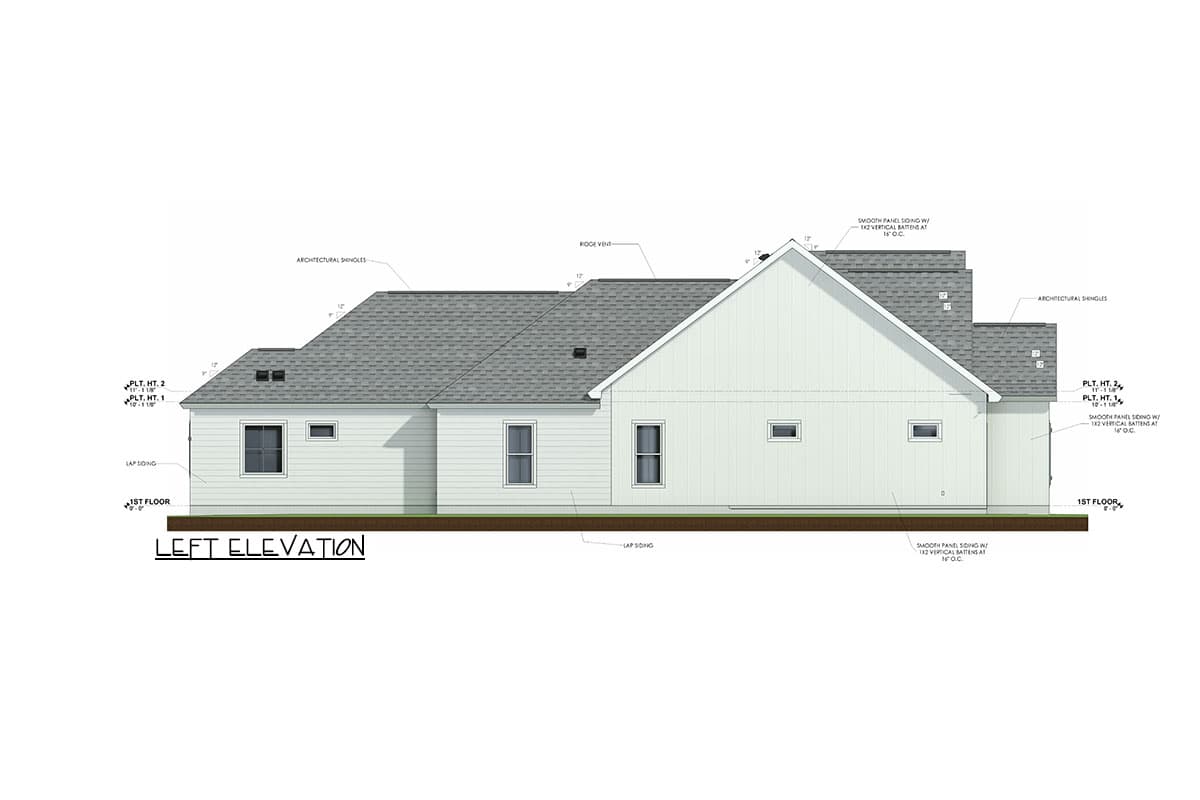

  • Four exterior views (front, rear, right, left)
  • Electrical layout plan included with some plans. Contact us for details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Three Gabled House Plan Designed with Outdoor Kitchen - 2315 Sq Ft

  • 2,315

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,315 sq. ft.
  • 1st Floor: 2,315 sq. ft.

Dimensions

  • Width: 50' 3"
  • Depth: 83' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 605 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" Living 11' 0"
