Plan 39236ST

Three Gables and Vaulted Great Room

Heated S.F.
2,336
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 39236ST

Main Level
Main Level
Basement
Basement

Plan 39236ST

M-F 9am-5pm EST |

1-203-761-8500

Main Level

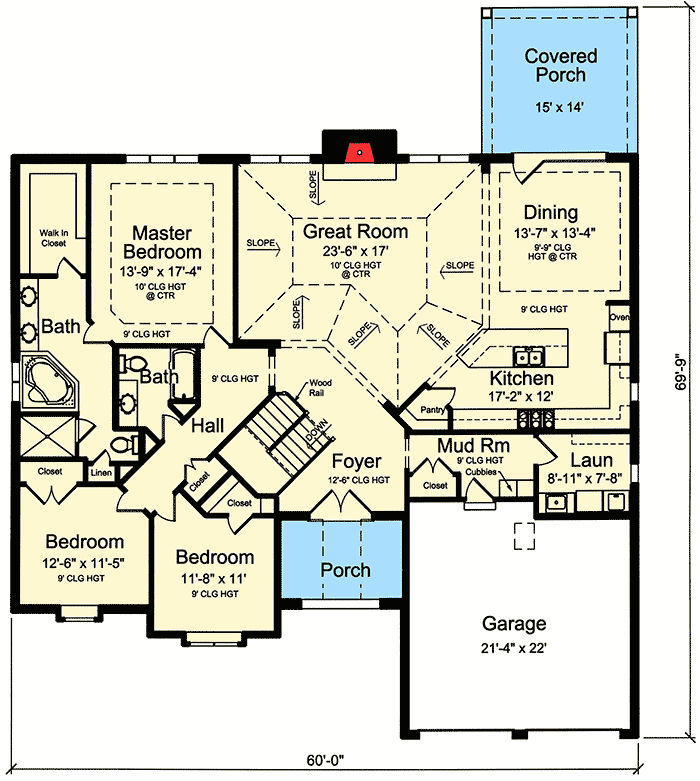

Plan 39236ST: Three Gables and Vaulted Great Room - Floor Plan - Main Level - Traditional

Basement

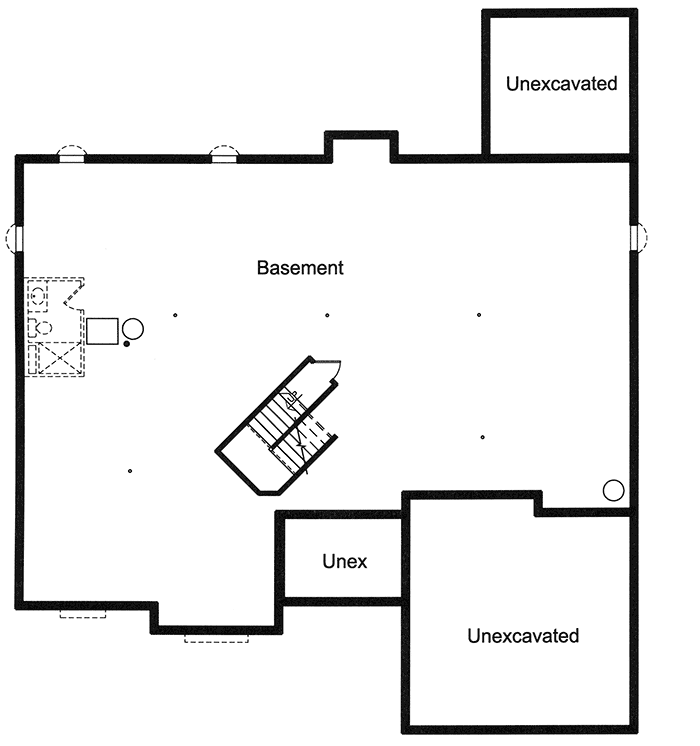

Plan 39236ST: Three Gables and Vaulted Great Room - Floor Plan - Basement - Traditional

Plan Details

  • Triple gables and a brick and stone faзade decorate the exterior of this one level home plan.
  • Angled stairs are an appealing element of the floor plan and take you to the unfinished basement.
  • The floor plan has an open layout with the dining room, great room and kitchen creating a large living space.
  • Three bedrooms are clustered to the left of the plan including the large master with tray ceiling and walk-in closet.
  • A mud room and a laundry room are nice additions as is the covered porch off the great room.

What's Included

  • General notes and specifications

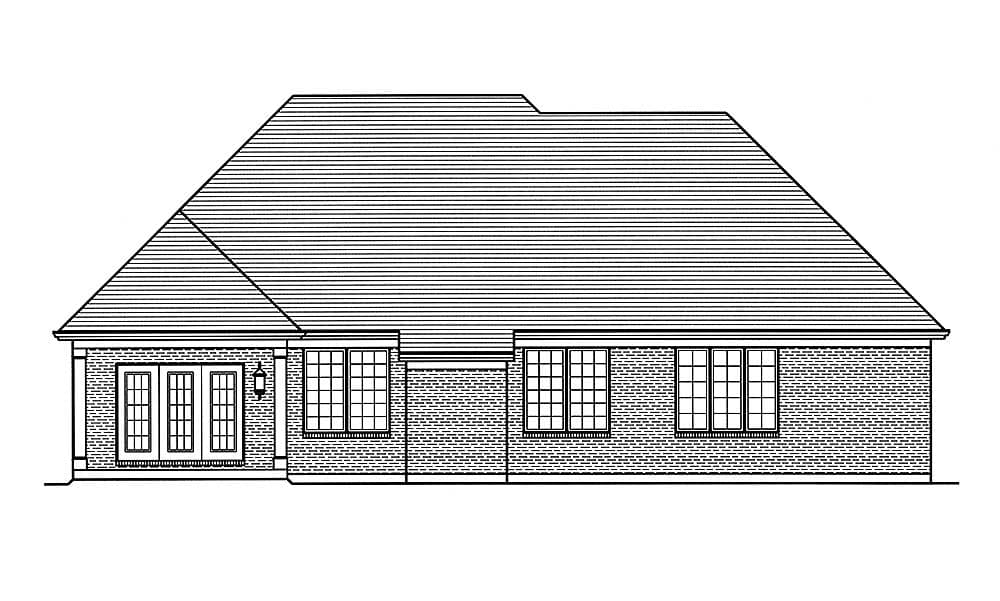

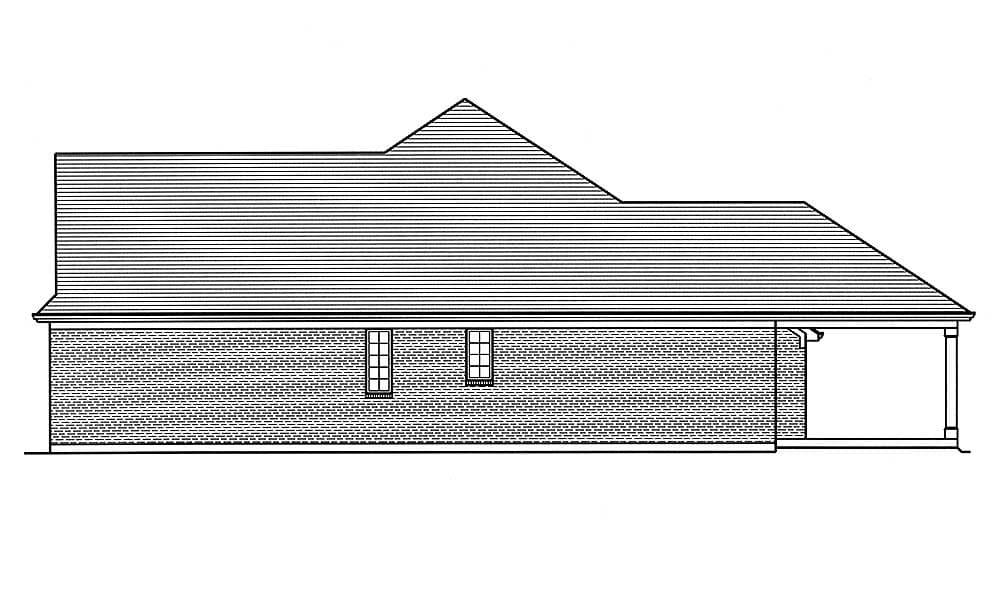

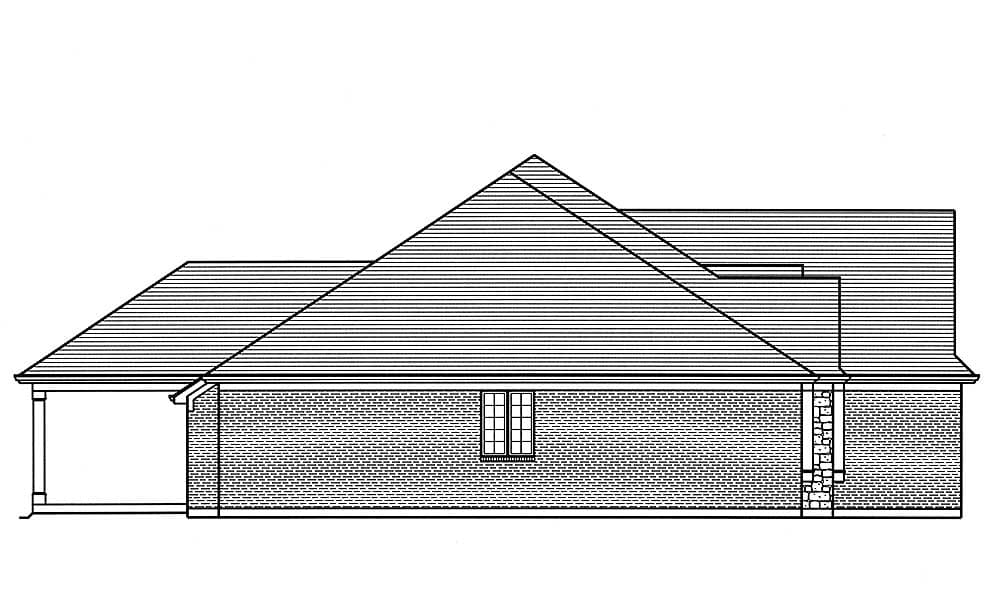

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,336 sq. ft.

1st Floor

2,336 sq. ft.

Porch, Front

90 sq. ft.

Porch, Rear

210 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

69' 9"

Max Ridge Height

26' 1"

Garage

Type

Attached

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,336 sq. ft.

1st Floor

2,336 sq. ft.

Porch, Front

90 sq. ft.

Porch, Rear

210 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

69' 9"

Max Ridge Height

26' 1"

Garage

Type

Attached

Area

454 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
