Three (or Four) Bedroom Craftsman

Plan 92085VS

  • 2,105

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Craftsman home plan comes in this 3 bedroom and an alternate 4 bedroom version. Both plans come with details for a lower level - a real plus - and you can also order in a slab or crawlspace foundation.
  • A simple change in ceiling height defines the border between the living room with fireplace and built-ins and the dining room. A clever feature is the opening there to the second floor.
  • The home flows to the kitchen and breakfast nook beyond. A deck off the back is a real plus.
  • The master suite features a boxed tray ceiling. Your privacy is ensured since this is the only bedroom on the main floor. You'll appreciate having laundry on this floor.
  • Upstairs you'll find two bedrooms (one vaulted) plus storage and future expansion space.
  • Related Plan: Gain a guest room upstairs and a basement plan with house plan 92093VS.

All plans include:

  • Foundation plan
  • Floor plans with electrical layouts

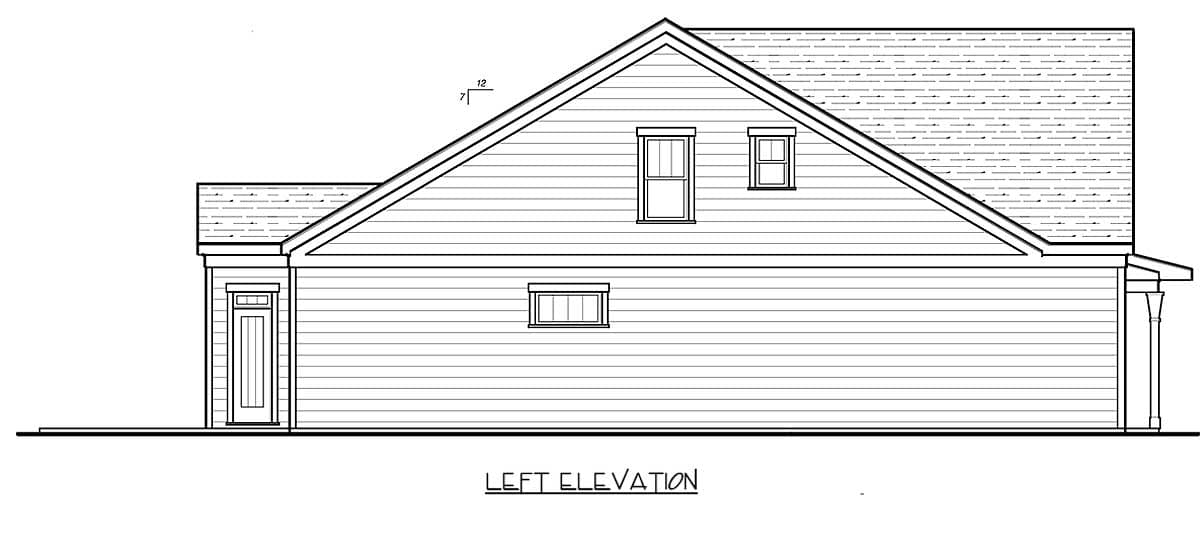

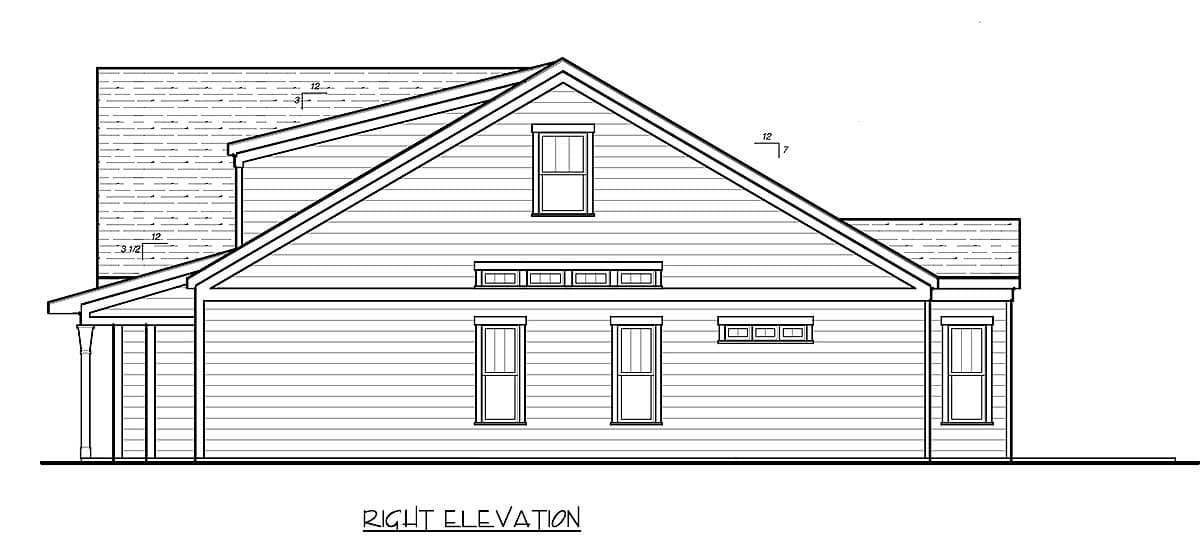

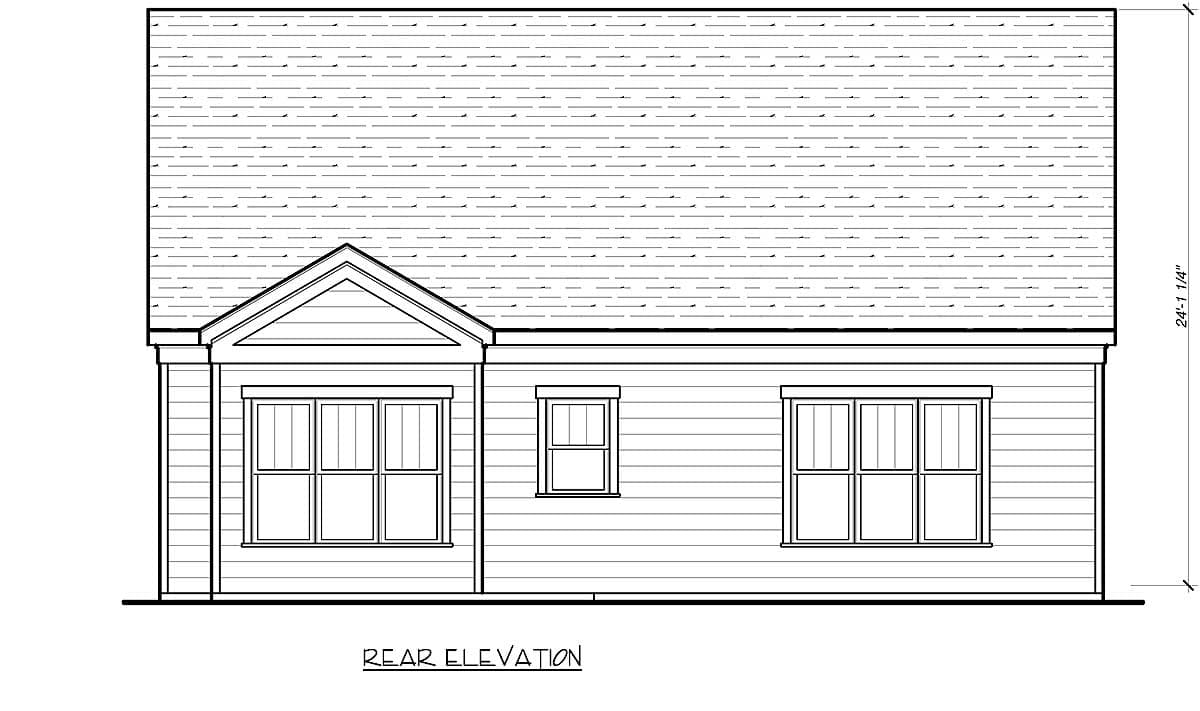

  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

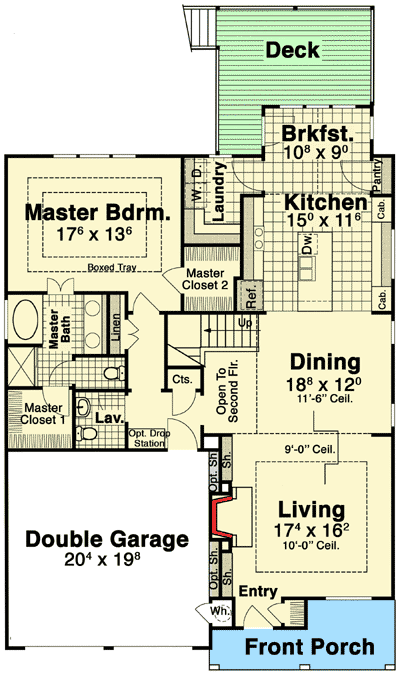

Three (or Four) Bedroom Craftsman - 92085VS floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

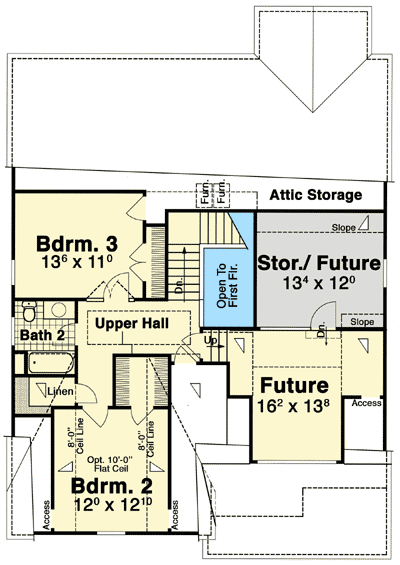

Three (or Four) Bedroom Craftsman - 92085VS floor plan - 2nd Floor

Three (or Four) Bedroom Craftsman

  • 2,105

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,105 sq. ft.
  • 1st Floor: 1,537 sq. ft.
  • 2nd Floor: 568 sq. ft.

Dimensions

  • Width: 39' 6"
  • Depth: 67' 0"
  • Max ridge height: 23' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
