Plan 55177BR

Three Porches and Energy Savings

Heated S.F.
1,928
Beds
2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 55177BR

Main Level
Main Level

Plan 55177BR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

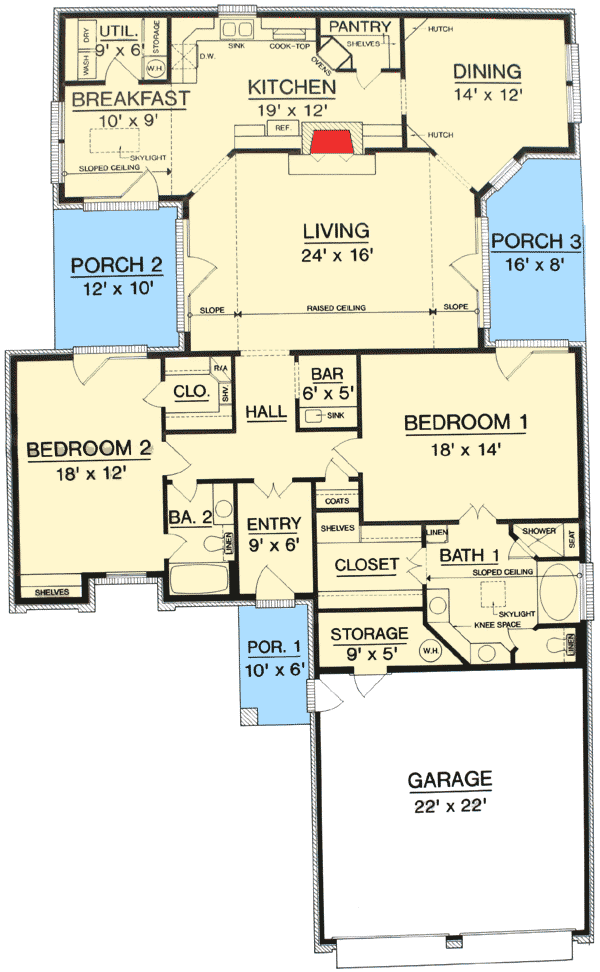

Plan 55177BR: Three Porches and Energy Savings - Floor Plan - Main Level - Southern

Plan Details

  • Designed for narrow lots, this triple porch home plan has energy-saving 2x6 exterior walls, insulated doors and windows, 12" attic insulation and a host of other features to help cut down on your energy bills.
  • The interior layout is superb with two large bedrooms each with a their own baths.
  • The kitchen is a cook's delight and features a large walk-in pantry and is flanked by the informal breakfast nook and the formal dining room.
  • The living room has access porches on each side and a brick wood burning fireplace. A raised ceiling with exposed beams adds to the character of this space.
  • NOTE: Please allow 30 days for CAD delivery.

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,928 sq. ft.

1st Floor

1,928 sq. ft.

Storage

48 sq. ft.

Porch, Combined

300 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

76' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Special Features

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,928 sq. ft.

1st Floor

1,928 sq. ft.

Storage

48 sq. ft.

Porch, Combined

300 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

76' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Special Features

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
