Three Stairways

Plan 59511ND

  • 4,978

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • No fewer than three stairways connect the main floor with the two supplemental levels. The master suite has a private stairway to the enormous office overhead, and a convenient kitchen stairway ascends the nearly 40-foot game room that completes the second floor.
  • The expandable lower level contains a huge garage, storage area, bath and storm shelter.
  • The three secondary bedrooms are clustered on the main floor, with two baths.
  • Related Plans: For an alternate layout, see house plan 5921ND.
  • For an alternate version with two upstairs bedrooms, see house plan 59408ND

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Three Stairways

  • 4,978

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,095
  • 5 Sets $1,195
  • CAD $2,390
  • View all purchase option online

About This Plan

  • No fewer than three stairways connect the main floor with the two supplemental levels. The master suite has a private stairway to the enormous office overhead, and a convenient kitchen stairway ascends the nearly 40-foot game room that completes the second floor.
  • The expandable lower level contains a huge garage, storage area, bath and storm shelter.
  • The three secondary bedrooms are clustered on the main floor, with two baths.
  • Related Plans: For an alternate layout, see house plan 5921ND.
  • For an alternate version with two upstairs bedrooms, see house plan 59408ND

Floor Plans

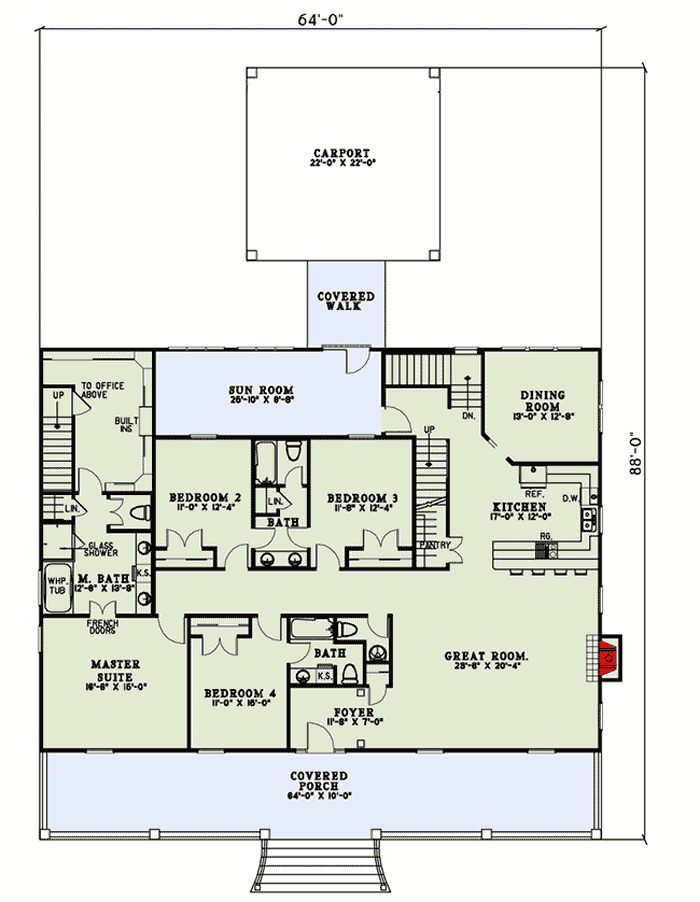

  • Main Level

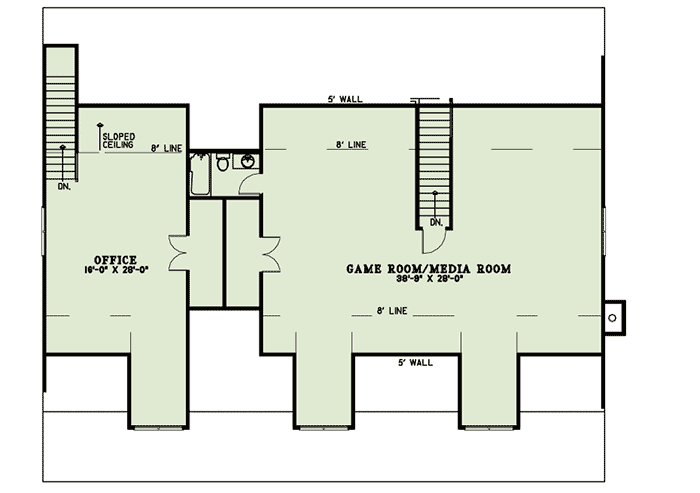

  • Second Level

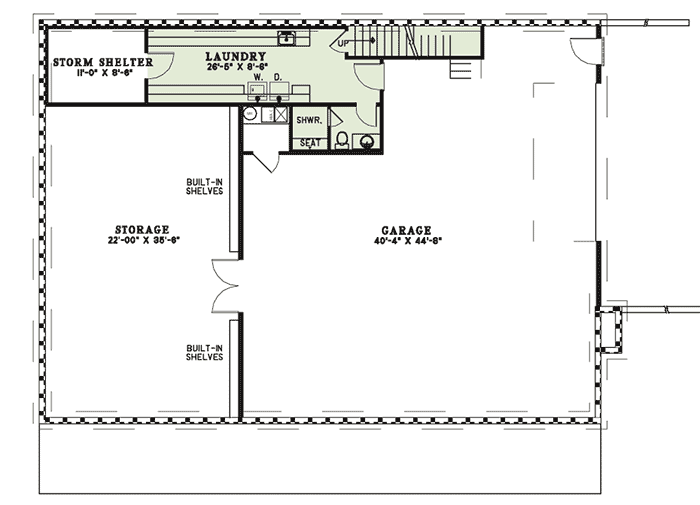

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,978 sq. ft.
  • Lower Level: 187 sq. ft.
  • 1st Floor: 2,944 sq. ft.
  • 2nd Floor: 1,847 sq. ft.
  • Porch, Combined: 724 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 88' 0"
  • Max ridge height: 24' 10"

Garage

  • Type: Drive Under
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
