Timeless Cottage with 2- or 3-Bed Flexibility

Plan 710142BTZ

  • 1,644

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

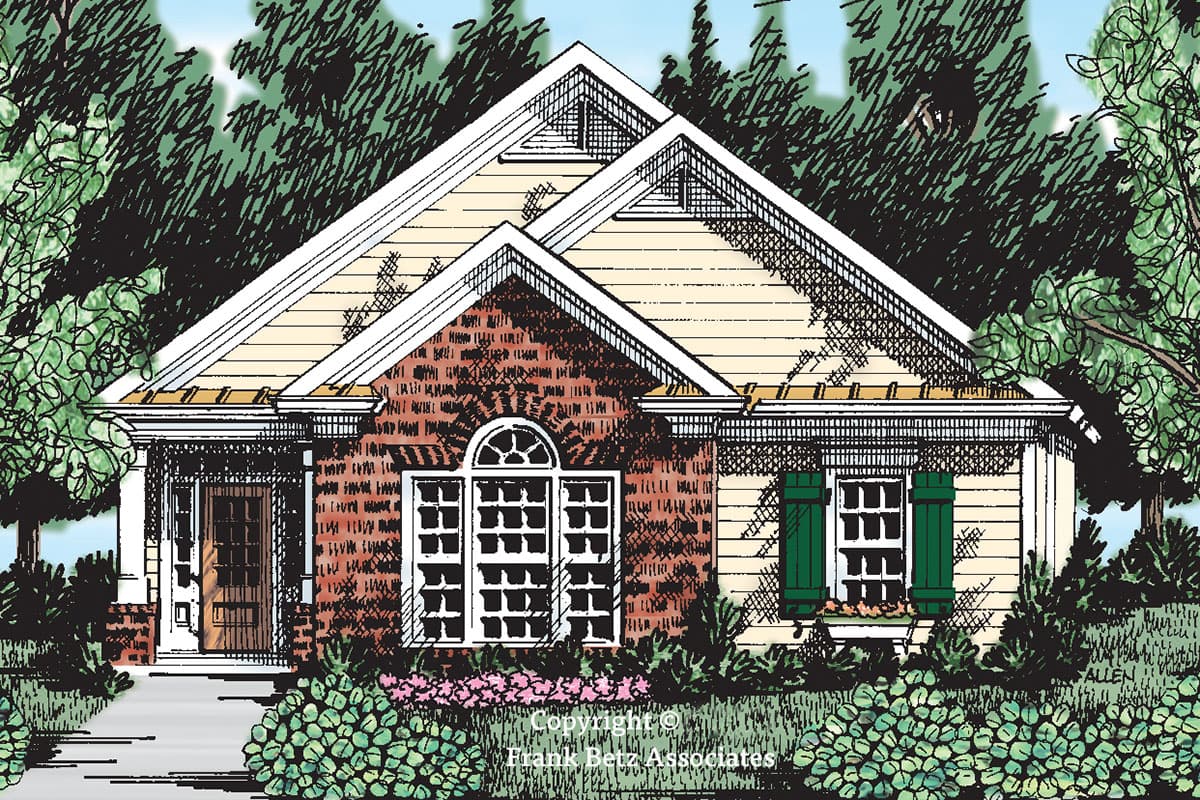

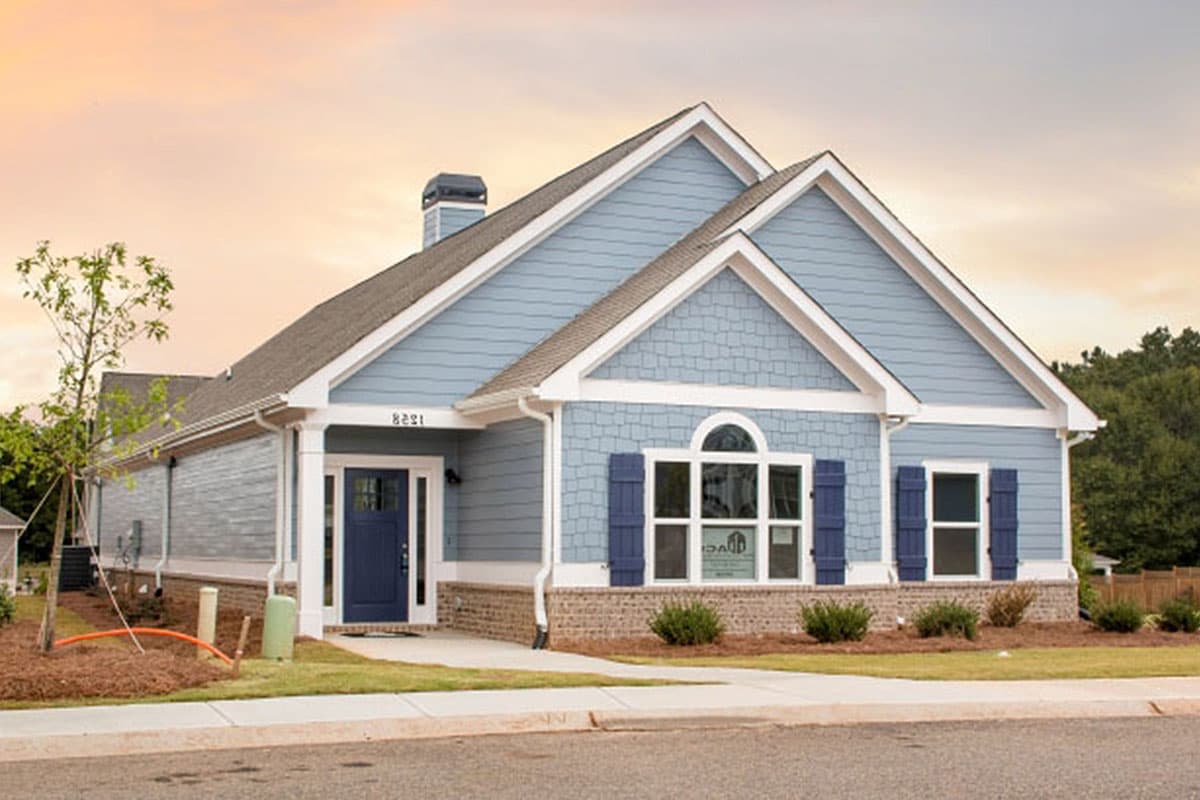

  • A timeless combination of clapboard siding and brick make this narrow-lot house plan welcome in any neighborhood. Its unique foyer – with a corner coat closet, decorative columns, and art niche, make this design interesting from the start.

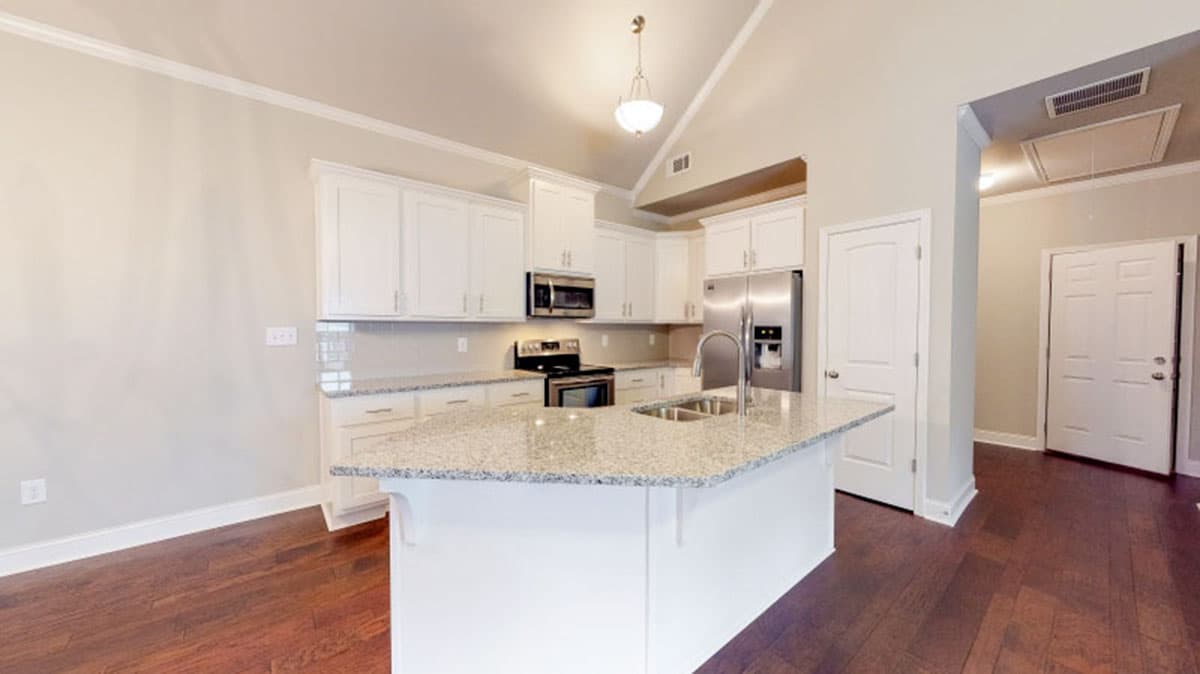

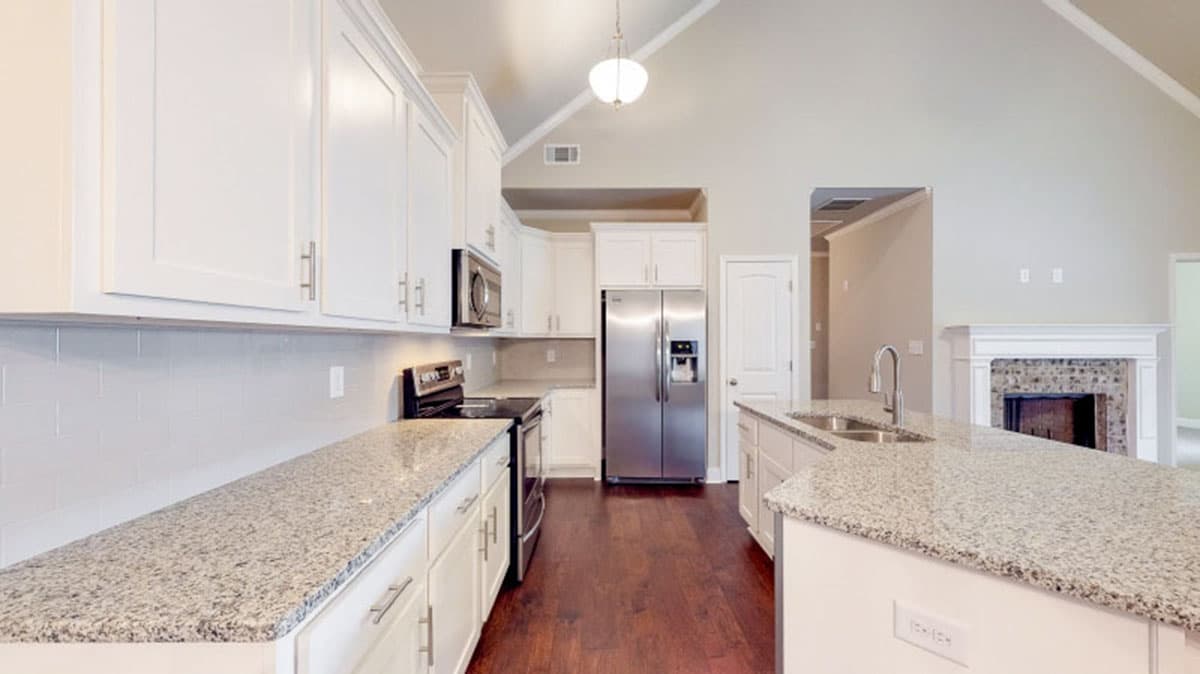

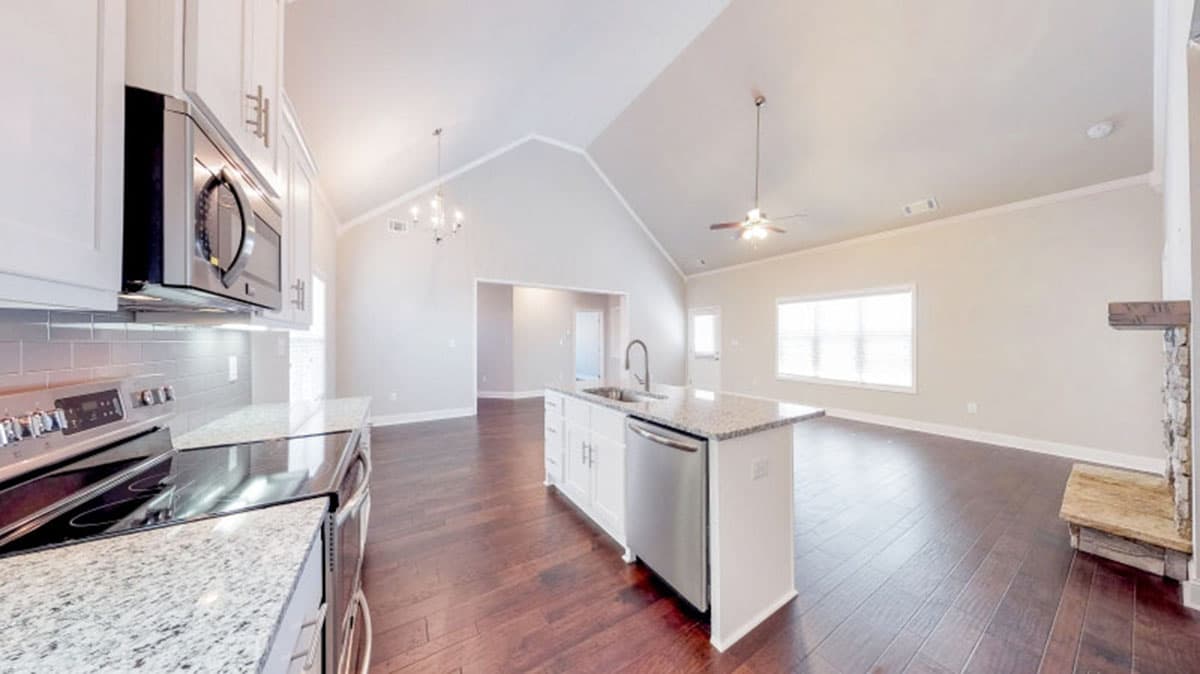

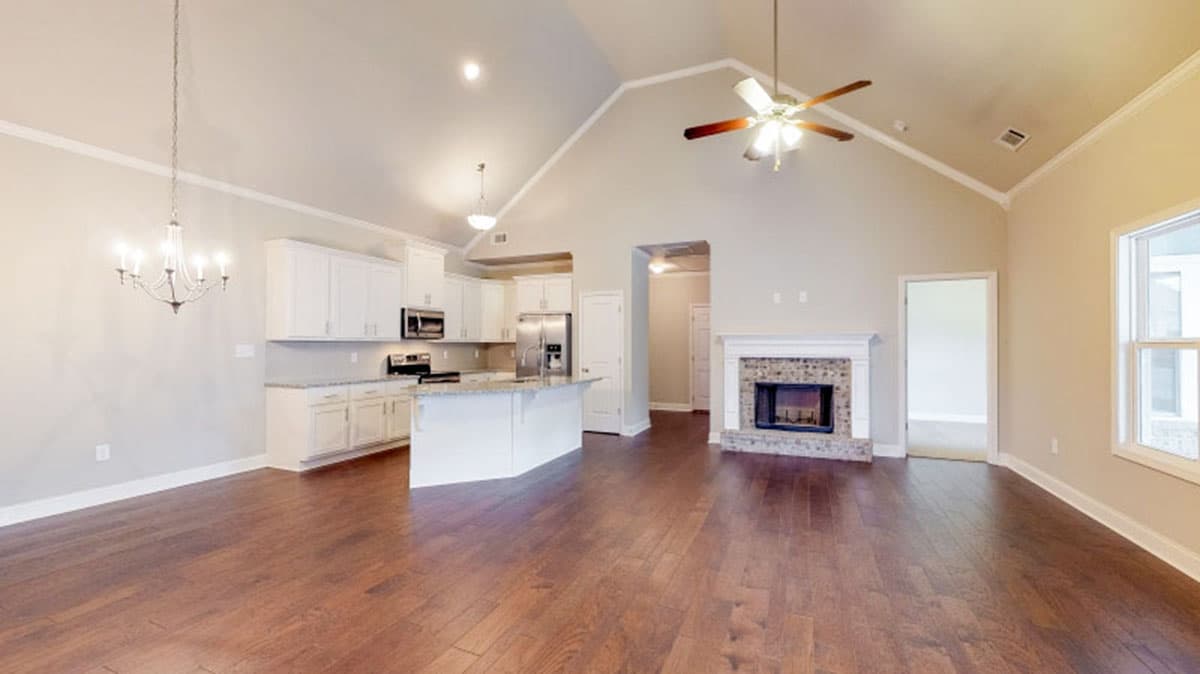

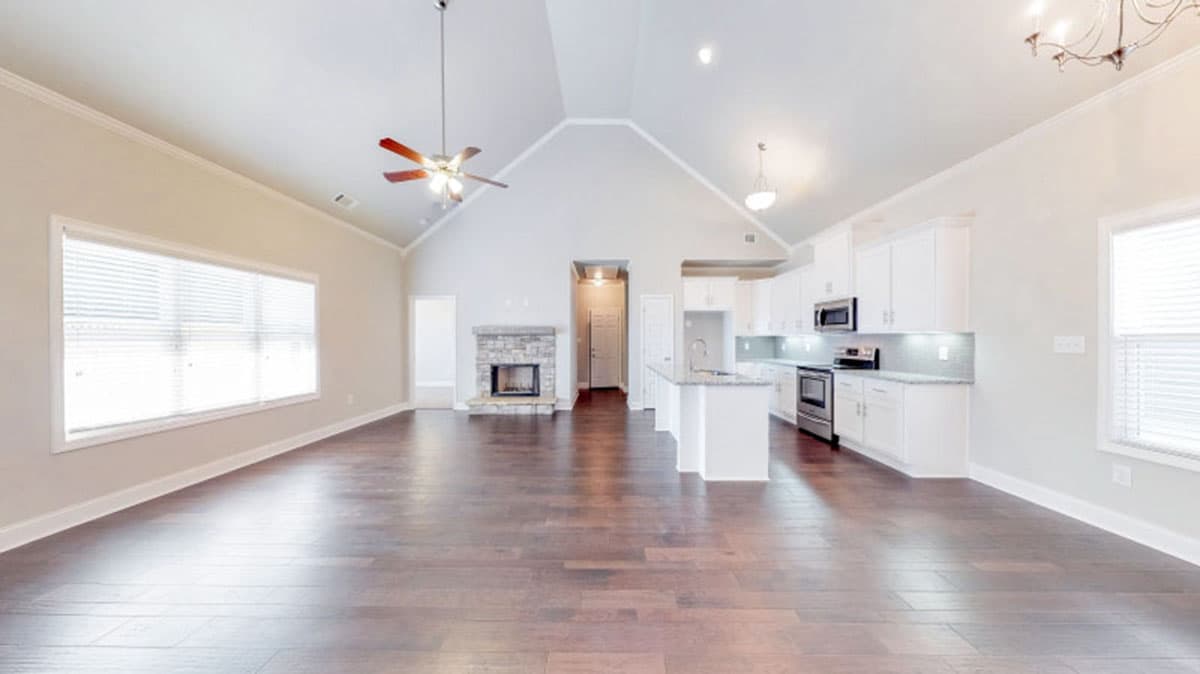

  • A vaulted ceiling canopies the kitchen, dining room and family room enhancing the spaciousness of all three areas.
  • The television niche over the fireplace creates more space for furniture arrangement in the family room.
  • A third bedroom can be easily converted into a study if office space is a necessity of the homeowner. A coat closet and laundry room are placed just off the garage.
  • Related Plans: Get alternate versions with house plans 710143BTZ, 710144BTZ and 710145BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

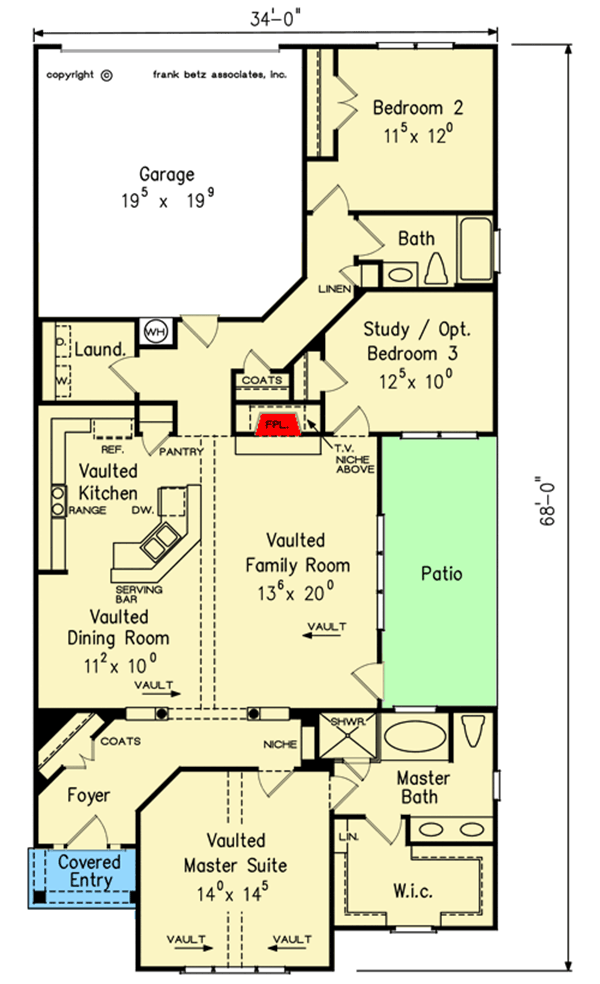

Timeless Cottage with 2- or 3-Bed Flexibility - 710142BTZ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,644 sq. ft.
  • 1st Floor: 1,644 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 34' 0"
  • Depth: 68' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 391 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Timeless Cottage with 2- or 3-Bed Flexibility

  • 1,644

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets + PDF $1,575
  • PDF - Unlimited Build $1,595
  • PDF - Unlimited Build + 5-sets $1,875
  • CAD - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • A timeless combination of clapboard siding and brick make this narrow-lot house plan welcome in any neighborhood. Its unique foyer – with a corner coat closet, decorative columns, and art niche, make this design interesting from the start.
  • A vaulted ceiling canopies the kitchen, dining room and family room enhancing the spaciousness of all three areas.
  • The television niche over the fireplace creates more space for furniture arrangement in the family room.
  • A third bedroom can be easily converted into a study if office space is a necessity of the homeowner. A coat closet and laundry room are placed just off the garage.
  • Related Plans: Get alternate versions with house plans 710143BTZ, 710144BTZ and 710145BTZ.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,644 sq. ft.
  • 1st Floor: 1,644 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 34' 0"
  • Depth: 68' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 391 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Stick
Plan 710142BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710142BTZ
|
Need Help? 800-854-7852
|
Plan 710142BTZ
