Plan 560019TCD

Tiny Home Plan Under 600 Square Feet

Name: Plan 560019TCD: Tiny Home Plan Under 600 Square Feet
Brand: Architectural Designs
SKU: 560019TCD
Price: 487.69 USD
Availability: InStock

Heated S.F.

576

Beds

Baths

Stories

Floor Plan

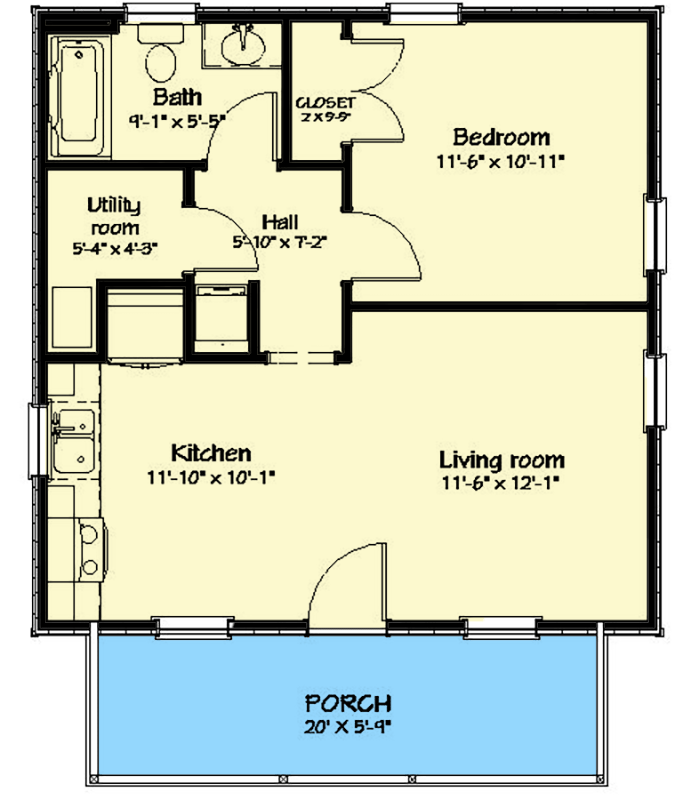

Main Level

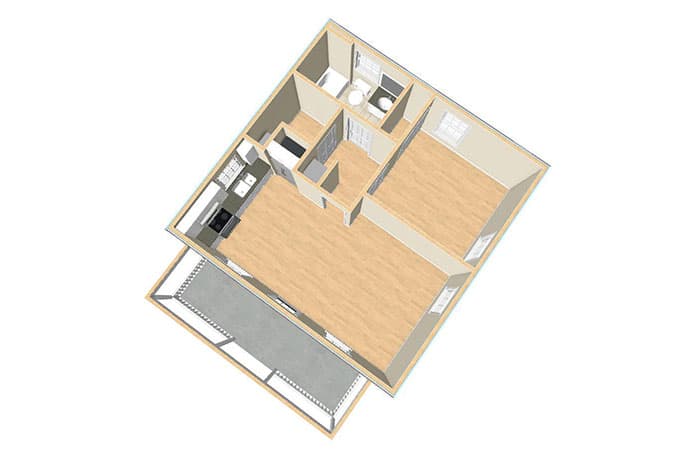

First Floor - Birdseye View

Plan Details

This one-bed home plan, just 576 square feet, is perfect as an ADU or a vacation home. It can even be built as a year-round home with a mechanical room and laundry inside, it has everything you need.
An entry porch spans the entire width of the home with the front door centered on the porch.
The living room and kitchen are open to each other and give you an open feel.
The bedroom is in back and the closet gives you ample storage.
The bathroom, utility room and laundry complete this tiny home plan.

What's Included

Cover Sheet - Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.
Foundation Plan - Foundation plan in ¼" scale, 3D view, construction details and notes.
Floor Plan(s) - Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.
Ceiling & Roof Framing - 2D and 3D views of framing.
Framing Details - Generic wall, ceiling and roof framing details. Lumber and framing notes.
Elevations - Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.
Cross Sections - Cross section views with framing details.
Kitchen Plan - Kitchen and bath plans, elevations and schedule.
Electrical Plan - Electric layout plan, schedule and notes.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
