Tiny House Plan with ADU Potential and a Partial Wraparound Porch

Plan 560008TCD

  • 600

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • This 600 square foot one-bed cottage house plan has a partial wraparound porch with shingles in the gables and clapboard around the four sides.
  • Step inside and its open layout reveals itself. The living room and kitchen ceilings are raised to 10', giving you a great sense of volume.
  • The bedroom and bathroom line the back of the home. A stackable washer/dryer is tucked out of the way in a closet.
  • This home design can be built as a vacation home or as an ADU or built as a downsizing solution.

This plan set includes the following items:

Cover Sheet
Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.

Foundation Plan
Foundation plan in ¼" scale, 3D view, construction details and notes.

Floor Plan(s)
Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.

Ceiling & Roof Framing
2D and 3D views of framing.

Framing Details
Generic wall, ceiling and roof framing details. Lumber and framing notes.

Elevations
Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.

Cross Sections
Cross section views with framing details.

Kitchen Plan
Kitchen and bath plans, elevations and schedule.

Electrical Plan
Electric layout plan, schedule and notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

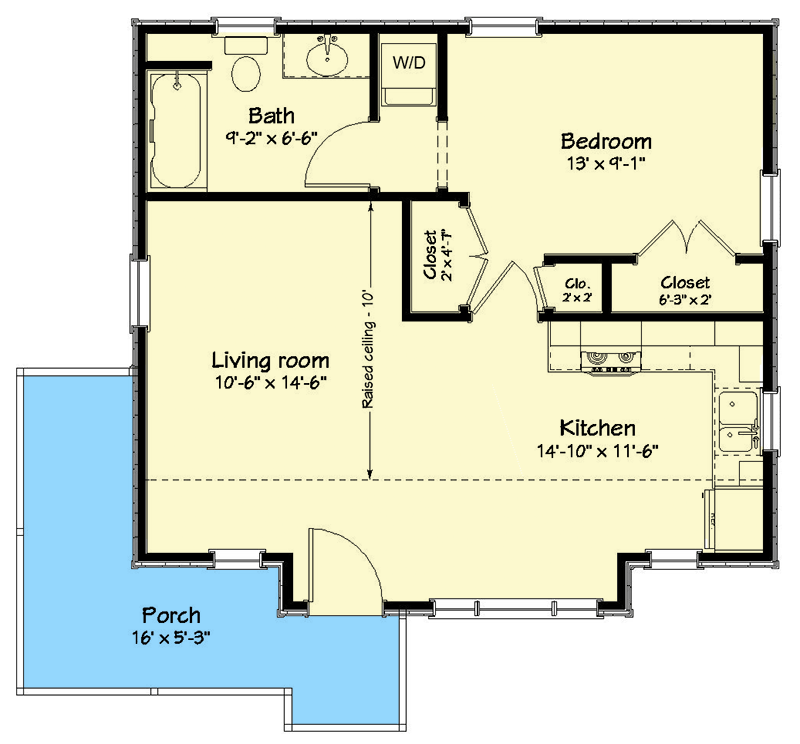

Tiny House Plan with ADU Potential and a Partial Wraparound Porch - 560008TCD floor plan - Main Level

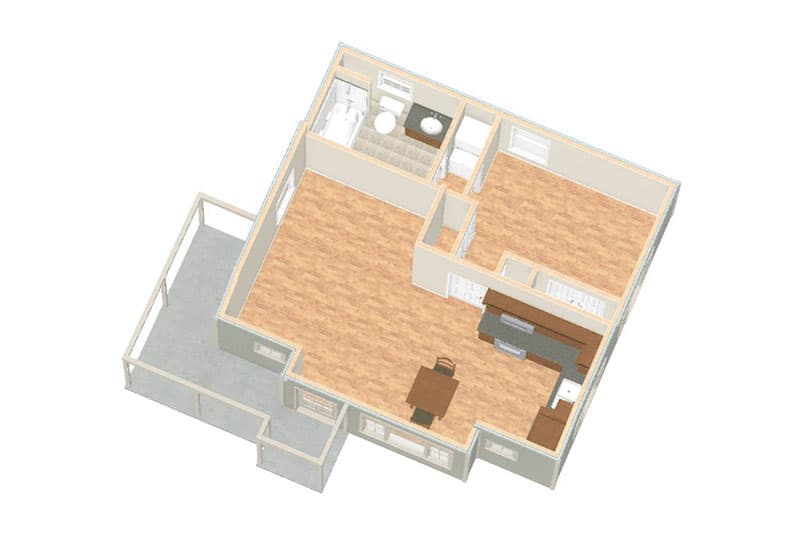

First Floor - Birdseye View

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Tiny House Plan with ADU Potential and a Partial Wraparound Porch - 560008TCD floor plan - First Floor - Birdseye View

Plan details

Square Footage Breakdown

  • Total Heated Area: 600 sq. ft.
  • 1st Floor: 600 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 31' 0"
  • Depth: 29' 0"
  • Max ridge height: 16' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Kitchen 10' 0"
Living Room 10' 0"

Roof Details

  • Primary Pitch: 8 on 12

Architectural Style

Special features

Plan Collections

Tiny House Plan with ADU Potential and a Partial Wraparound Porch

  • 600

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $675
  • CAD - Single-Build $1,475
  • View all purchase option online

About This Plan

  • This 600 square foot one-bed cottage house plan has a partial wraparound porch with shingles in the gables and clapboard around the four sides.
  • Step inside and its open layout reveals itself. The living room and kitchen ceilings are raised to 10', giving you a great sense of volume.
  • The bedroom and bathroom line the back of the home. A stackable washer/dryer is tucked out of the way in a closet.
  • This home design can be built as a vacation home or as an ADU or built as a downsizing solution.

Floor Plans

  • Main Level

  • First Floor - Birdseye View

Plan Details

Square Footage Breakdown

  • Total Heated Area: 600 sq. ft.
  • 1st Floor: 600 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 31' 0"
  • Depth: 29' 0"
  • Max ridge height: 16' 4"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
Plan 560008TCD
View this and more for this plan by visiting www.architechtecturaldesigns.com/560008TCD
|
