Tiny Lodge Plan

Plan 68503VR

  • 306

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • Lots of windows on all four side brighten this tiny lodge room and bring in the views.
  • The vaulted and beamed ceiling creates a dramatic effect.
  • It works well as a party room, arts and crafts studio or man cave.
  • The big front deck lets you spend time outdoors too.

This plan set has the following details:

Cover Page

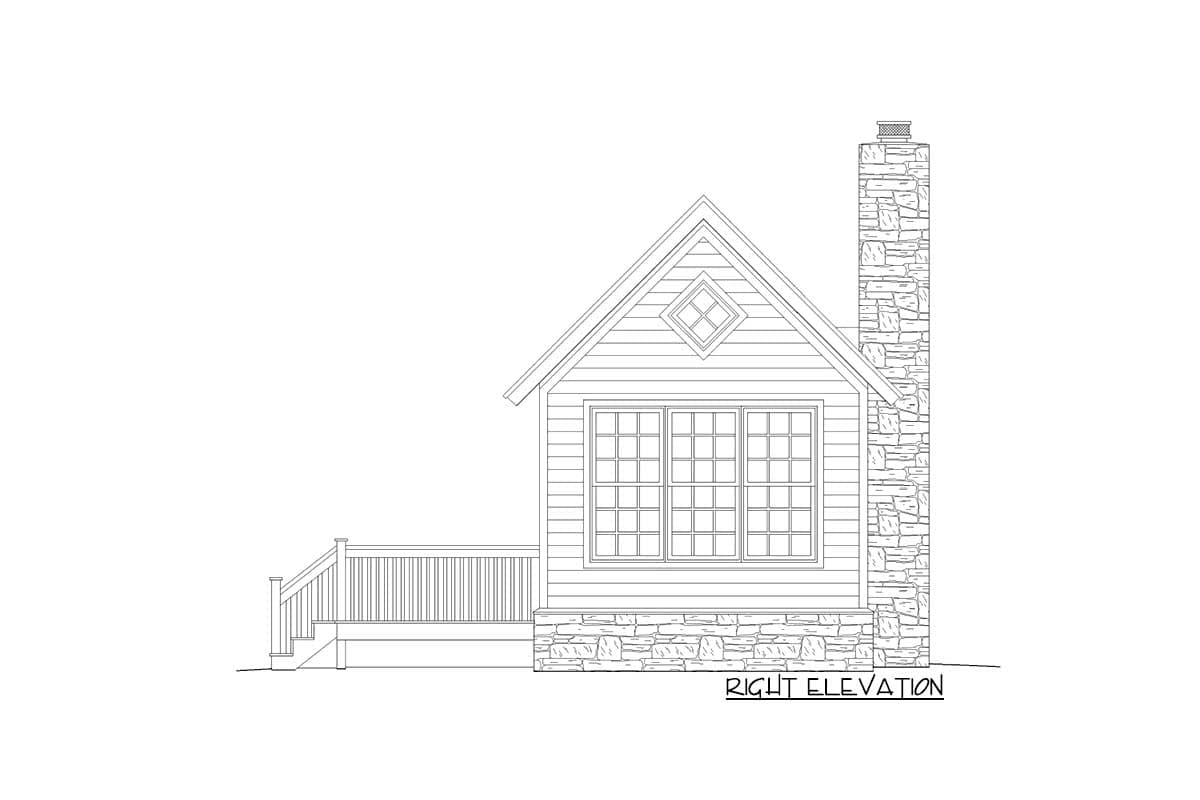

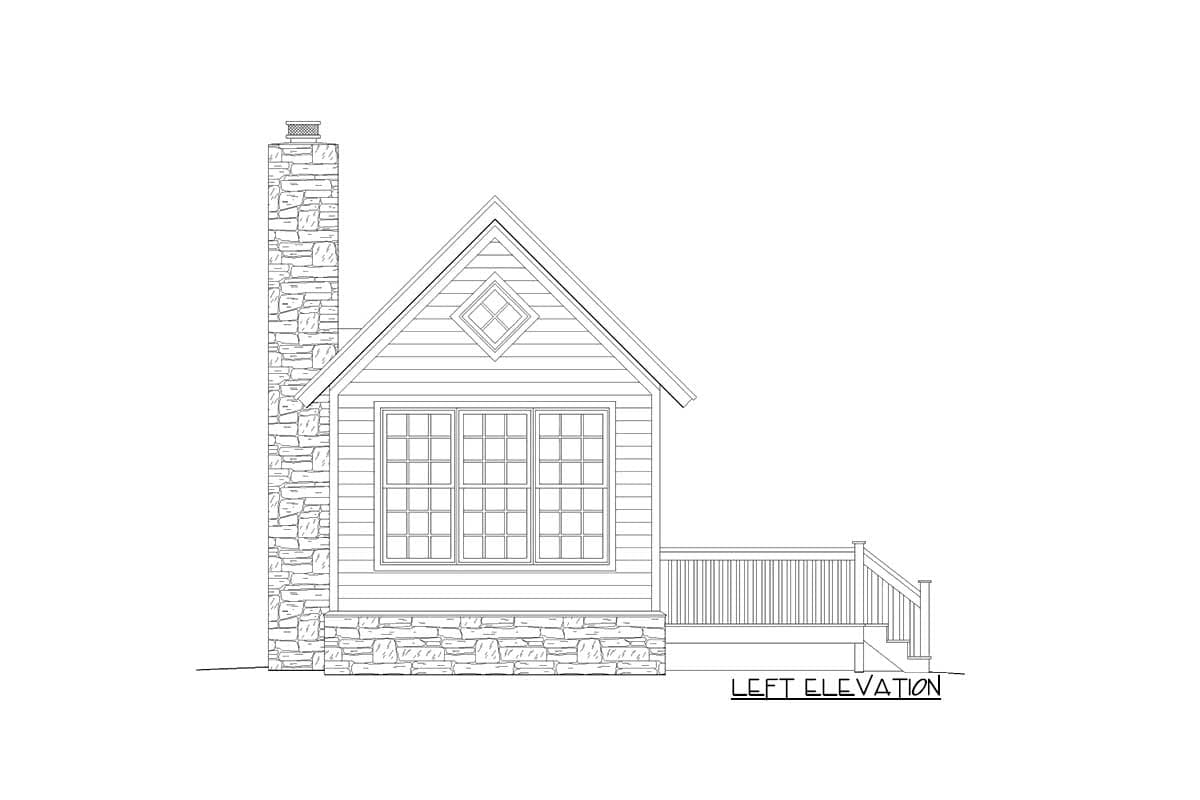

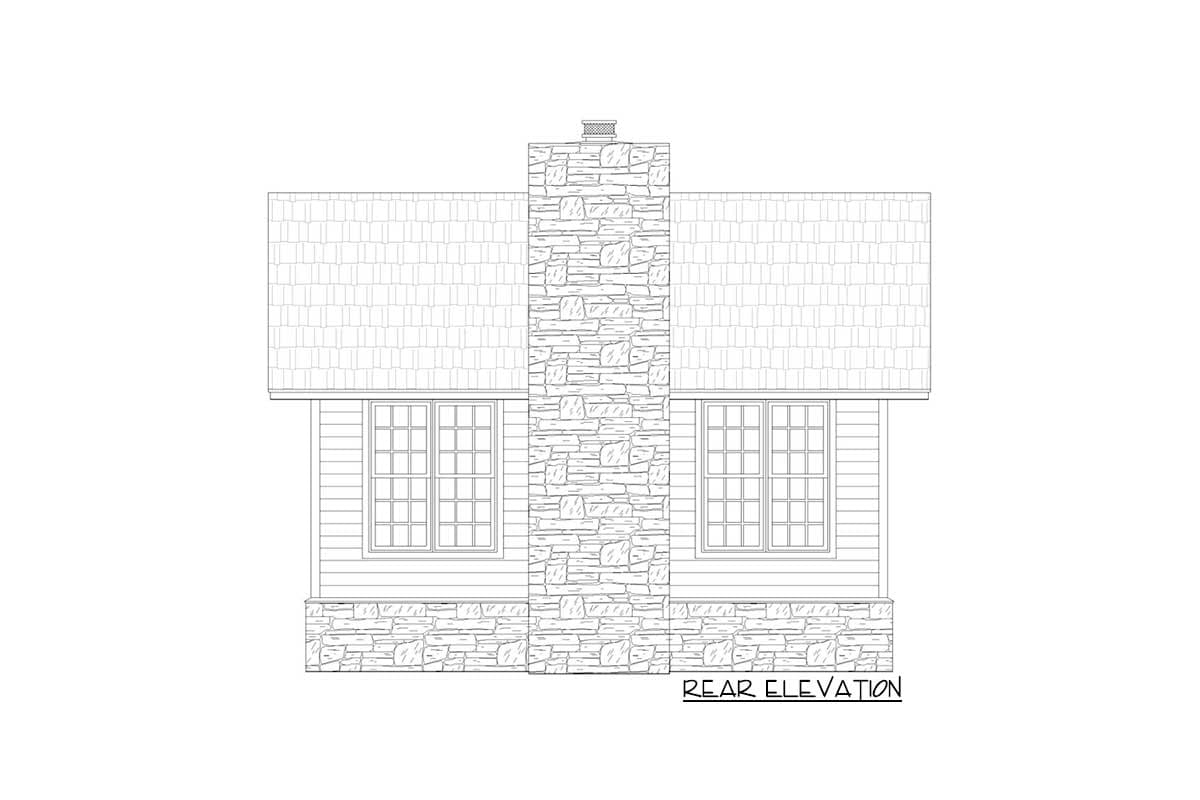

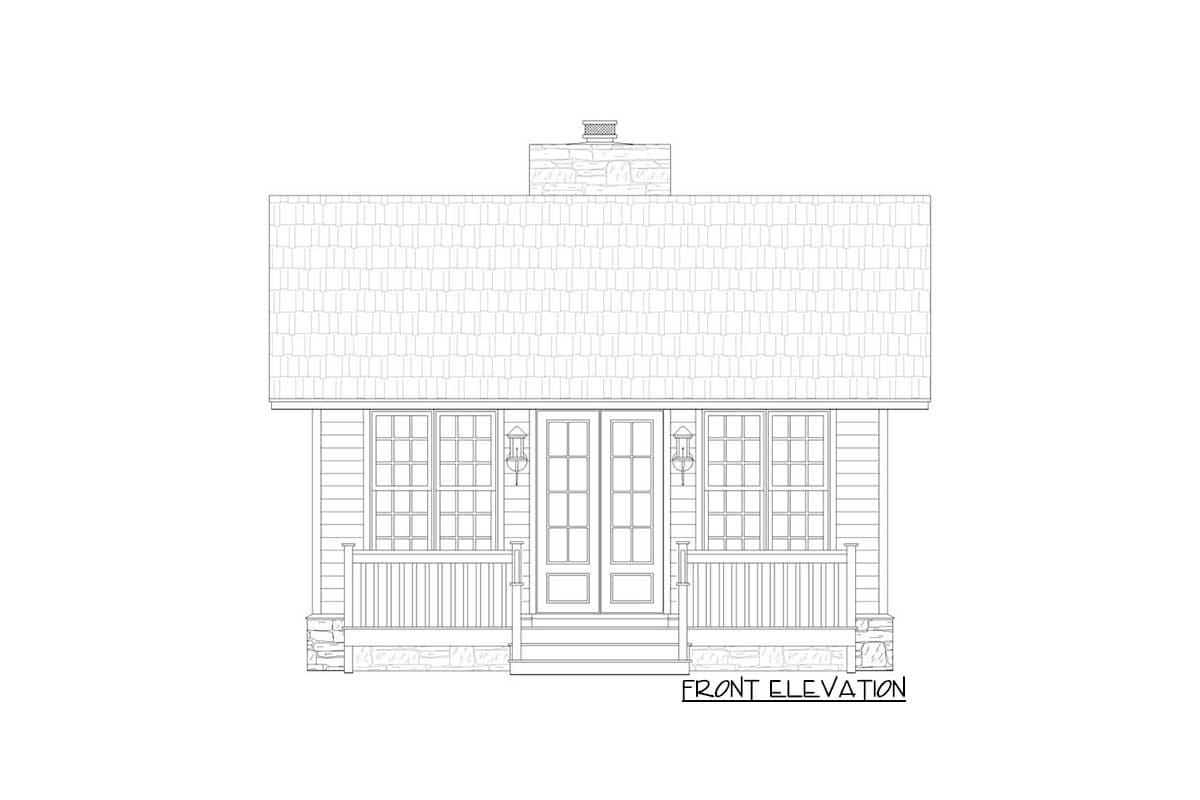

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

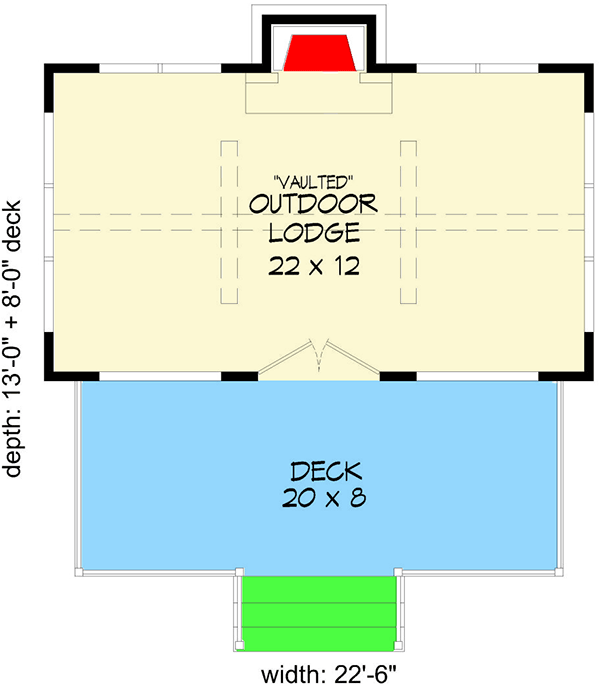

Tiny Lodge Plan - 68503VR floor plan - Main Level

Plan details

Architectural Style

Tiny Lodge Plan

  • 306

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

Buy This Plan
  • Study Set – Digital $525
  • PDF - Single-Build $695
  • 5 Sets $795
  • 5 Sets + PDF $820
  • CAD - Single-Build $995
  • View all purchase option online

About This Plan

  • Lots of windows on all four side brighten this tiny lodge room and bring in the views.
  • The vaulted and beamed ceiling creates a dramatic effect.
  • It works well as a party room, arts and crafts studio or man cave.
  • The big front deck lets you spend time outdoors too.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 306 sq. ft.
  • 1st Floor: 306 sq. ft.
  • Deck: 160 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 22' 6"
  • Depth: 21' 0"
  • Max ridge height: 16' 5"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
