Plan 444351GDN

Tiny One Bedroom Cabin with Wraparound Porch

Name: Plan 444351GDN: Tiny One Bedroom Cabin with Wraparound Porch
Brand: Architectural Designs
SKU: 444351GDN
Price: 1211.25 USD
Availability: InStock

Heated S.F.

753

Beds

Baths

Stories

Floor Plan

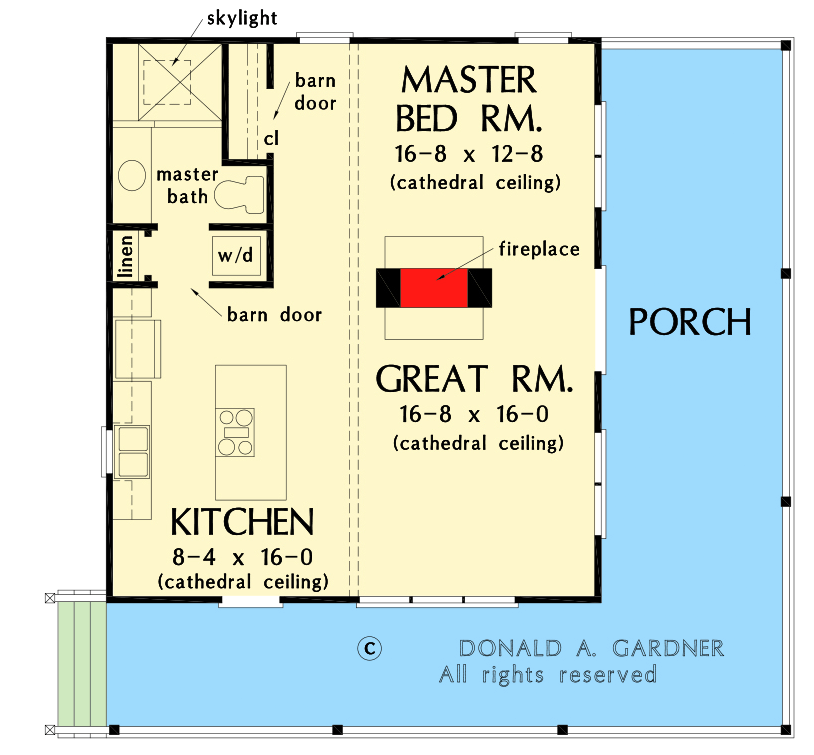

Main Level

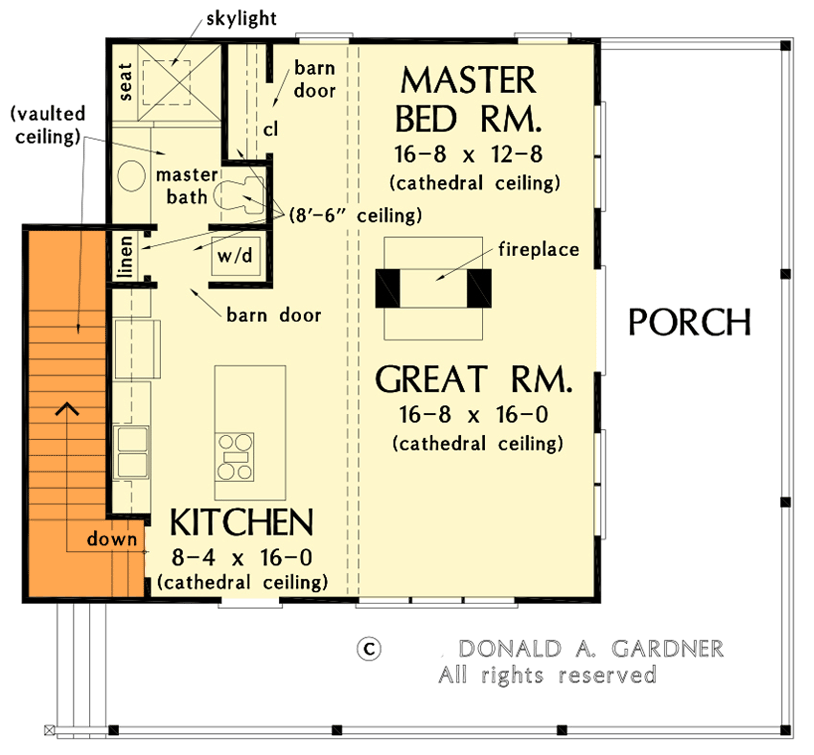

Main Level - Basement Stairs Location

Plan Details

This tiny cabin design makes the perfect mountain getaway or rental property. It has a rustic exterior complete with a porch that wraps arond two sides giving great fresh air spaces to enjoy.

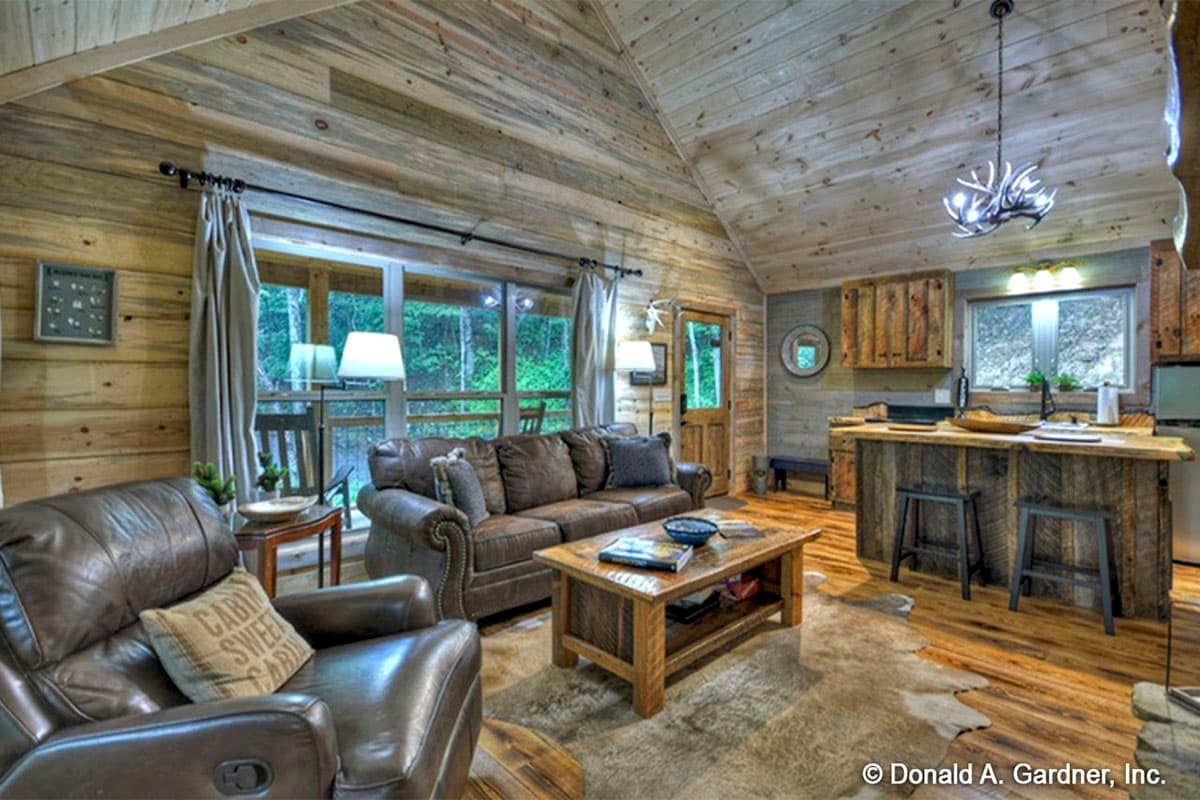

Inside, you are greeted with a simple, open layout with a 19' cathedral ceiling to enhance visual space and access to the porch from both the kitchen and the great room.
A double-sided fireplace is a treat for the great room and master bedroom. The kitchen island provides a cooktop and bar seating for mealtime.

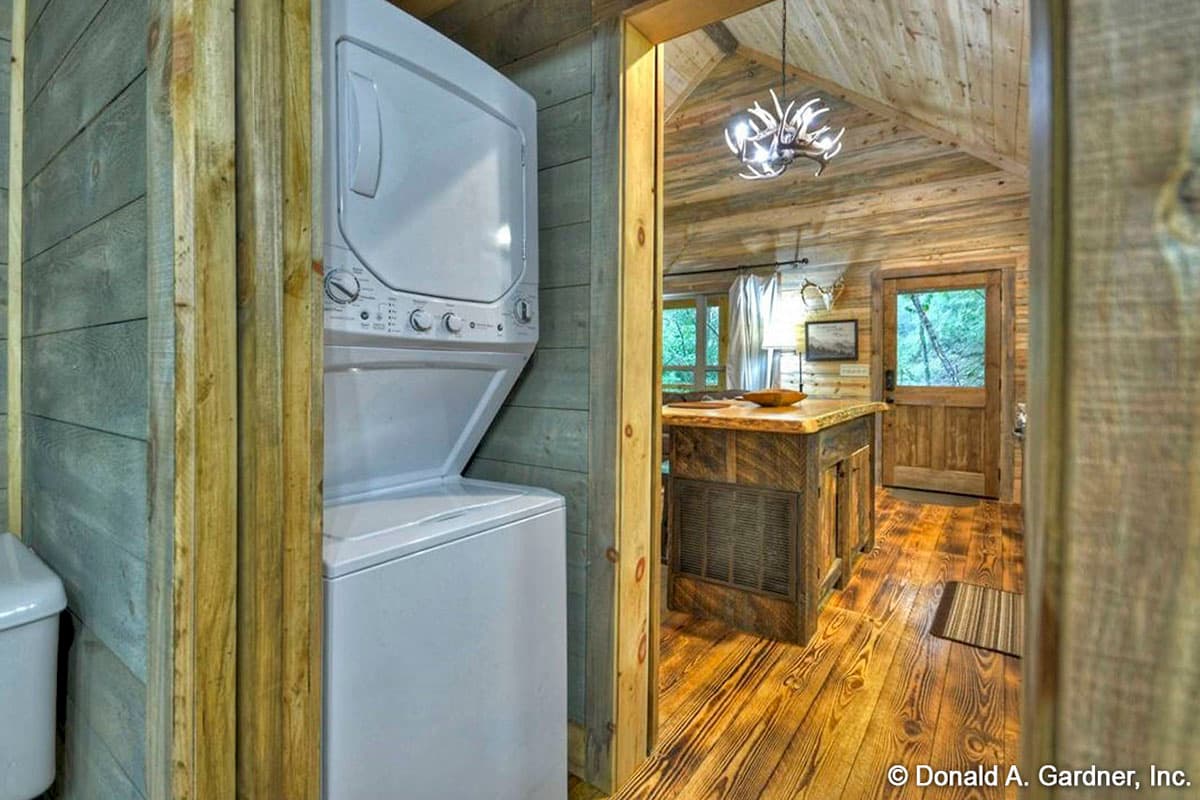

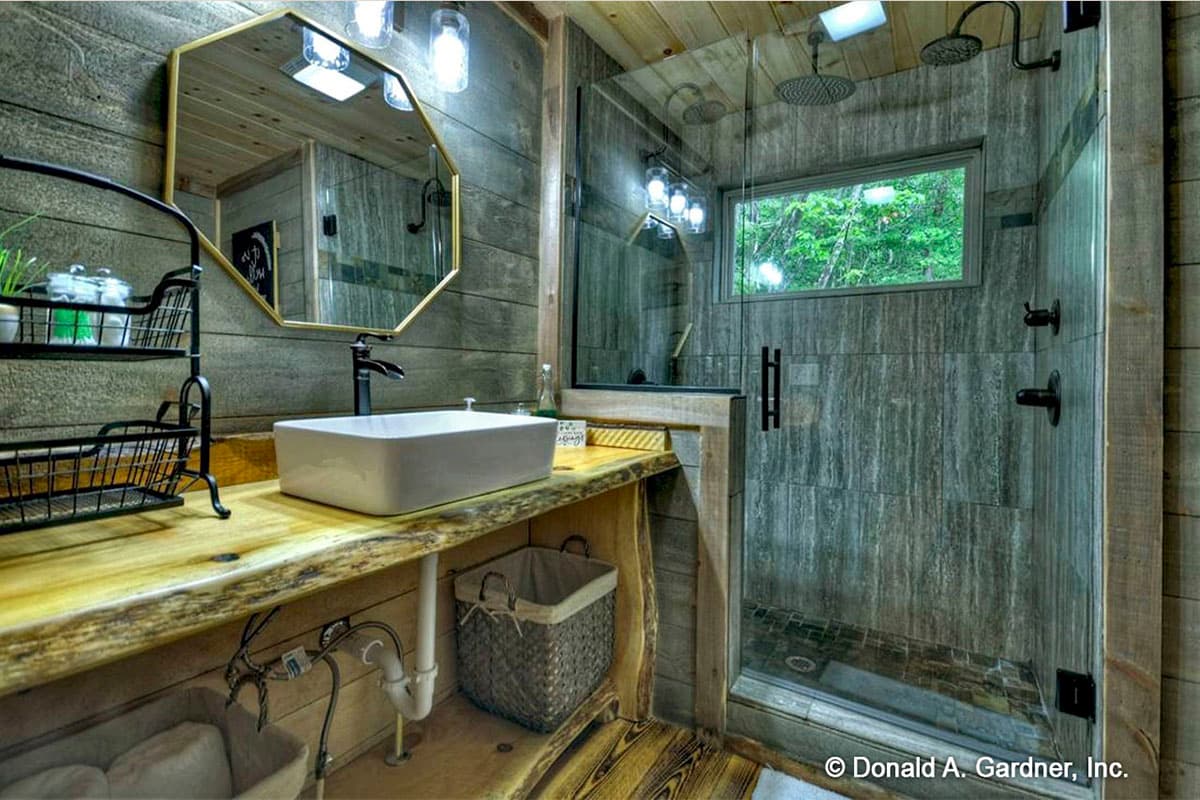

Additional amenities include a storage closet, a linen closet, a washer/dryer nook, and a bathroom with a spacious walk-in shower and overhead skylight.
Please allow 15 to 20 days for delivery if it includes the slab foundation option or 2x6 exterior wall conversion.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
