Tiny Vacation Cottage With Standing Seam Metal Roof

Plan 62694DJ

  • 831

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • 2

    Cars

  • A standing seam metal roof shelters the entry porch of this one-bed tiny vacation cottage.
  • Step inside and you enter an open floor plan with the bedroom tucked away in the back-right corner.
  • The 2-car garage has access to the home by the kitchen and a side-by-side washer dryer is located in a closet with bi-fold doors.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

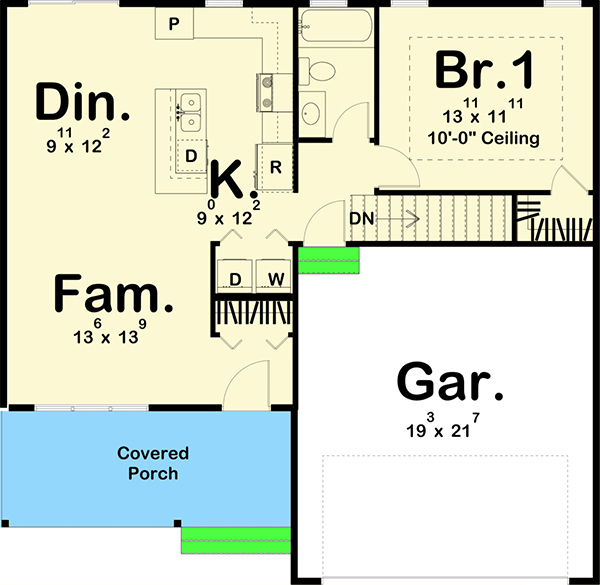

Tiny Vacation Cottage With Standing Seam Metal Roof - 62694DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 831 sq. ft.
  • 1st Floor: 831 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 38' 0"

Garage

  • Type: Attached
  • Area: 436 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Bedroom 1 Tray 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Tiny Vacation Cottage With Standing Seam Metal Roof

  • 831

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets + PDF $1,250
  • CAD + PDF - Single-Build $1,500
  • PDF - Unlimited Build $1,500
  • CAD Unlimited + PDF $2,000
  • View all purchase option online

About This Plan

  • A standing seam metal roof shelters the entry porch of this one-bed tiny vacation cottage.
  • Step inside and you enter an open floor plan with the bedroom tucked away in the back-right corner.
  • The 2-car garage has access to the home by the kitchen and a side-by-side washer dryer is located in a closet with bi-fold doors.
