Plan 54207HU Tower Room With Panoramic Views

3,393 3 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Tower Room With Panoramic Views

Plan 54207HU

  • 3,393

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Live in style indoors and out with this luxury house plan with three master suites and a tower giving you 360 degree views.

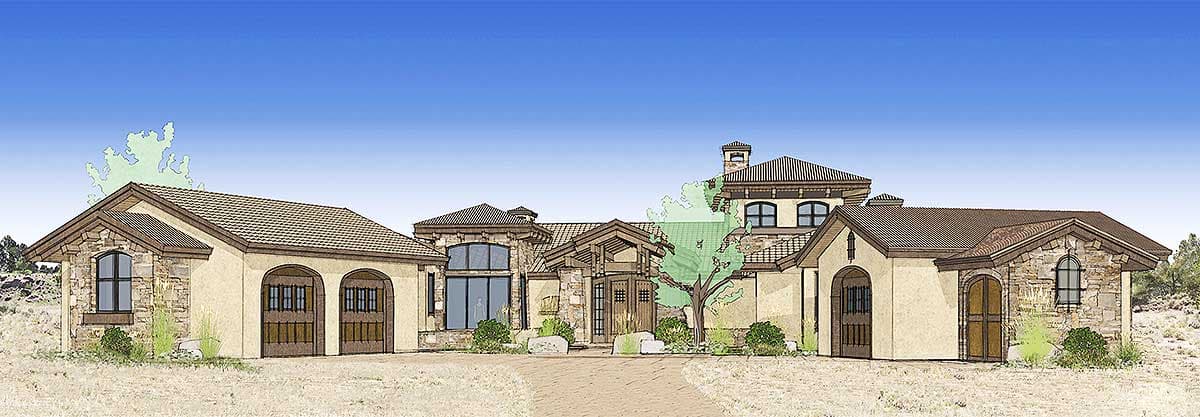

  • A covered entry leads you inside where you are greeted with an entry that vaults to 11'6" and gives you views through the vaulted great room and beyond to the terrace.

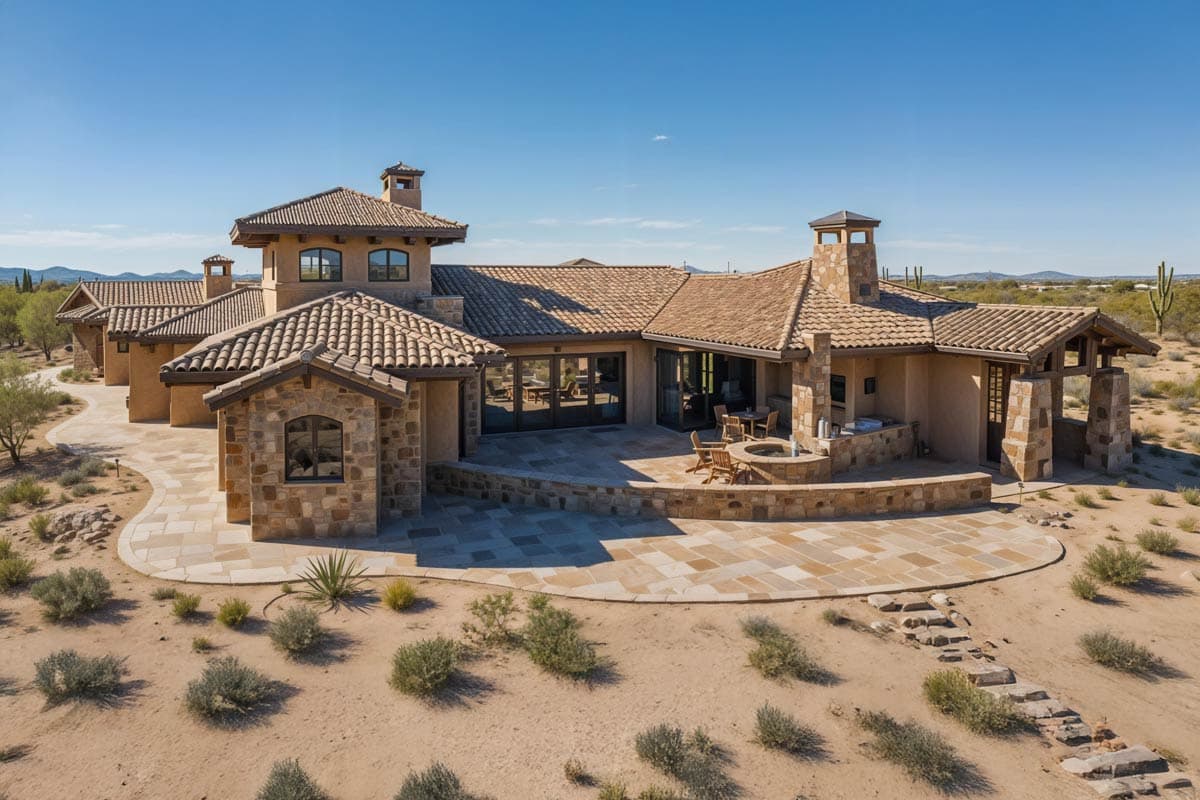

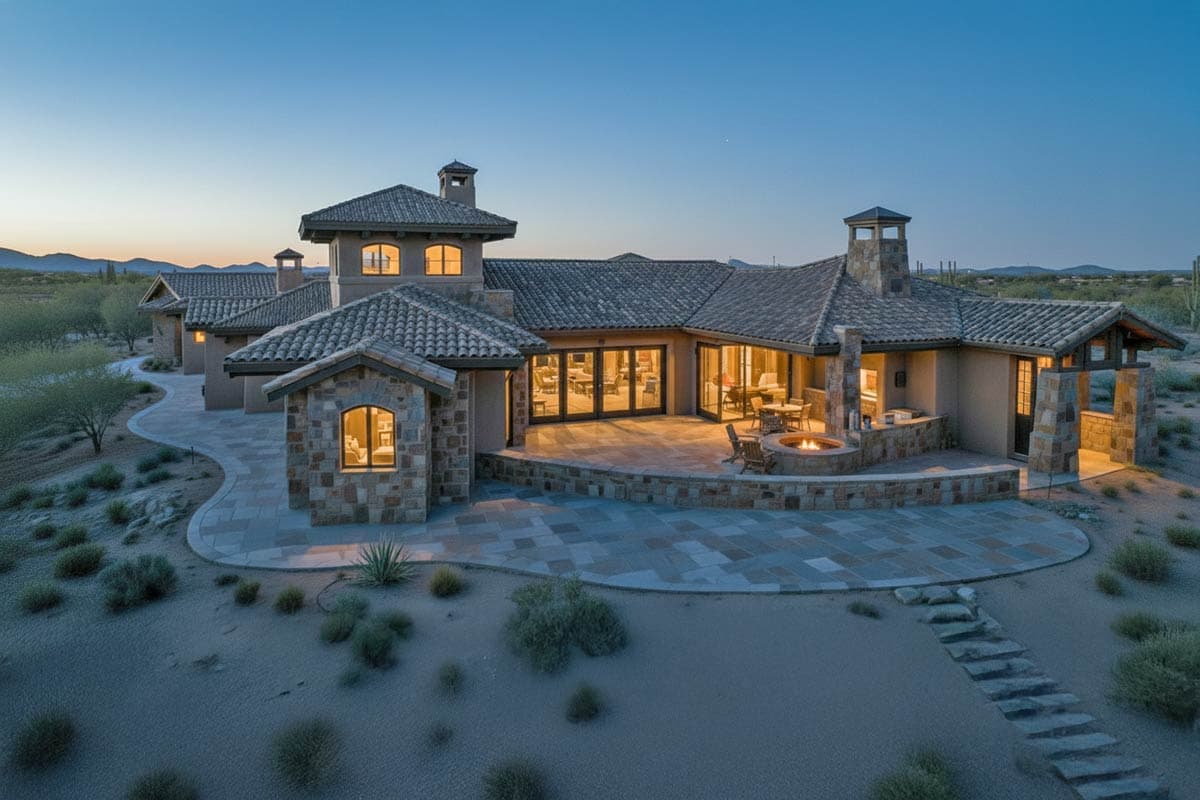

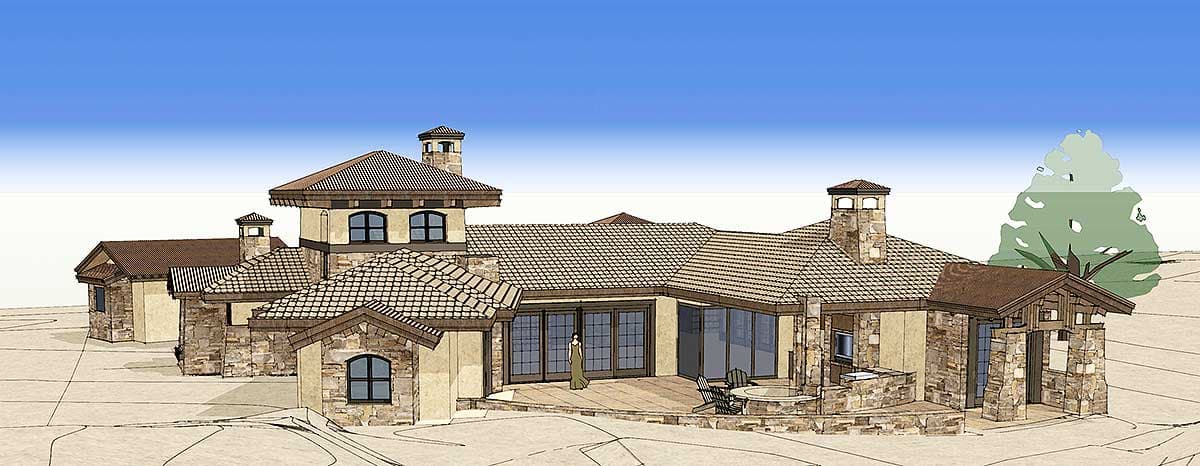

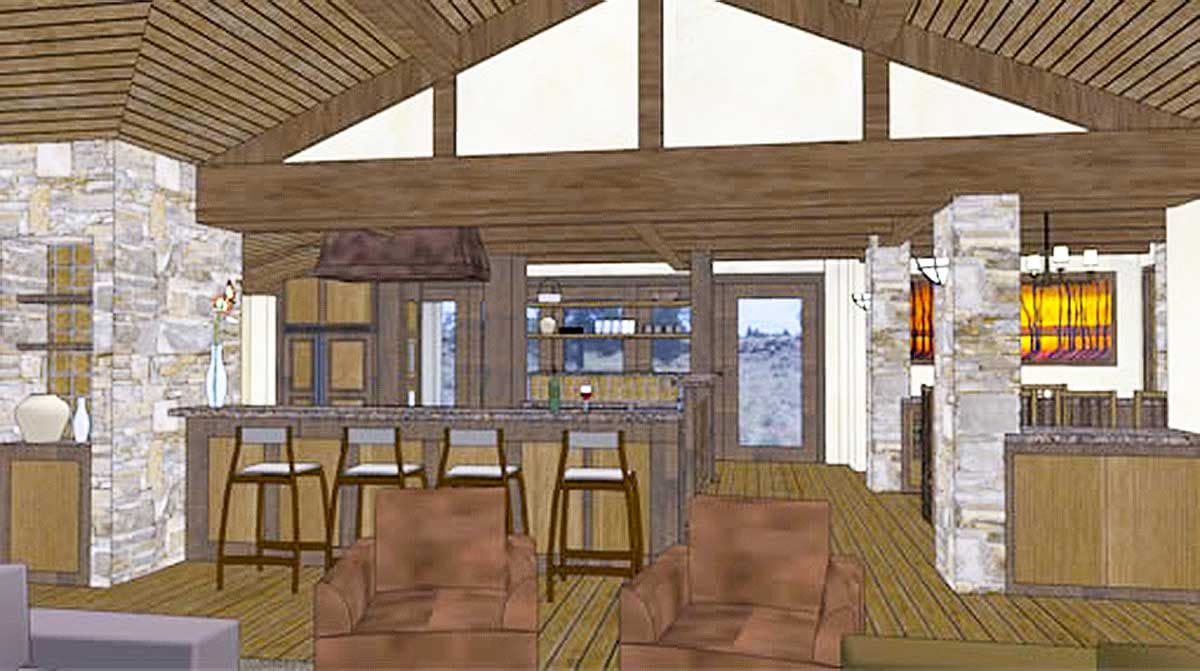

  • Entertain friends in the great room with a bar, fireplace and views to the back. Step outside and enjoy company by the fire pit, outdoor lounge with TV and outdoor kitchen.

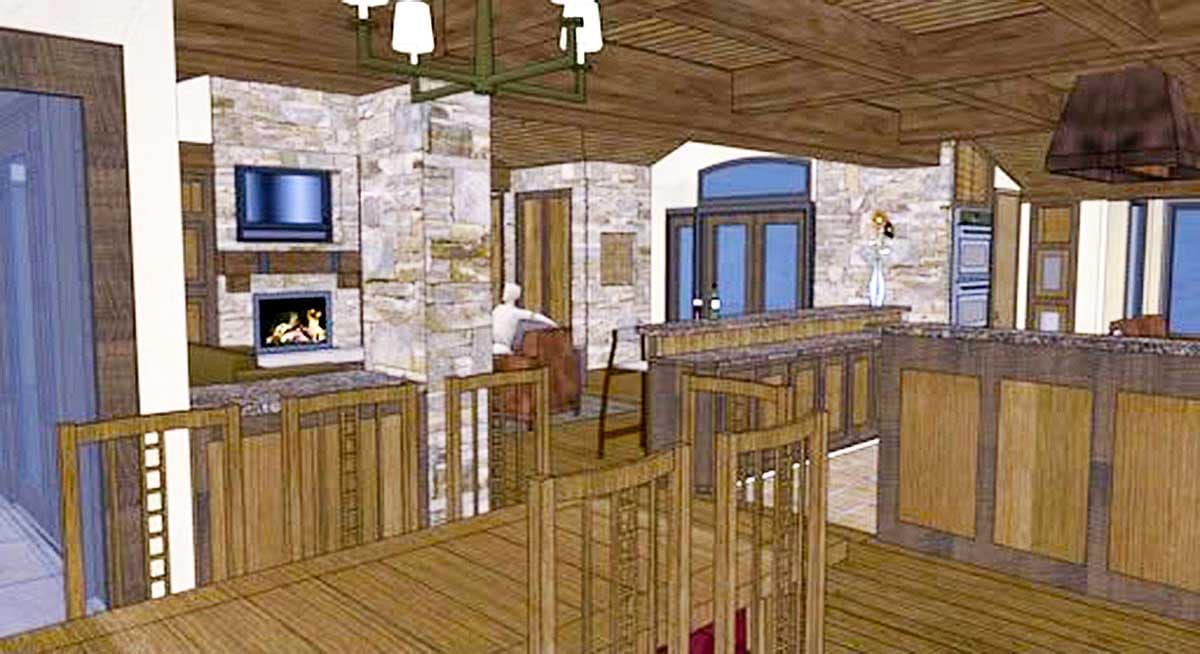

  • The kitchen has 9'6" ceilings with exposed wood beams as does the dining room. These rooms flow one to the other and have easy outdoor access steps away.

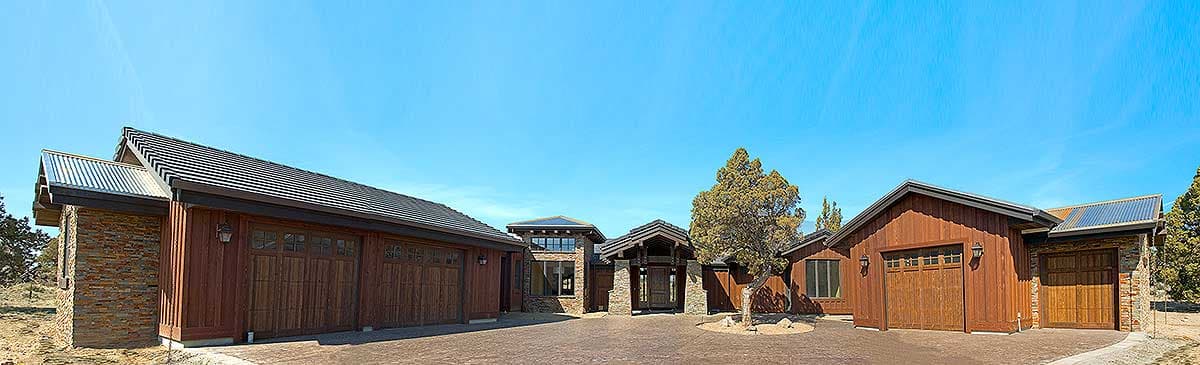

  • Off the 2-car garage the mud room has a built-in bench,coat closet and built-ins. A powder room and laundry are there and the kitchen is nearby for easy grocery unloading. A second 1-car garage is detached and has golf cart storage.
  • Build out the tower room and gain 186 square feet of heated space and phenomenal views in every direction.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

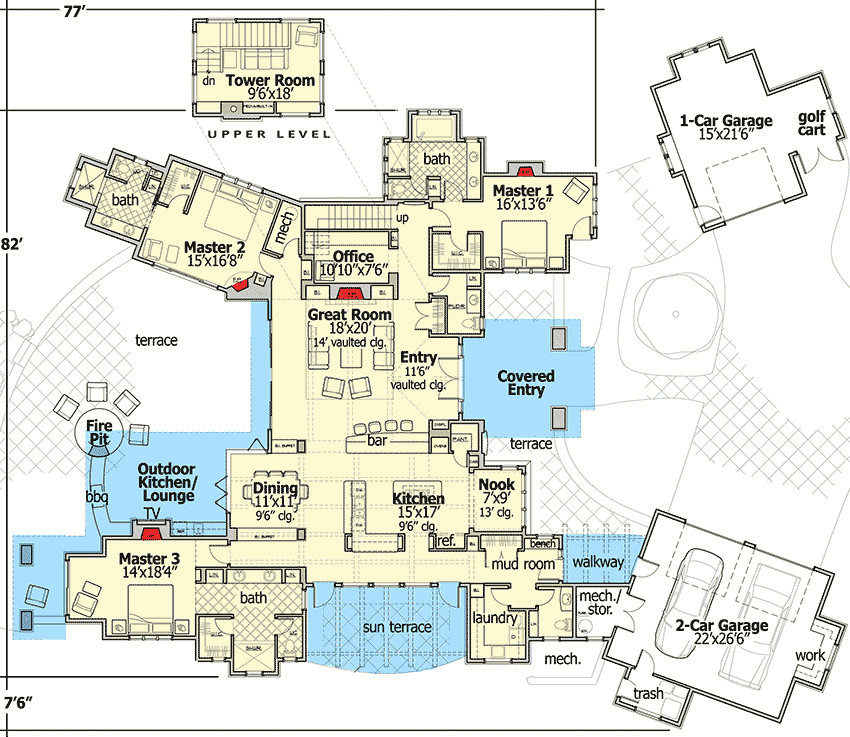

Tower Room With Panoramic Views - 54207HU floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,393 sq. ft.
  • 1st Floor: 3,393 sq. ft.
  • Covered Patio: 308 sq. ft.
  • Porch, Rear: 308 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 0"
  • Depth: 77' 0"
  • Max ridge height: 23' 9"

Garage

  • Type: Attached
  • Area: 1252 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 6" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 5 on 12

Architectural Style

Special features

Plan Collections

Tower Room With Panoramic Views

  • 3,393

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • 5 Sets $2,195
  • 8 Sets $2,295
  • CAD + PDF - Single-Build $2,895
  • View all purchase option online

About This Plan

  • Live in style indoors and out with this luxury house plan with three master suites and a tower giving you 360 degree views.
  • A covered entry leads you inside where you are greeted with an entry that vaults to 11'6" and gives you views through the vaulted great room and beyond to the terrace.
  • Entertain friends in the great room with a bar, fireplace and views to the back. Step outside and enjoy company by the fire pit, outdoor lounge with TV and outdoor kitchen.
  • The kitchen has 9'6" ceilings with exposed wood beams as does the dining room. These rooms flow one to the other and have easy outdoor access steps away.
  • Off the 2-car garage the mud room has a built-in bench,coat closet and built-ins. A powder room and laundry are there and the kitchen is nearby for easy grocery unloading. A second 1-car garage is detached and has golf cart storage.
  • Build out the tower room and gain 186 square feet of heated space and phenomenal views in every direction.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,393 sq. ft.
  • 1st Floor: 3,393 sq. ft.
  • Covered Patio: 308 sq. ft.
  • Porch, Rear: 308 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 0"
  • Depth: 77' 0"
  • Max ridge height: 23' 9"

Garage

  • Type: Attached
  • Area: 1252 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 6" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
Plan 54207HU
