Plan 135296GRA

Traditional 2-Car Garage - 1218 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2

Floor Plan

Plan 135296GRA

Main Level
Main Level

Plan 135296GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

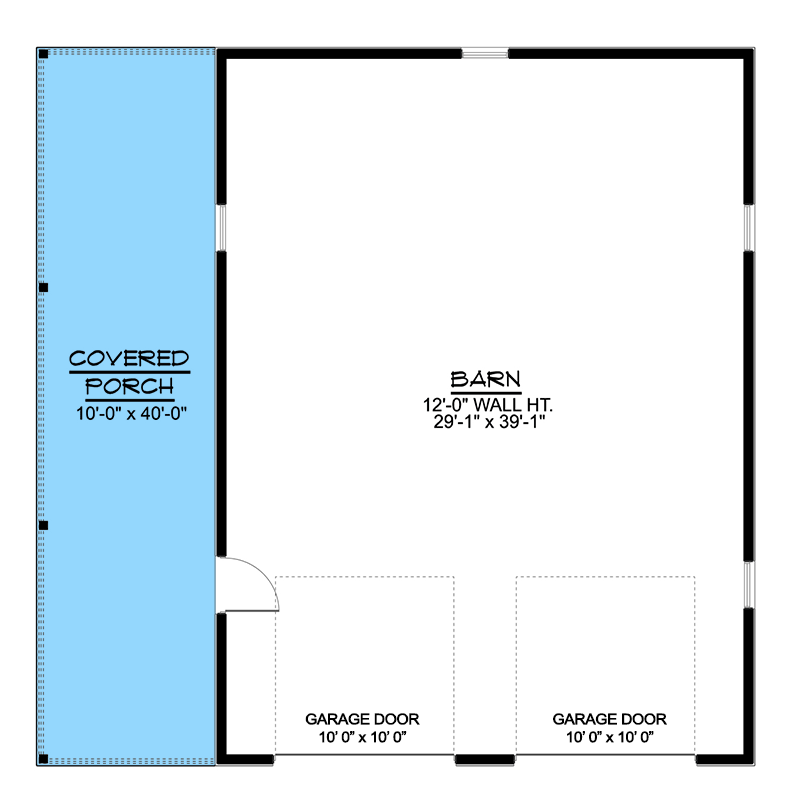

Plan 135296GRA: Traditional 2-Car Garage - 1218 Sq Ft - Floor Plan - Main Level - Traditional

Plan Details

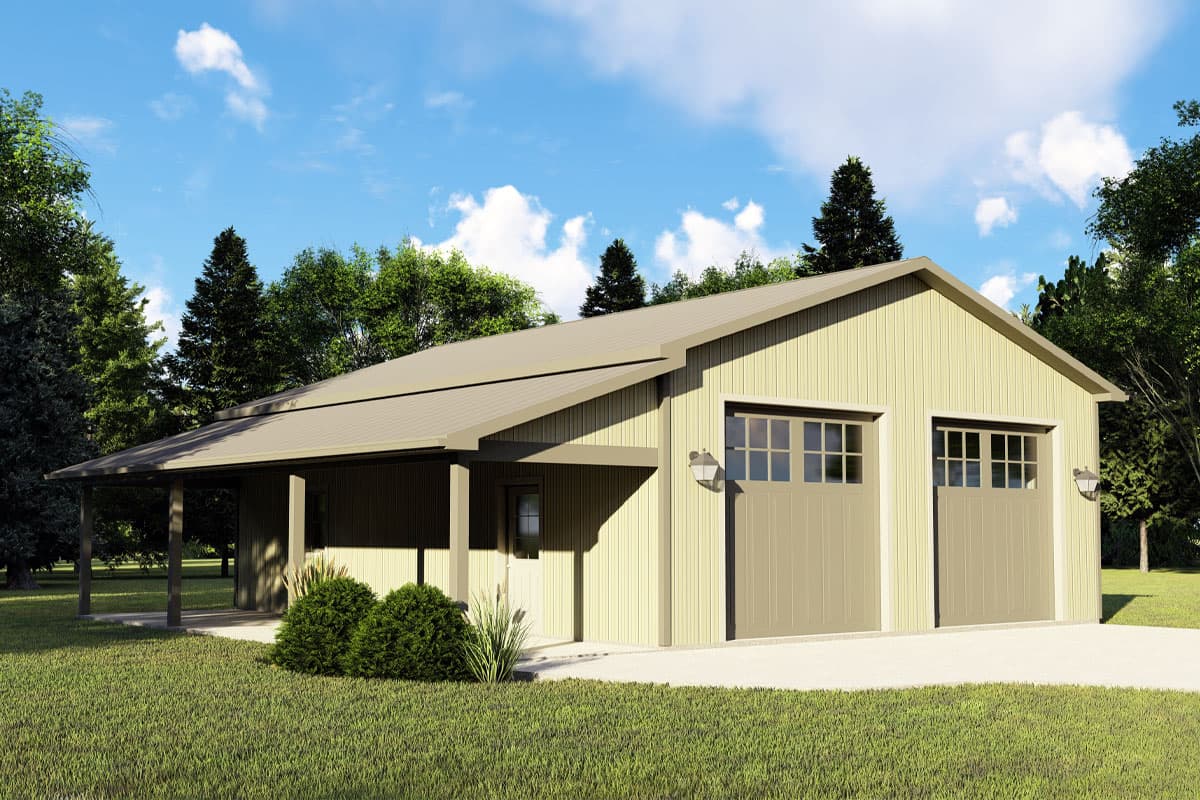

  • This Traditional House Plan presents a robust 1218 sq. ft. detached 2-car garage and workshop, featuring a generous 395 sq. ft. covered porch, ideal for versatile utility and storage needs.
  • Upon entry through either of the two large 10'x10' garage doors, you are greeted by a vast, open interior space with impressive 12-foot wall heights, providing exceptional clearance for vehicles, equipment, or a dedicated workspace.
  • Designed for efficiency, the main 'Barn' area provides unobstructed access and flexibility, while an additional side entry door opens directly onto the expansive covered porch, creating a natural flow for projects or sheltered outdoor tasks.
  • The substantial 29'-1" x 39'-1" interior 'Barn' space is highly adaptable, perfect for a professional-grade workshop, extensive equipment storage, or a spacious hobby area, all framed with durable 2x6 exterior walls.
  • An expansive 395 sq. ft. covered porch, measuring 10 feet deep by 40 feet wide, offers a protected outdoor zone for staging materials, enjoying a break, or even sheltered parking for smaller items.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Combined

395 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Max Ridge Height

17' 6"

Garage

Type

Detached

Area

1218 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Traditional

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Combined

395 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Max Ridge Height

17' 6"

Garage

Type

Detached

Area

1218 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Traditional
