Traditional 2-Car Garage with Carport and Upstairs Storage

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
2- 3

Floor Plan

Plan 72292DA

Main Level
Main Level
Upper Level
Upper Level

Plan 72292DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

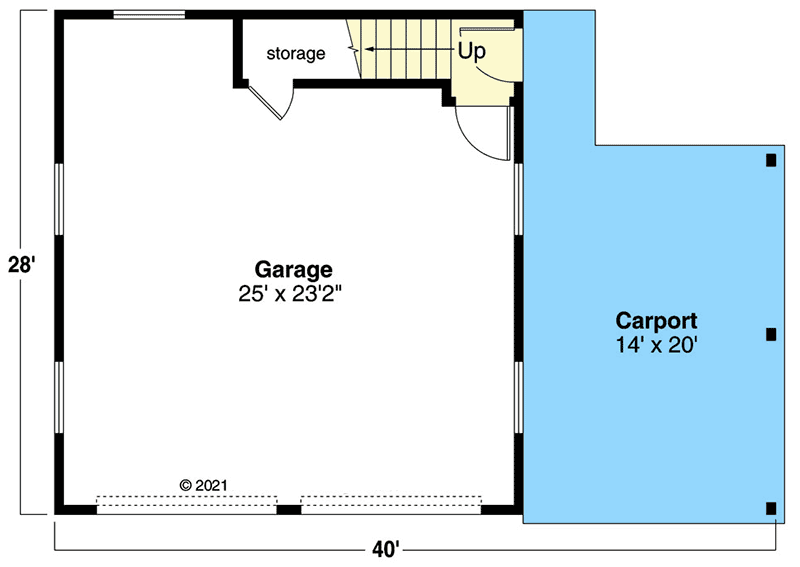

Plan 72292DA: Traditional 2-Car Garage with Carport and Upstairs Storage - Floor Plan - Main Level - Traditional

Upper Level

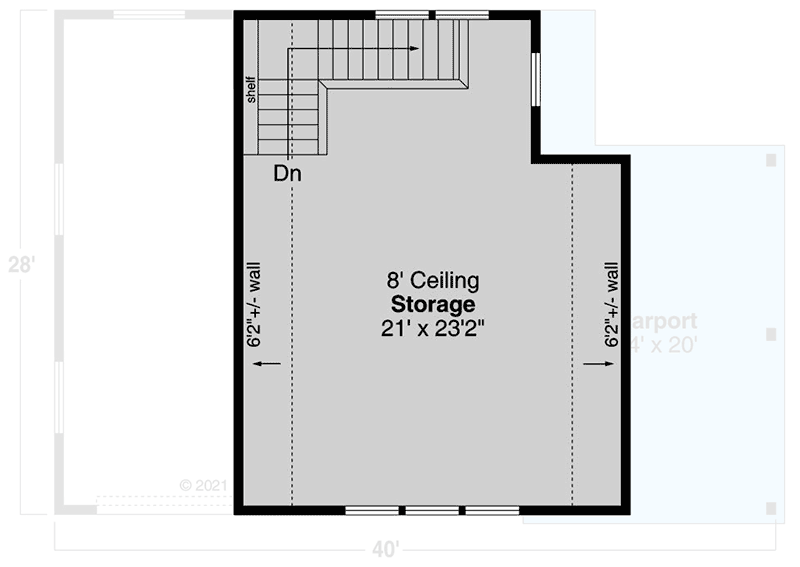

Plan 72292DA: Traditional 2-Car Garage with Carport and Upstairs Storage - Floor Plan - Upper Level - Traditional

Plan Details

  • Size and amenities are the name of the game with this traditional-style garage design. To the right is a covered carport meant for a single car that can also double as a storage area.
  • The building has two stories with stairs on the inside placed conveniently out of the way on the back-right wall.
  • The first floor is made up of the garage space that can house 2 cars, with the doors of each bay measuring 10' x 8'.
  • The second floor is an open storage area with 8' ceilings.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

509 sq. ft.

Carport

280 sq. ft.

Storage

509 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

28' 0"

Max Ridge Height

24' 9"

Garage

Type

Detached, Carport

Area

728 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

Second Floor

8'

Roof Details

Primary Pitch

9 on 0

Secondary Pitch

8 on 0

Framing Type

Stick And Truss

Architectural Style

Traditional

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

509 sq. ft.

Carport

280 sq. ft.

Storage

509 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

28' 0"

Max Ridge Height

24' 9"

Garage

Type

Detached, Carport

Area

728 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

Second Floor

8'

Roof Details

Primary Pitch

9 on 0

Secondary Pitch

8 on 0

Framing Type

Stick And Truss

Architectural Style

Traditional
