Traditional 3-Bed Home Plan with Screen Porch and Bonus Room

Plan 444245GDN

  • 1,698

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Traditional, 3-bedroom home plan makes the most of a smaller square footage with its smart layout and open living spaces. A 25'8"-wide and 5'8"-deep front porch has room for some rocking chairs on it.
  • The great room is at the heart of the home, with french doors opening to the screen porch with sun lights in its 16'7"-high cathedral ceiling.
  • The spacious kitchen is tucked away in the corner looking out to the common area over a curved bar, which mirrors the columned entrance to the dining room.
  • Located off to the side for privacy, the master suite includes a well-appointed master bath and large walk-in closet.
  • Two family bedrooms line the right side of the home, and a 479 square foot bonus room above the garage adds flexibility to this design.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

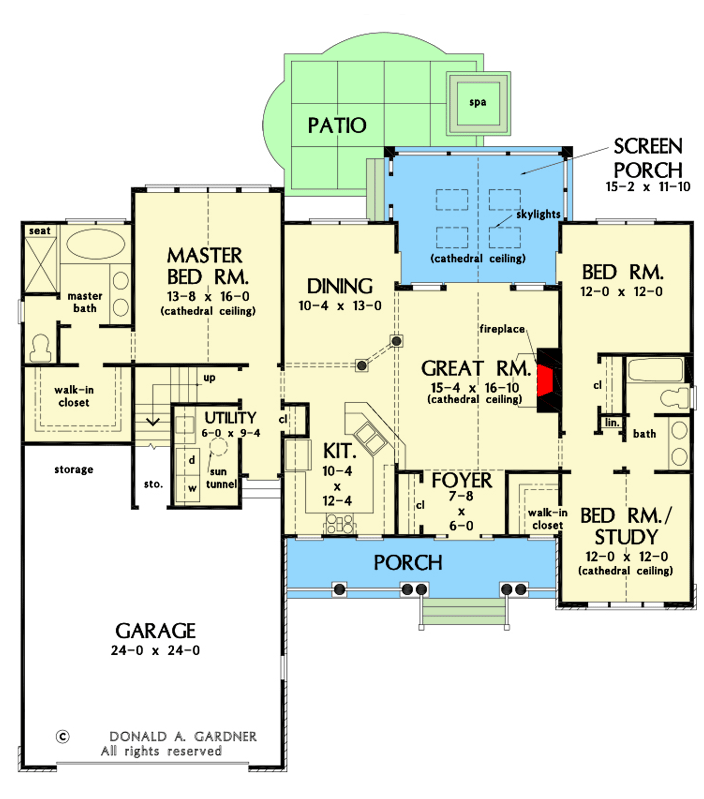

Traditional 3-Bed Home Plan with Screen Porch and Bonus Room - 444245GDN floor plan - Main Level

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

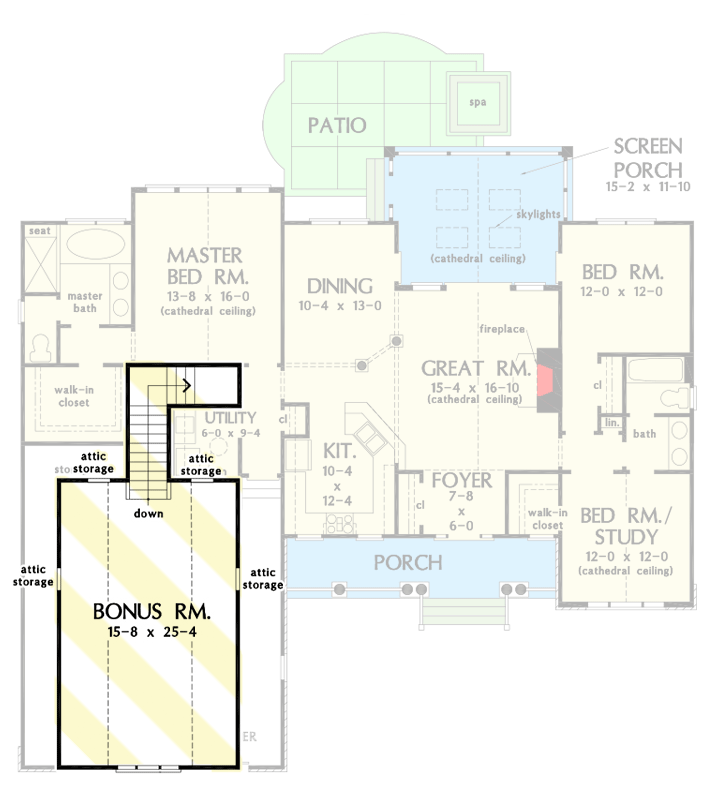

Traditional 3-Bed Home Plan with Screen Porch and Bonus Room - 444245GDN floor plan - Bonus Room

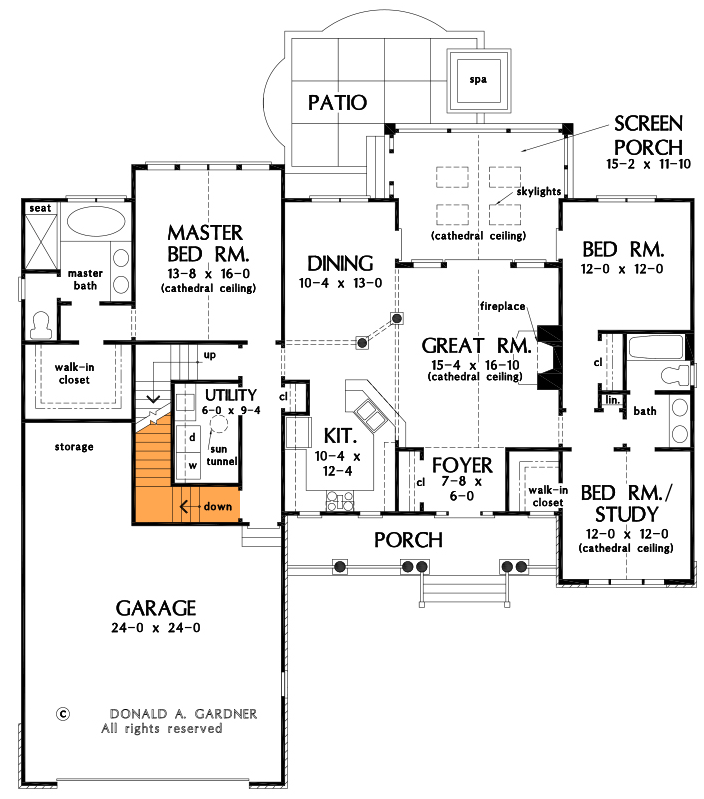

Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional 3-Bed Home Plan with Screen Porch and Bonus Room - 444245GDN floor plan - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,698 sq. ft.
  • 1st Floor: 1,698 sq. ft.
  • Covered Patio: 270 sq. ft.
  • Screened Porch: 214 sq. ft.
  • Porch, Front: 143 sq. ft.
  • Bonus: 479 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 58' 4"
  • Max ridge height: 27' 9"

Garage

  • Type: Attached
  • Area: 674 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 11 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Traditional 3-Bed Home Plan with Screen Porch and Bonus Room

  • 1,698

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,250
  • PDF - Single-Build $1,450
  • CAD Unlimited + PDF $2,550
  • View all purchase option online

About This Plan

  • This Traditional, 3-bedroom home plan makes the most of a smaller square footage with its smart layout and open living spaces. A 25'8"-wide and 5'8"-deep front porch has room for some rocking chairs on it.
  • The great room is at the heart of the home, with french doors opening to the screen porch with sun lights in its 16'7"-high cathedral ceiling.
  • The spacious kitchen is tucked away in the corner looking out to the common area over a curved bar, which mirrors the columned entrance to the dining room.
  • Located off to the side for privacy, the master suite includes a well-appointed master bath and large walk-in closet.
  • Two family bedrooms line the right side of the home, and a 479 square foot bonus room above the garage adds flexibility to this design.

Floor Plans

  • Main Level

  • Bonus Room

  • Basement Stairs Location

Plan Details
