Plan 720141DA

Traditional 3 or 6-Car RV Garage House Plan with 14 Ceilings

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
3- 6

Floor Plan

Plan 720141DA

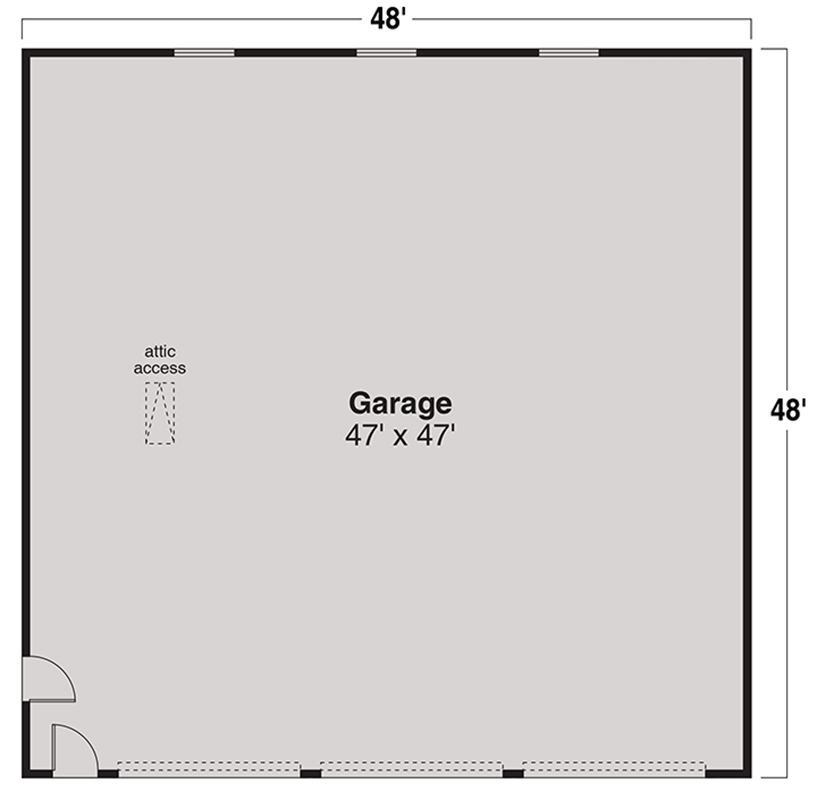

Main Level
Main Level

Plan 720141DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 720141DA: Traditional 3 or 6-Car RV Garage House Plan with 14 Ceilings - Floor Plan - Main Level - Traditional

Plan Details

  • This traditional style detached garage plan offers a generous 2304 sq. ft. of unheated space, capable of housing up to 6 cars, including RVs, all built on a robust slab foundation.

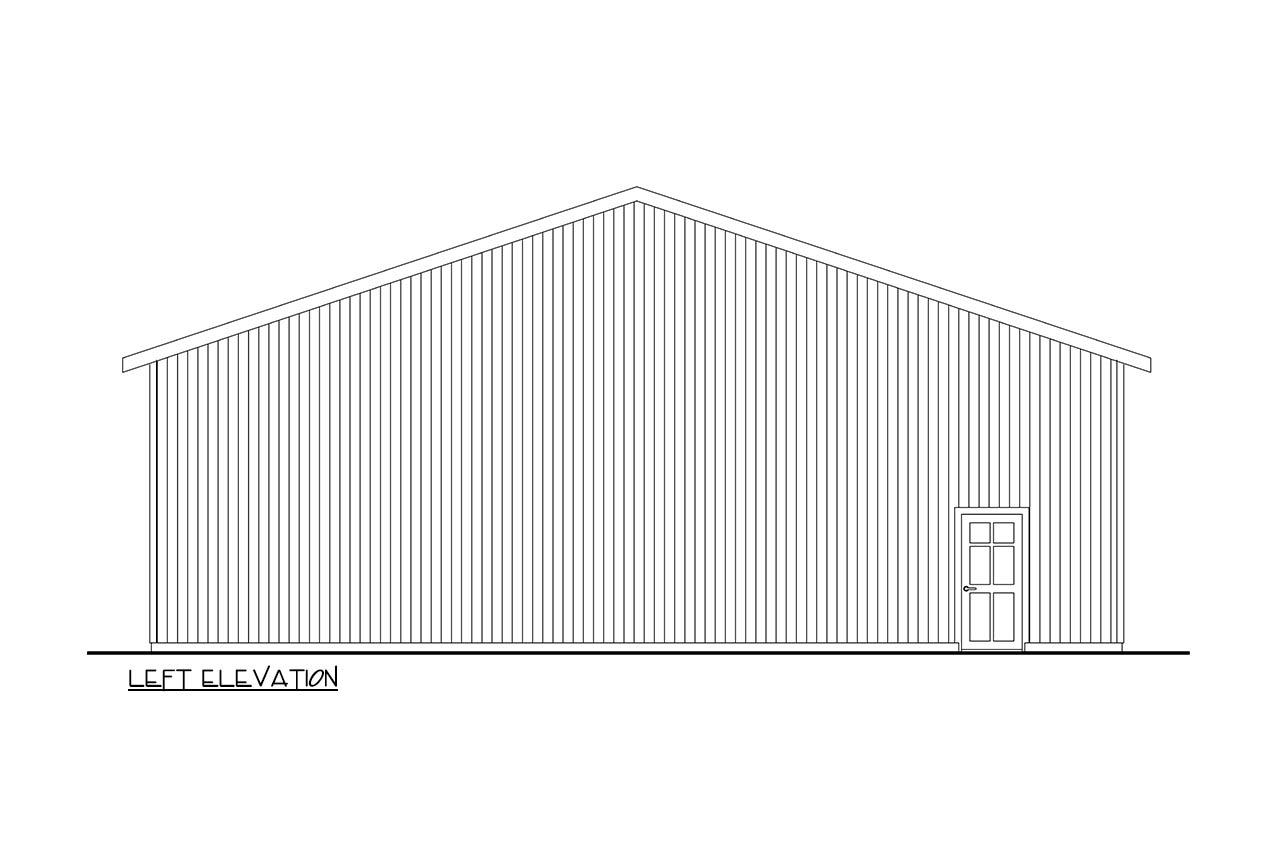

  • Step inside this expansive 48'x48' garage, designed for unparalleled utility and storage. The front entry features three wide doors, complemented by a convenient side entrance for everyday access.
  • With impressive 14-foot ceilings, the vast open interior provides ample vertical clearance for recreational vehicles, boats, or specialized equipment, ensuring an uncluttered and functional environment.
  • Beyond vehicle storage, this versatile structure can easily transform into a dedicated workshop, a secure storage facility for collectibles, or a spacious area for hobbies and projects, accommodating various lifestyle needs.
  • An integrated attic access point offers potential for additional overhead storage, providing a clever solution for seasonal items or less frequently used gear.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

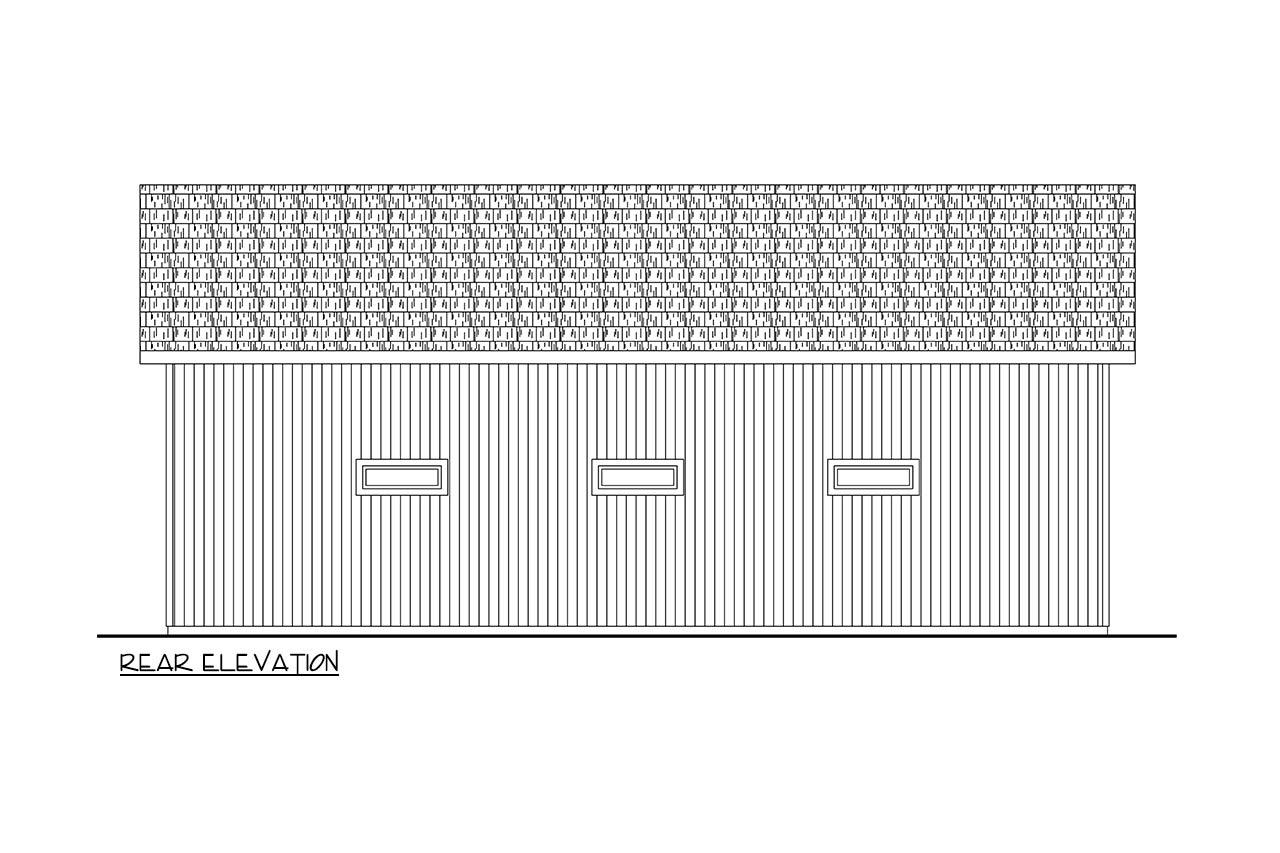

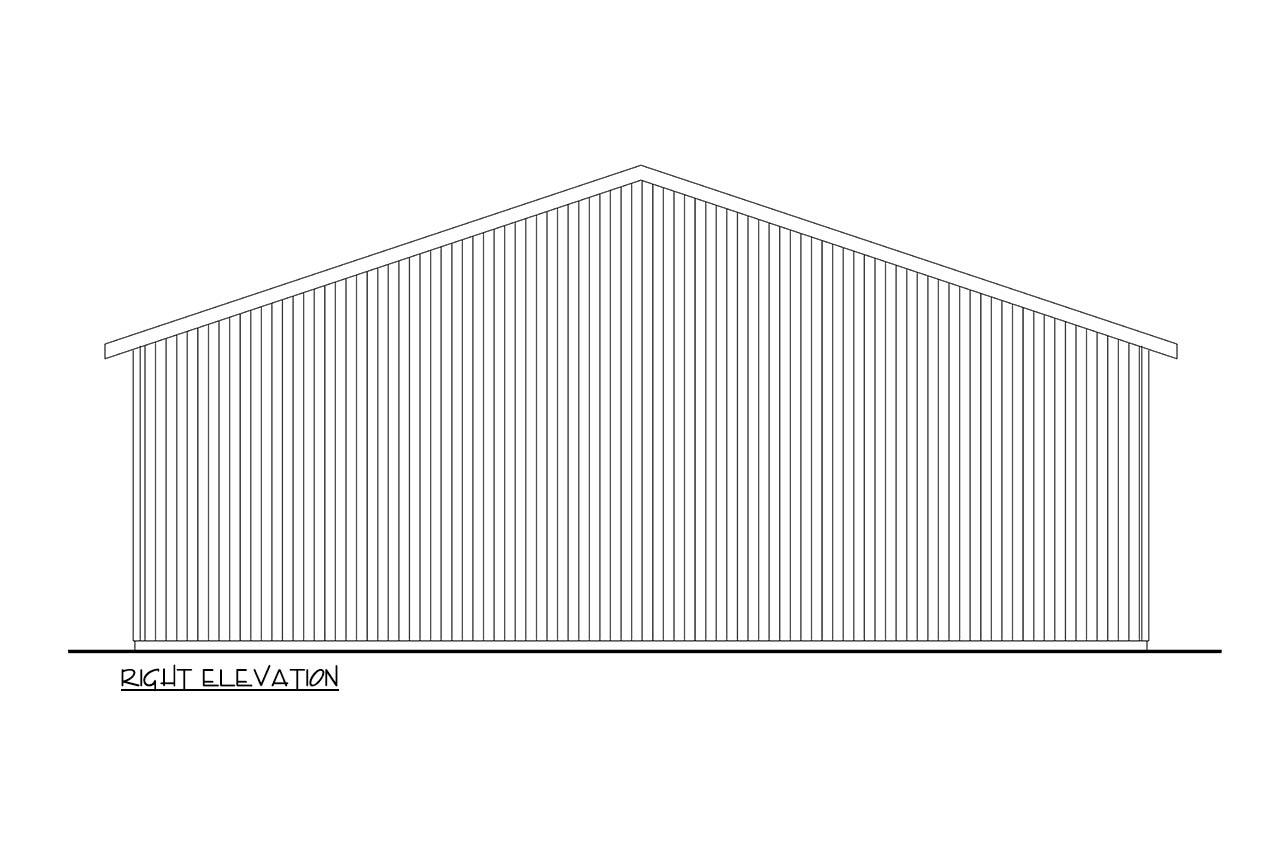

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

48' 0"

Max Ridge Height

23' 0"

Garage

Type

Detached, RV Garage

Area

2304 sq. ft.

Count

3, 4, 5, or 6 Cars

Entry Location

Front

Ceiling Heights

First Floor

14'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Traditional

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

48' 0"

Max Ridge Height

23' 0"

Garage

Type

Detached, RV Garage

Area

2304 sq. ft.

Count

3, 4, 5, or 6 Cars

Entry Location

Front

Ceiling Heights

First Floor

14'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Traditional
