Plan 59142ND

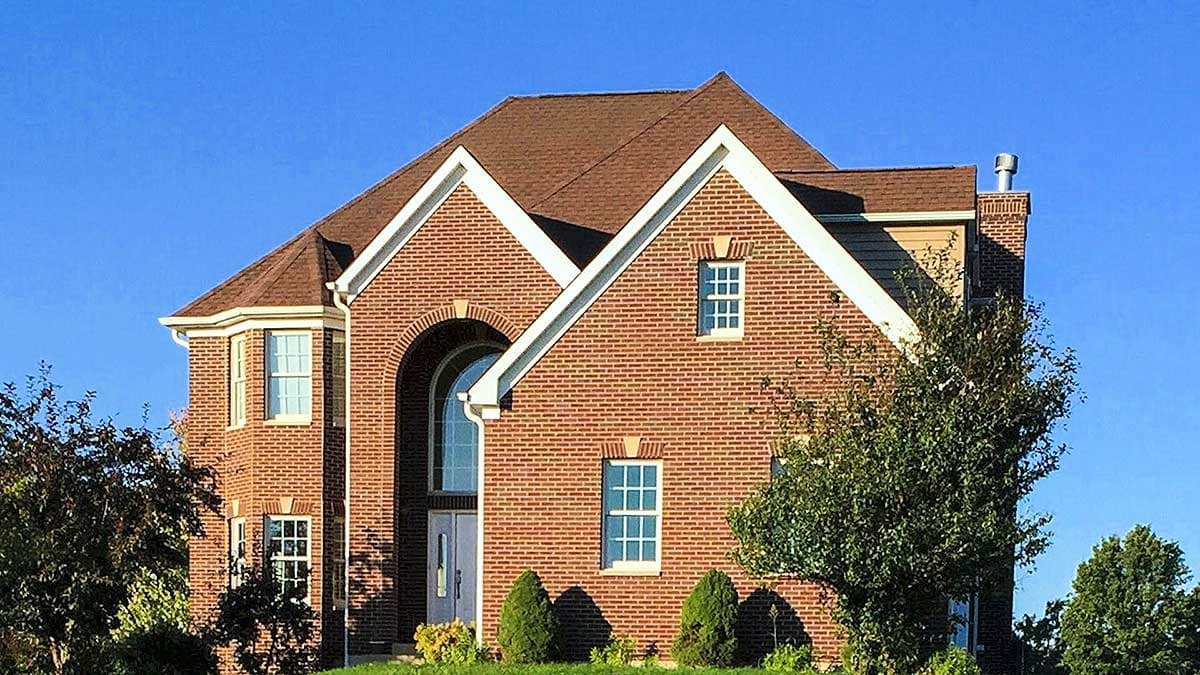

Traditional Brick Home with 2-Story Entry

Heated S.F.
2,435
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 59142ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59142ND

M-F 9am-5pm EST |

1-203-761-8500

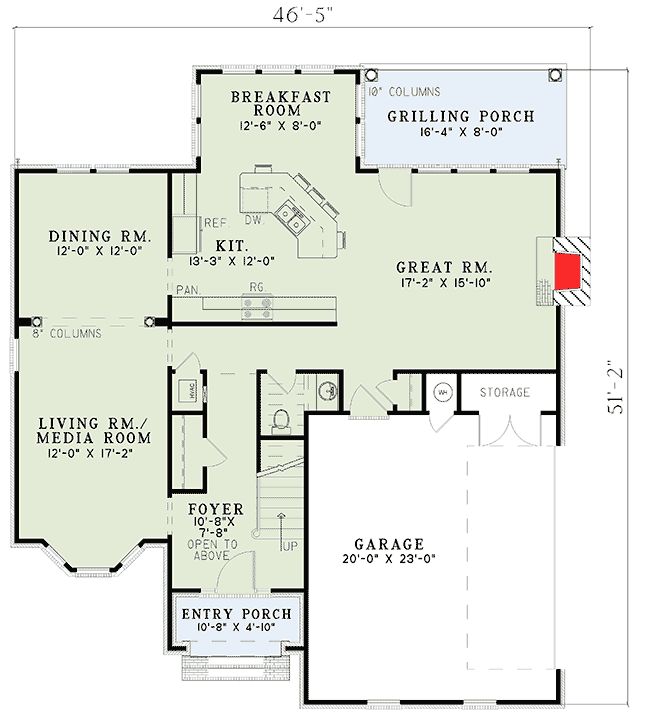

Main Level

Plan 59142ND: Traditional Brick Home with 2-Story Entry - Floor Plan - Main Level - Traditional

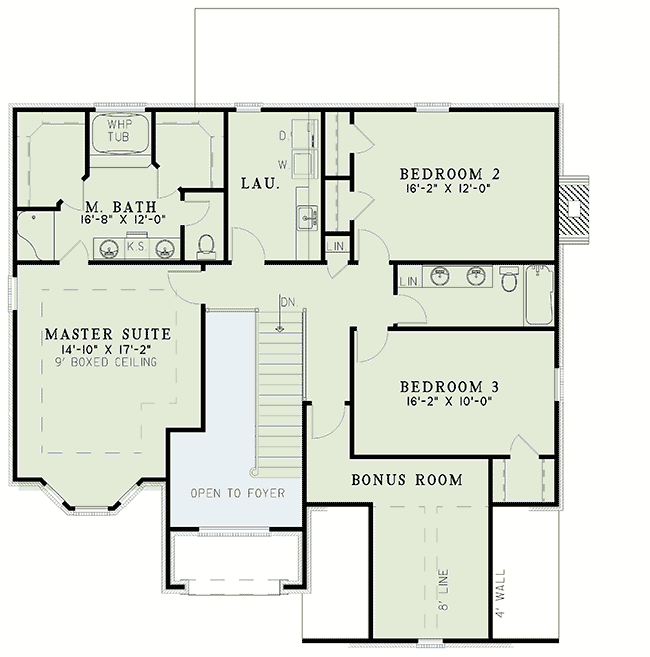

2nd Floor

Plan 59142ND: Traditional Brick Home with 2-Story Entry - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Welcome your guests into the media room with bay window or head into the great room for conversation by the fireplace.
  • You’ll enjoy preparing your cuisine in this well-equipped kitchen.
  • Serve your guests in the dining room with columns or prepare your feast on the rear grilling porch.
  • Upstairs, you can check on the kids in the two additional bedrooms before retiring to your master suite for the night.
  • The inclusion of a bonus room on the upper level only increases the possibilities in this remarkable design.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

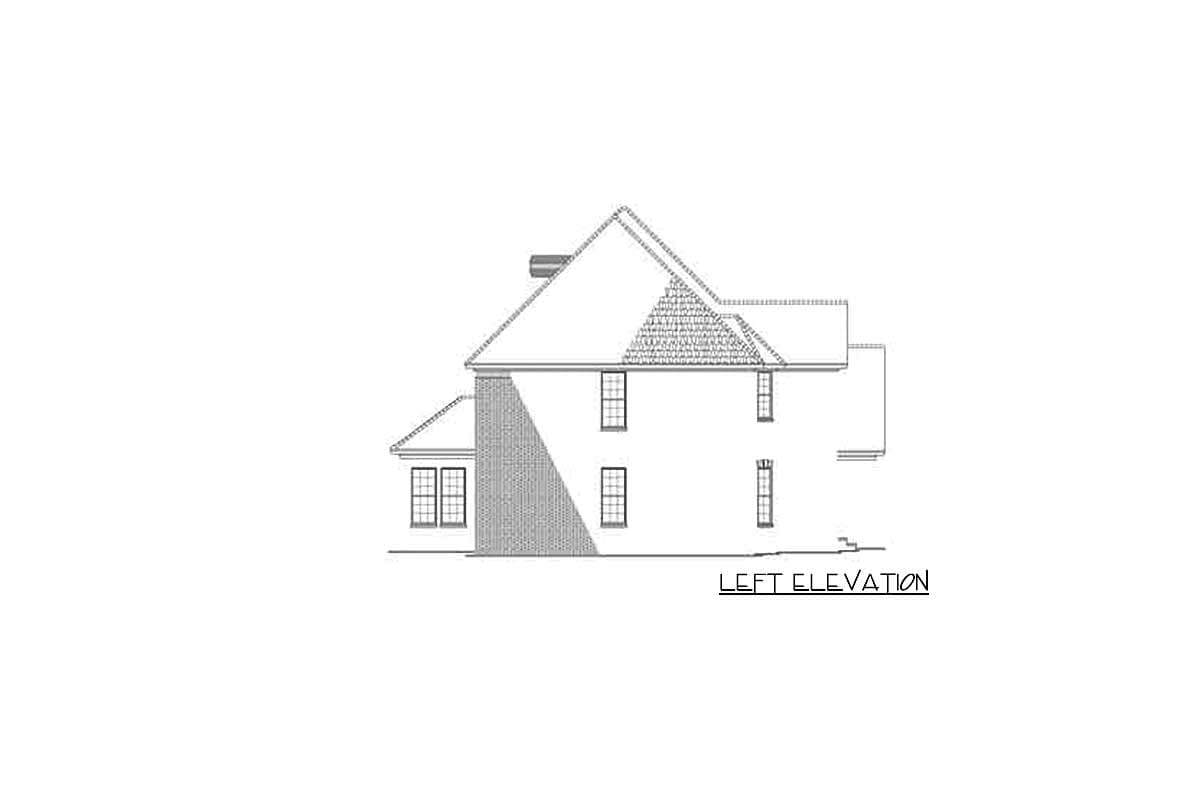

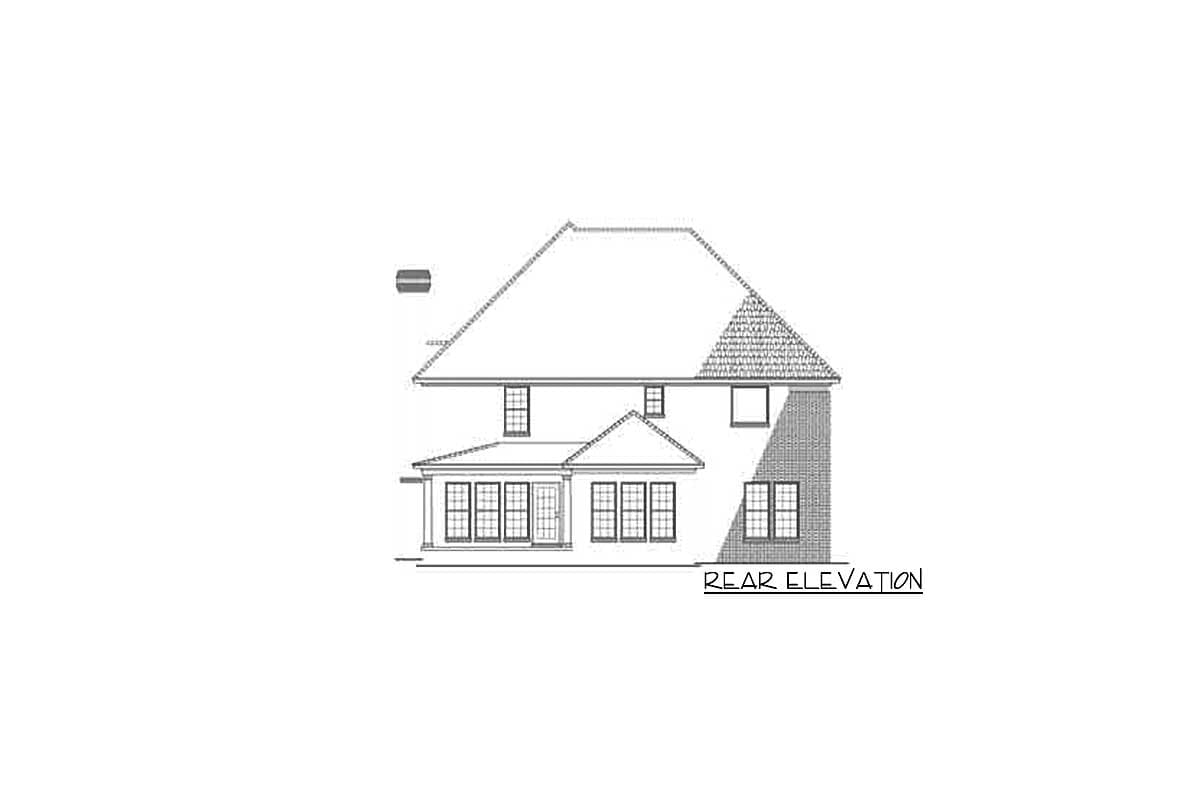

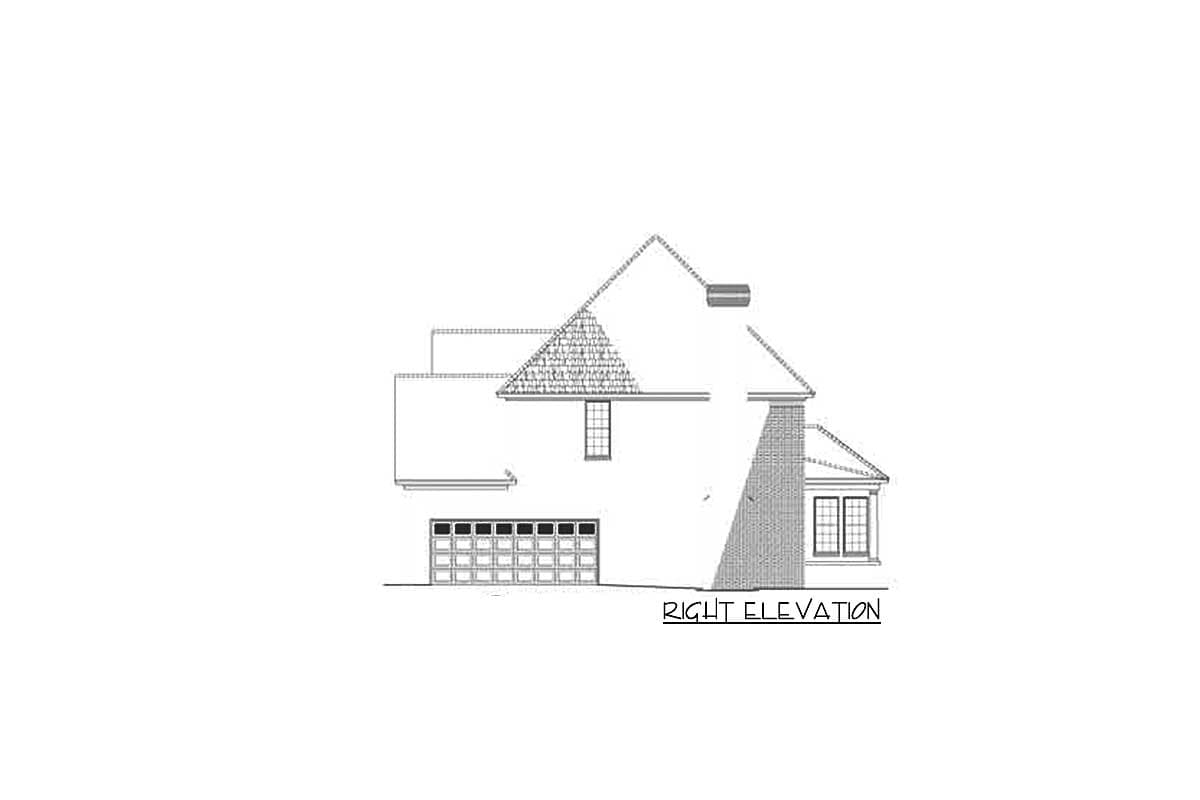

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,435 sq. ft.

1st Floor

1,245 sq. ft.

2nd Floor

1,190 sq. ft.

Bonus

184 sq. ft.

Porch, Front

51 sq. ft.

Porch, Rear

129 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 5"

Depth

51' 2"

Max Ridge Height

35' 0"

Garage

Type

Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Media Room

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

2,435 sq. ft.

1st Floor

1,245 sq. ft.

2nd Floor

1,190 sq. ft.

Bonus

184 sq. ft.

Porch, Front

51 sq. ft.

Porch, Rear

129 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 5"

Depth

51' 2"

Max Ridge Height

35' 0"

Garage

Type

Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Media Room

Optionally Finished Bonus Room
