About this Plan

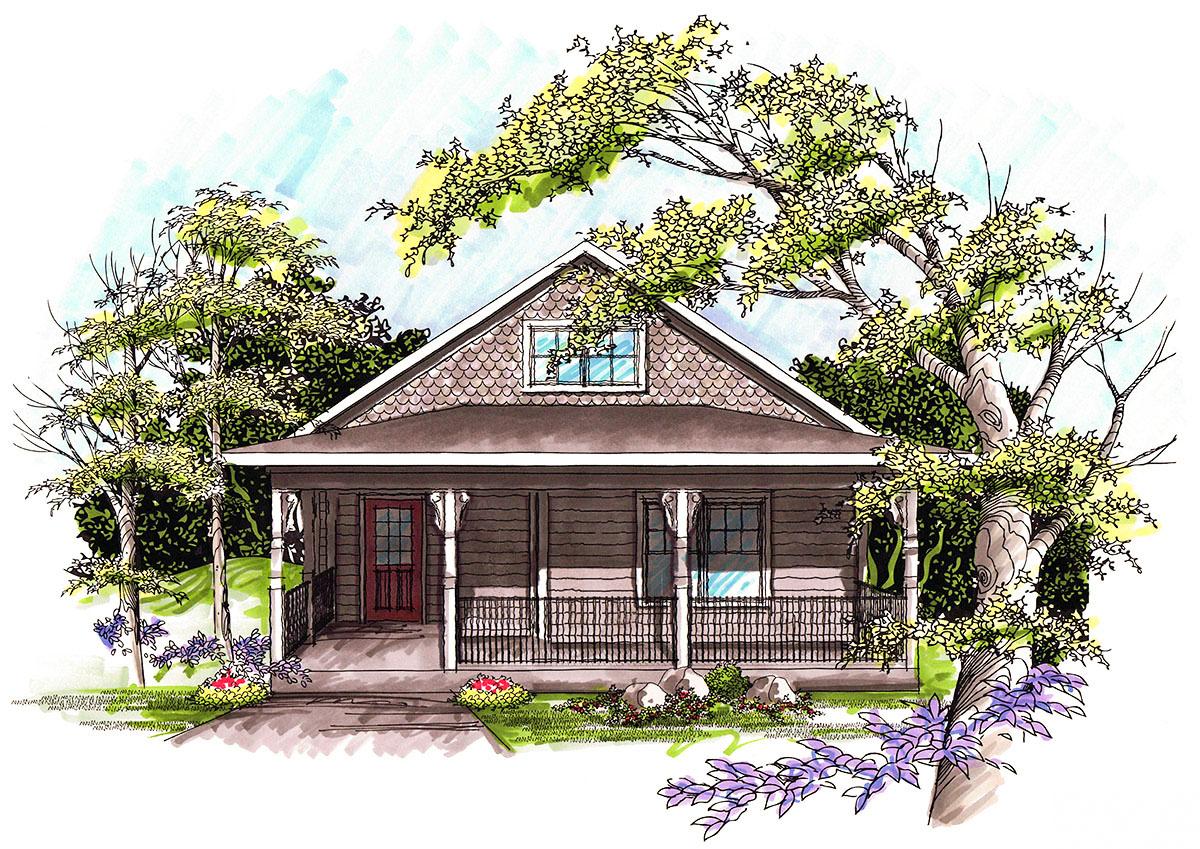

  • Traditional charm blends with arts and crafts details to create this ranch home that's sure to bring welcome attention.
  • The fabulous front porch is large enough for a swing and provides extra living area in which to enjoy warm summer evenings.
  • Inside, the great room, formal dining room and kitchen blend seamlessly together to form a living area that's large enough to entertain, but cozy enough to feel like home.
  • The bedrooms lie to the right of the entry and include a master suite complete with walk-in closet and private bath, and two additional bedrooms with a shared full bath just off the hall.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

See What's Included in this Plan...

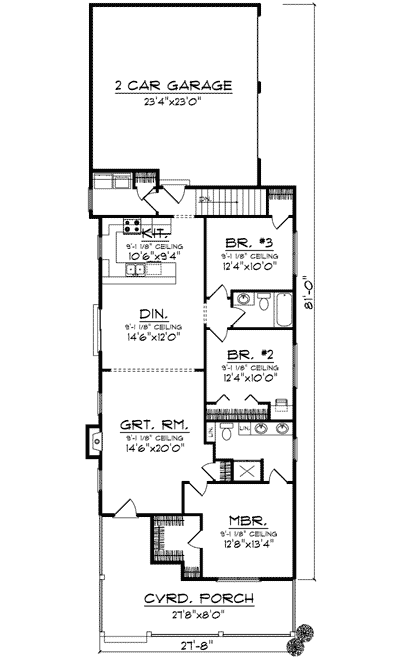

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,483 sq. ft.
  • 1st Floor: 1,483 sq. ft.
  • Screened Porch: 196 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Dimensions

  • Width: 27' 8"
  • Depth: 81' 0"
  • Max ridge height: 20' 0"

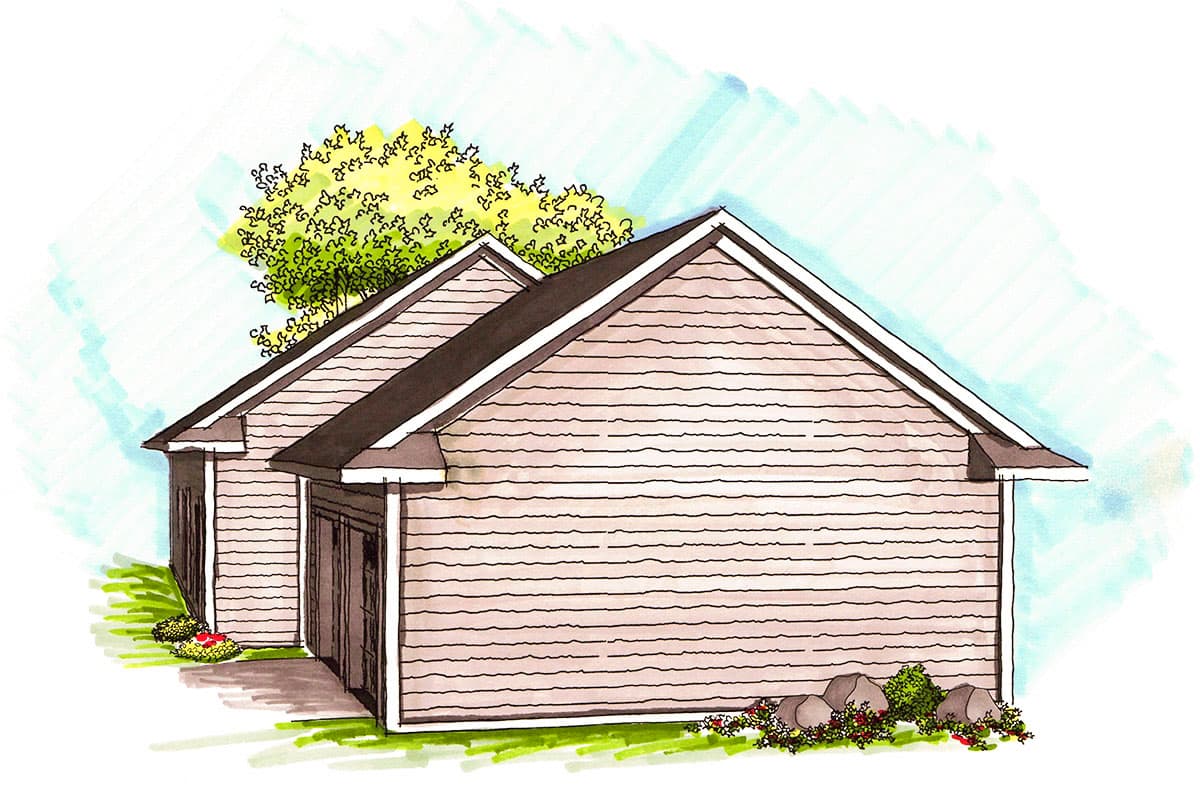

Garage

  • Type: Attached
  • Area: 593 sq. ft.
  • Details: 2 Cars
  • Location: Side

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
