Plan 52552WM

Traditional Cottage House Plan with 2 Split Bedrooms and Vaulted Great Room

Name: Plan 52552WM: Traditional Cottage House Plan with 2 Split Bedrooms and Vaulted Great Room
Brand: Architectural Designs
SKU: 52552WM
Price: 871.25 USD
Availability: InStock

Heated S.F.

592

Beds

Baths

Stories

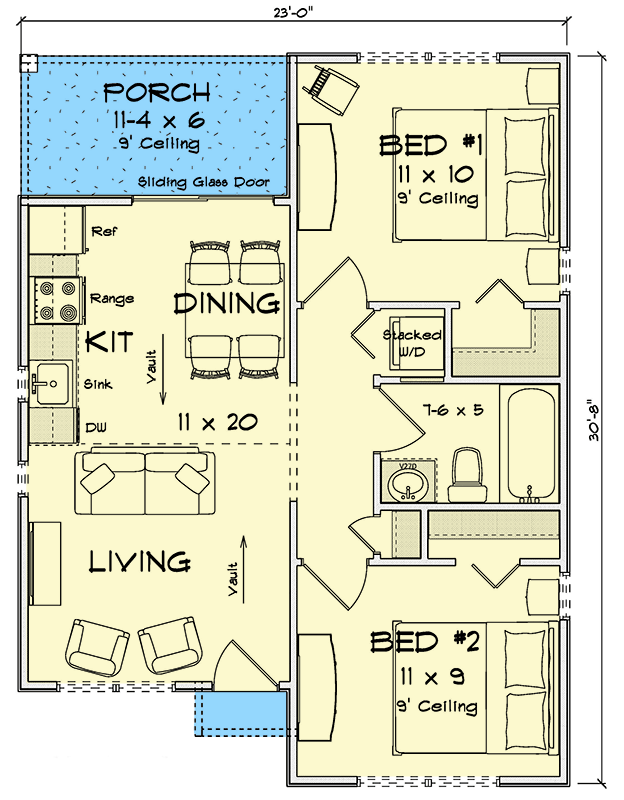

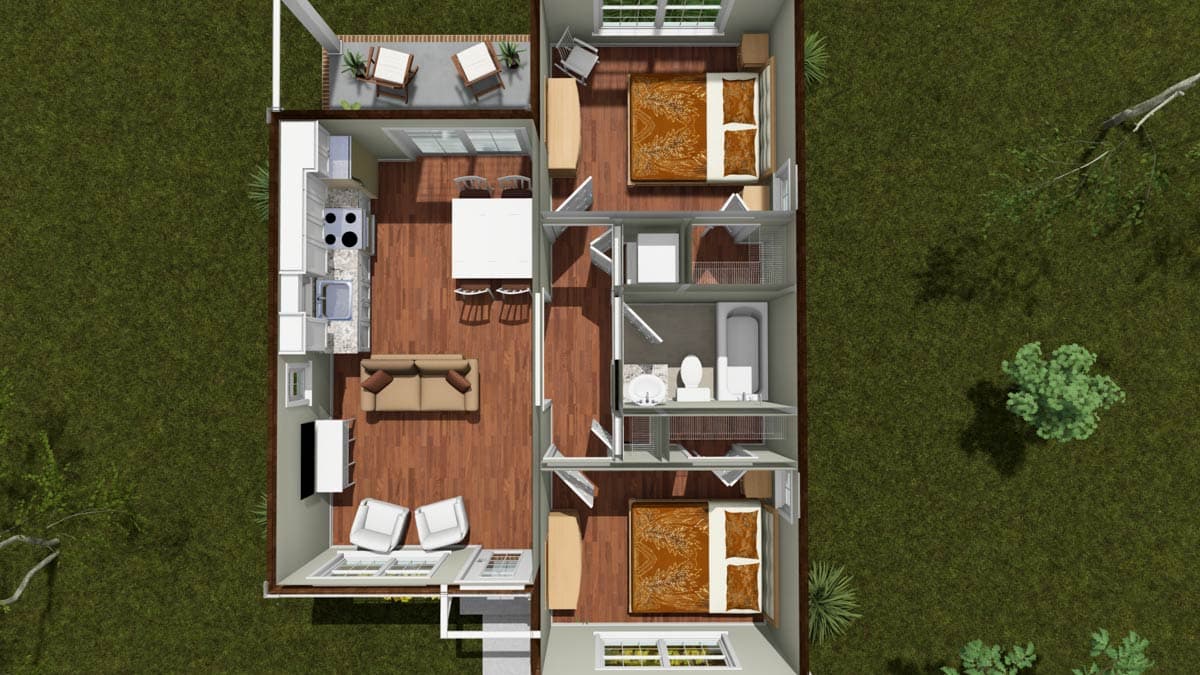

Floor Plan

Main Level

Plan Details

This charming Traditional Cottage House Plan offers 592 finished sq ft, 2 bedrooms, and 1 bath, featuring a classic gable roof and welcoming facade.
Step through the inviting entry into a thoughtfully designed layout, highlighted by a vaulted great room that creates an expansive feel.
The efficient floor plan maximizes space, with the main living areas flowing seamlessly for comfortable daily living and an airy ambiance.
The primary suite is conveniently located on the first floor, offering privacy and easy access, with a split-bedroom layout separating it from the secondary bedroom.
Enjoy the outdoors on the charming 68 sq ft rear porch, perfect for quiet mornings or relaxing evenings.

What's Included

Front elevation and construction notes
Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Full building section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
