Plan 710449BTZ

Traditional Cottage House Plan with 3 Beds, Bonus Room, and Vaulted Family Room

Name: Plan 710449BTZ: Traditional Cottage House Plan with 3 Beds, Bonus Room, and Vaulted Family Room
Brand: Architectural Designs
SKU: 710449BTZ
Price: 2515.0 USD
Availability: InStock

Heated S.F.

2,288

Beds

Baths

3.5

Stories

Cars

Floor Plan

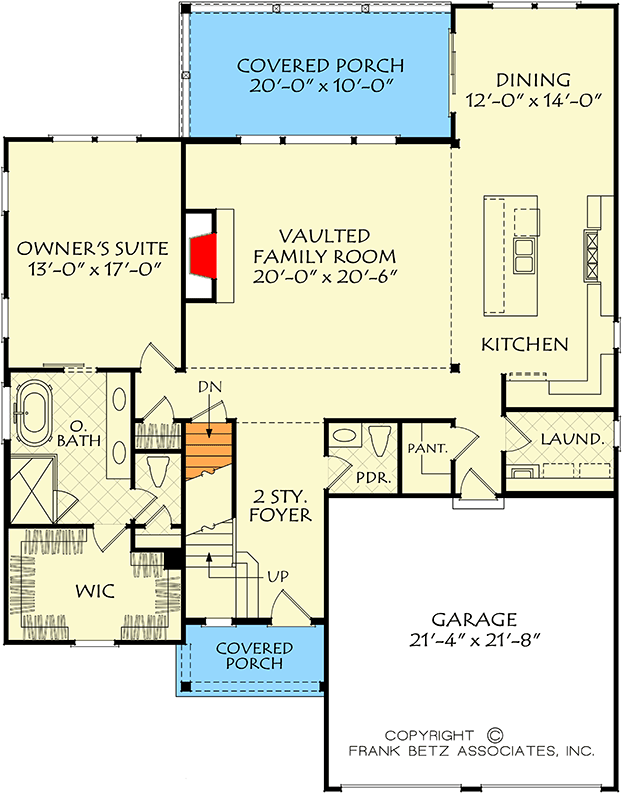

Main Floor

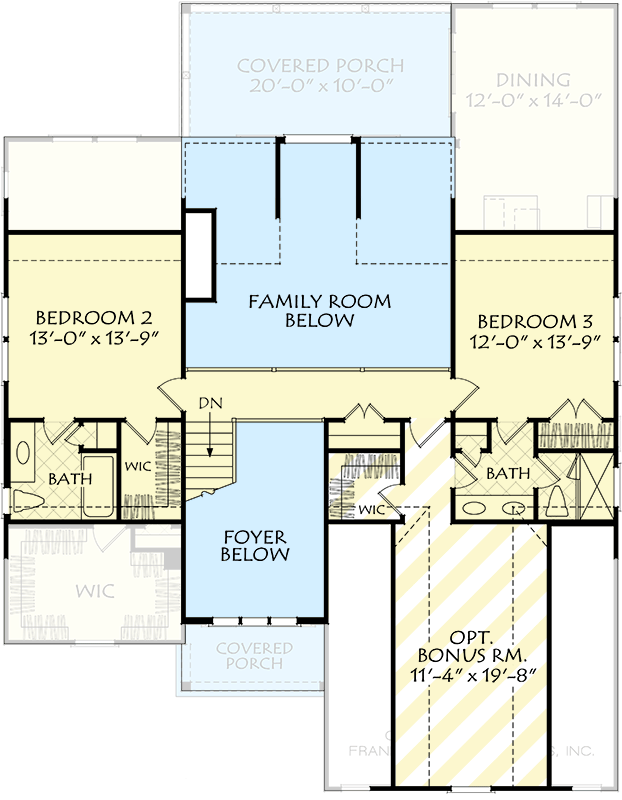

2nd Floor

Plan Details

Boasting 2,288 finished sq ft, 3 bedrooms, 3.5 baths, and a 481 sq ft 2-car front-entry garage, this Traditional Cottage House Plan features charming Craftsman influences.
Step onto the inviting covered front porch and into a grand two-story foyer, setting the stage for the home's thoughtful and connected layout.
The main level features an open-concept flow, seamlessly connecting the kitchen with its convenient butler's pantry to the dining area and a dramatic two-story family room, perfect for everyday living and entertaining.
The private primary suite is conveniently located on the first floor, offering a spacious bath and walk-in closet, while two additional bedrooms upstairs each enjoy their own private bathroom and walk-in closet for ultimate comfort.
Outdoor living extends from the main level with an expansive covered rear porch, ideal for morning coffee or evening relaxation.
A 299 sq ft optionally finished bonus room provides flexible space for a media room or hobby area, and a 1,618 sq ft unfinished walkout basement offers ample opportunity for future expansion.

What's Included

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
