Plan 52549WM

Traditional Craftsman House Plan: 3 Beds, 1-Car Garage, Split Layout

Heated S.F.
1,363
Beds
3
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 52549WM

Main Level
Main Level

Plan 52549WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

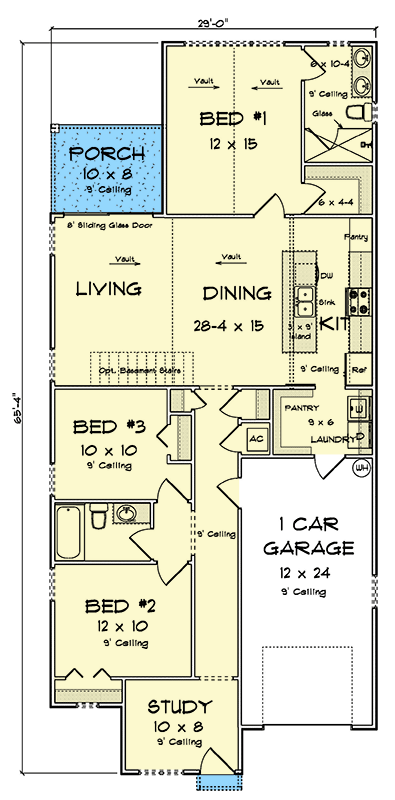

Plan 52549WM: Traditional Craftsman House Plan: 3 Beds, 1-Car Garage, Split Layout - Floor Plan - Main Level - Craftsman, Traditional

Plan Details

  • This 1,363 sq ft Craftsman Traditional House Plan features 3 bedrooms, 2 bathrooms, and a 292 sq ft one-car garage, complemented by a charming rear porch.
  • Step inside from the welcoming covered entry to discover a thoughtful layout, including a convenient mudroom and main-level laundry, ensuring practical daily living.
  • The heart of the home is the great room, boasting a soaring two-story ceiling that creates an expansive feel, seamlessly connecting to the kitchen which features a walk-in pantry.
  • Designed for privacy, the master suite is ideally situated on the first floor, offering a tranquil retreat separate from the two secondary bedrooms which are thoughtfully placed on the opposite side of the home.
  • Enjoy quiet moments or entertain guests on the inviting 80 sq ft rear porch, perfect for enjoying the outdoors.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,363 sq. ft.

1st Floor

1,363 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

29' 0"

Depth

65' 4"

Max Ridge Height

16' 9"

Garage

Type

Standard

Area

292 sq. ft.

Count

1 Cars

Entry Location

Front

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,363 sq. ft.

1st Floor

1,363 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

29' 0"

Depth

65' 4"

Max Ridge Height

16' 9"

Garage

Type

Standard

Area

292 sq. ft.

Count

1 Cars

Entry Location

Front

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry
