Traditional Craftsman Plan with Screened Porch and Elegant Ceiling Treatments

Plan 444051GDN

  • 3,378

    Heated s.f.

  • 4-5

    Beds

  • 5

    Baths

  • 1

    Stories

  • 3

    Cars

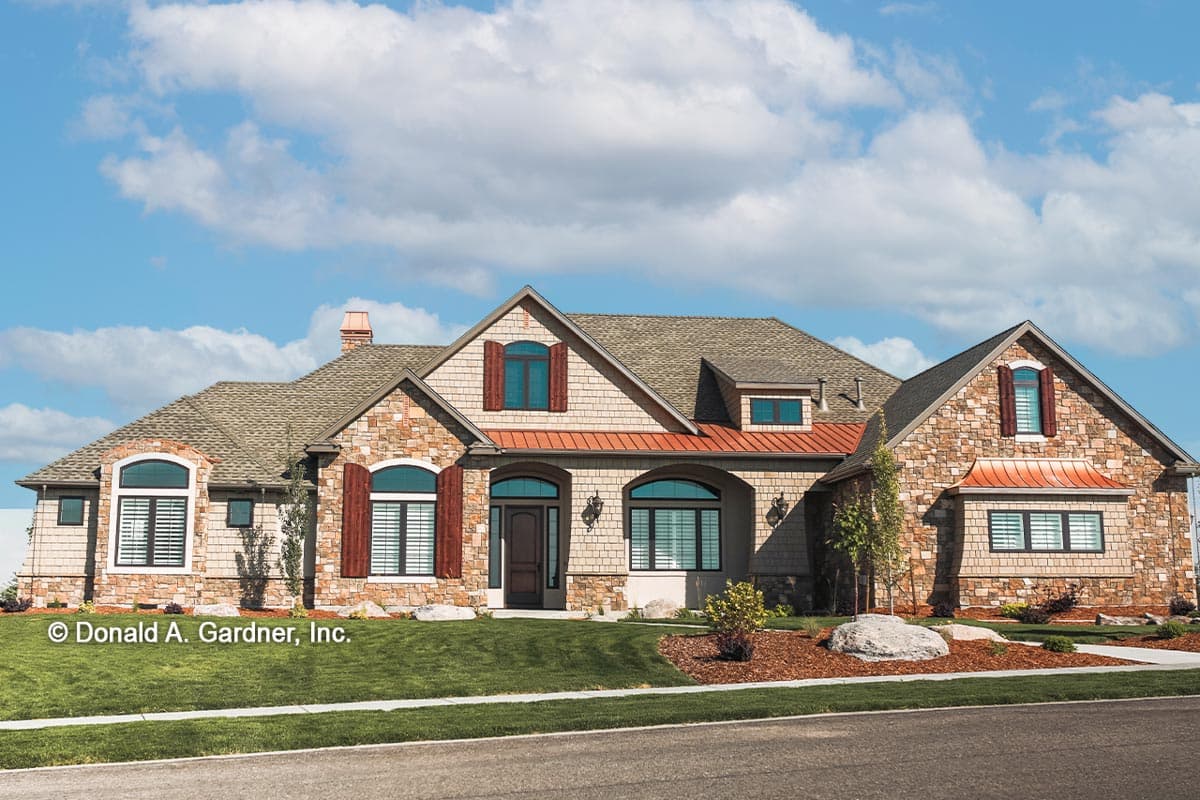

  • Classic shakes and stone compliment the metal roof accents on the exterior of this Traditional Craftsman plan.

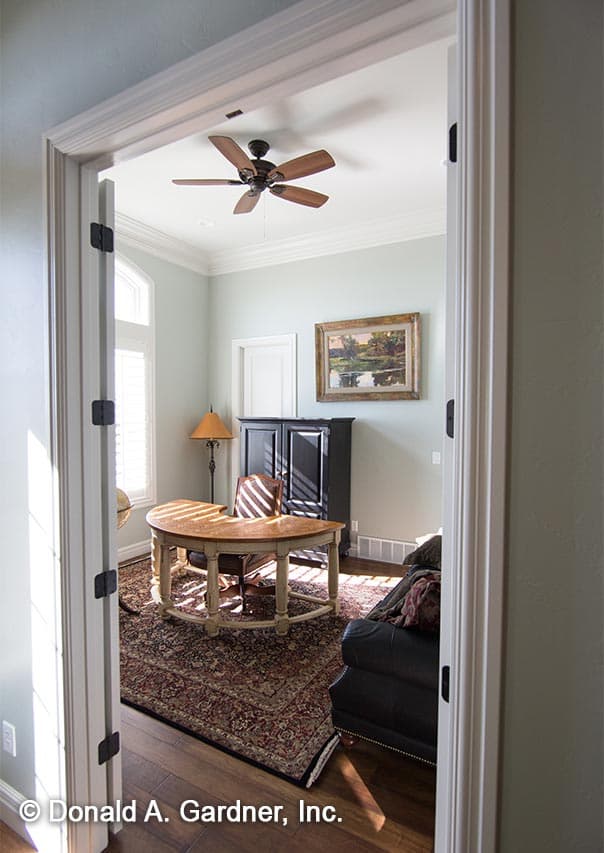

  • A thoughtful arrangement of public and private spaces results in this family-friendly design with a total of five bedrooms, including the bedroom/study.

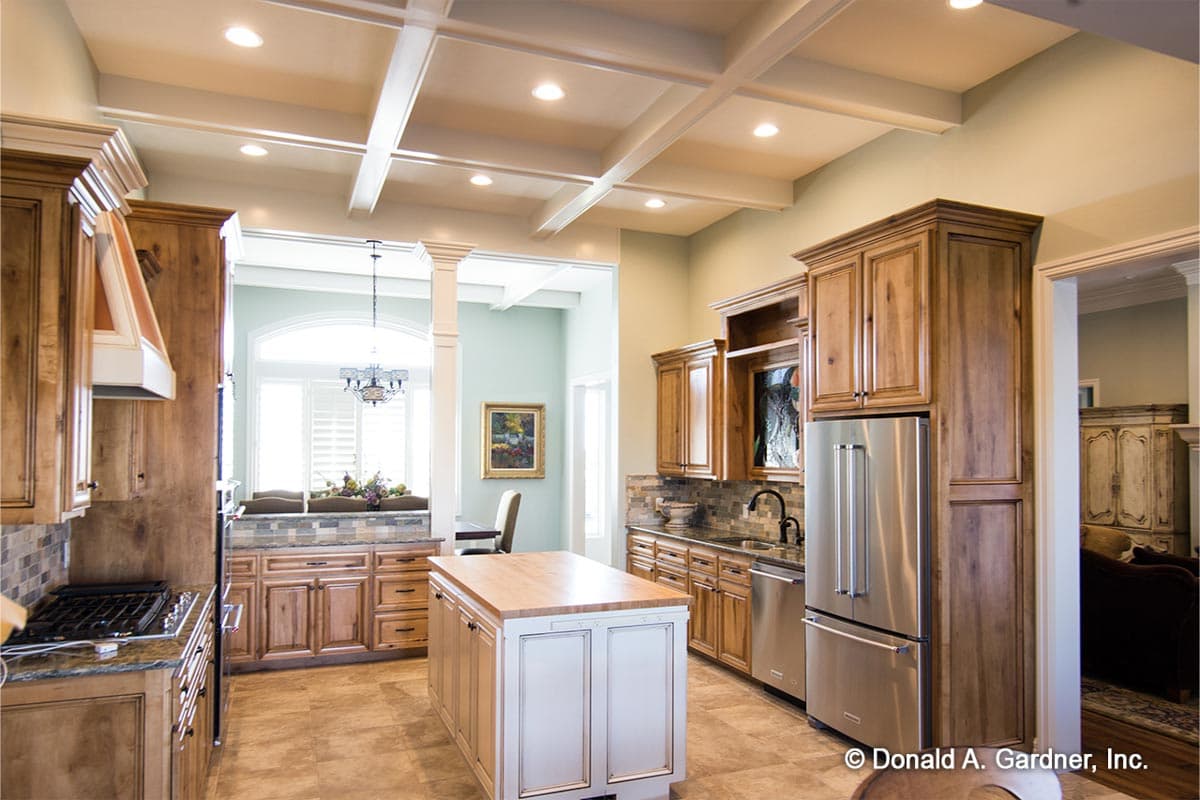

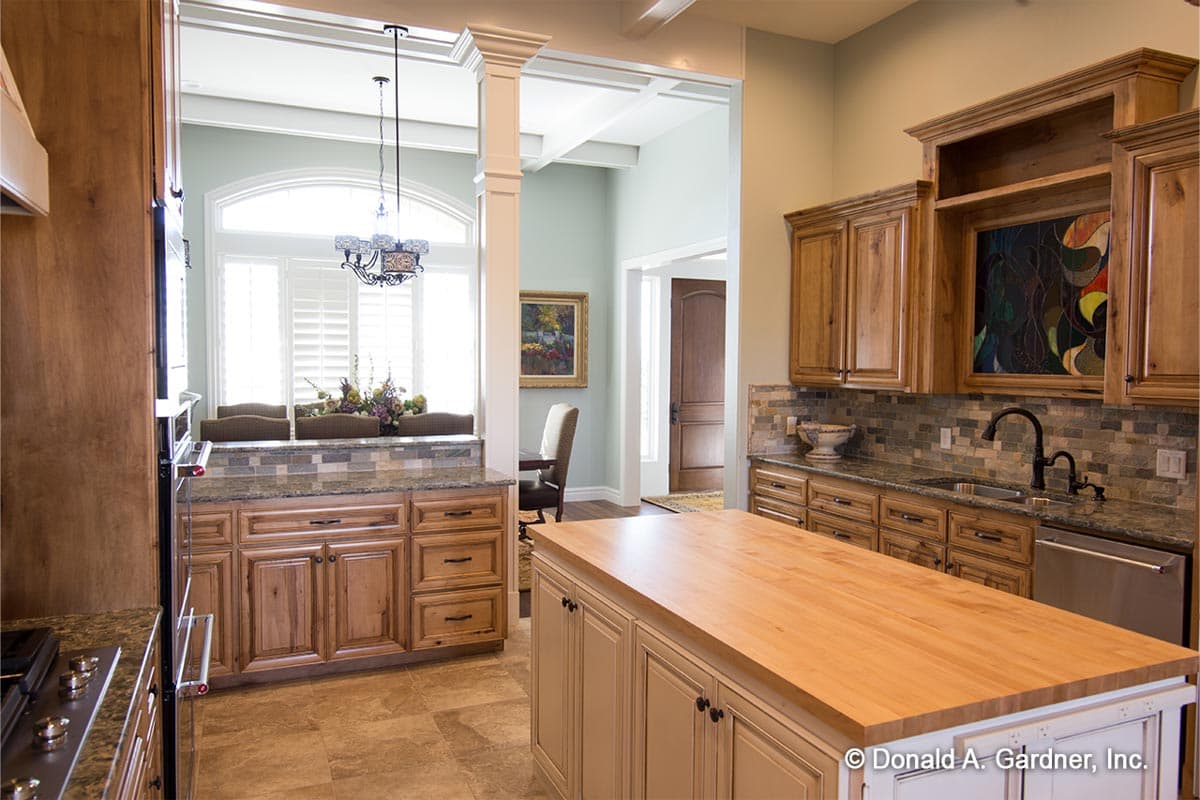

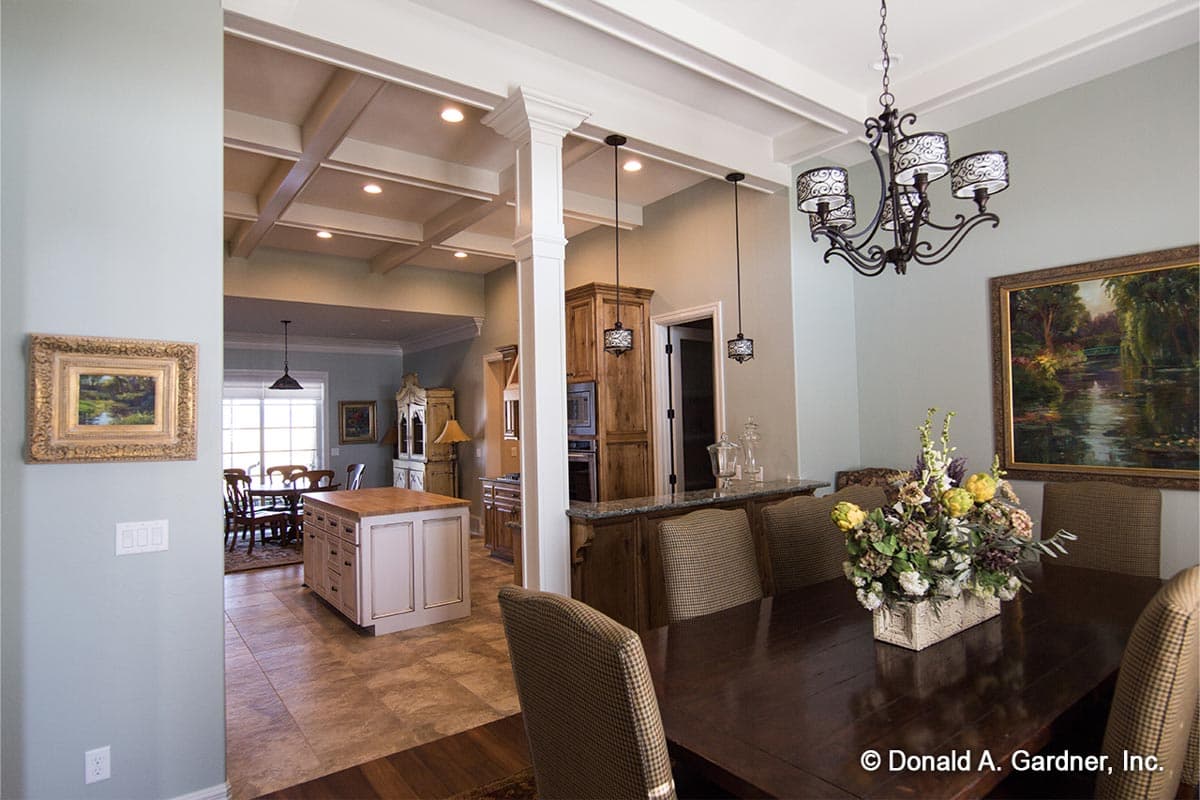

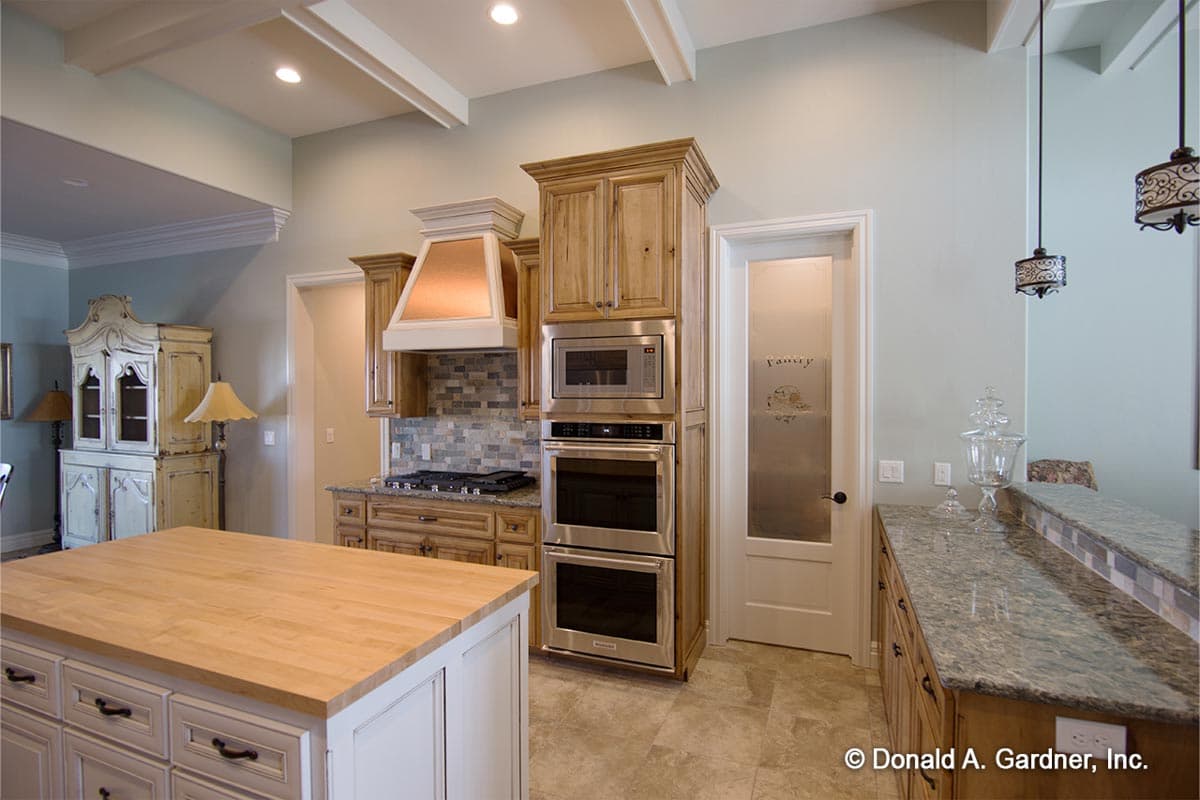

  • Special ceiling details and built-in niches display custom style in this ranch layout, which features a large kitchen with prep island and pantry, a three car garage with plenty of storage, and an oversized utility room.

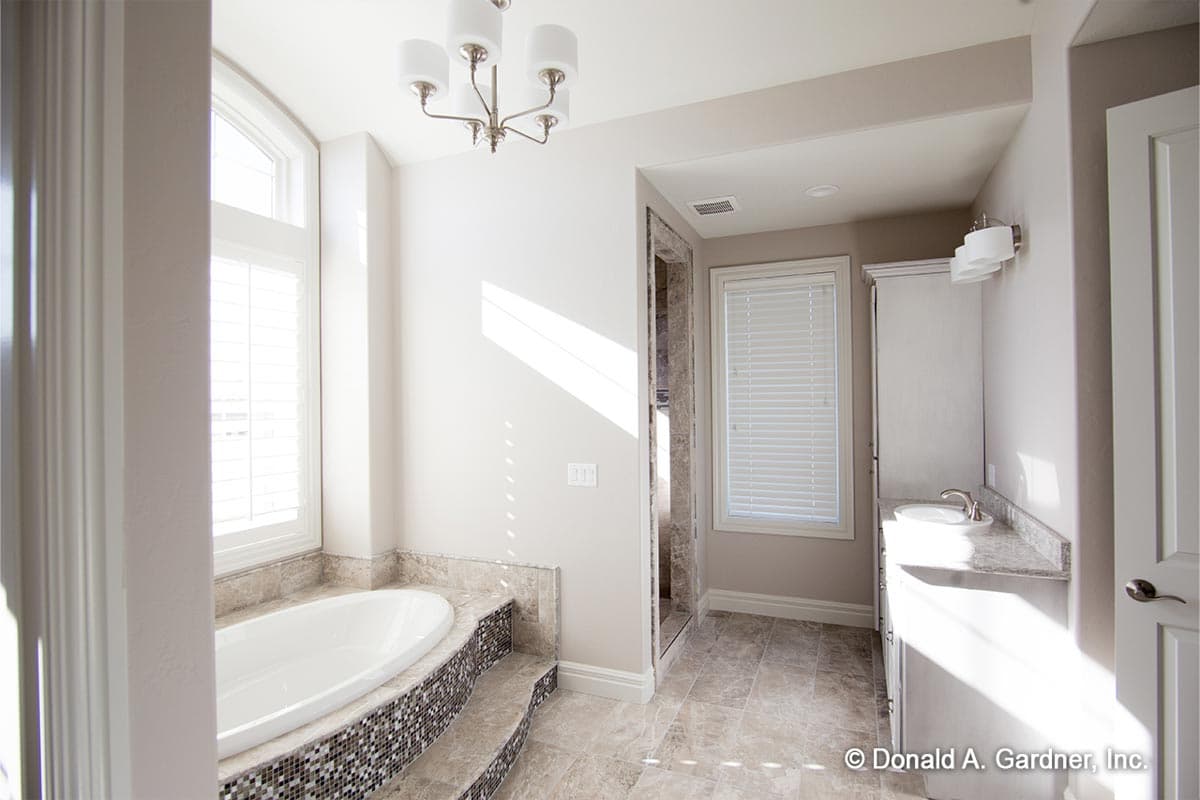

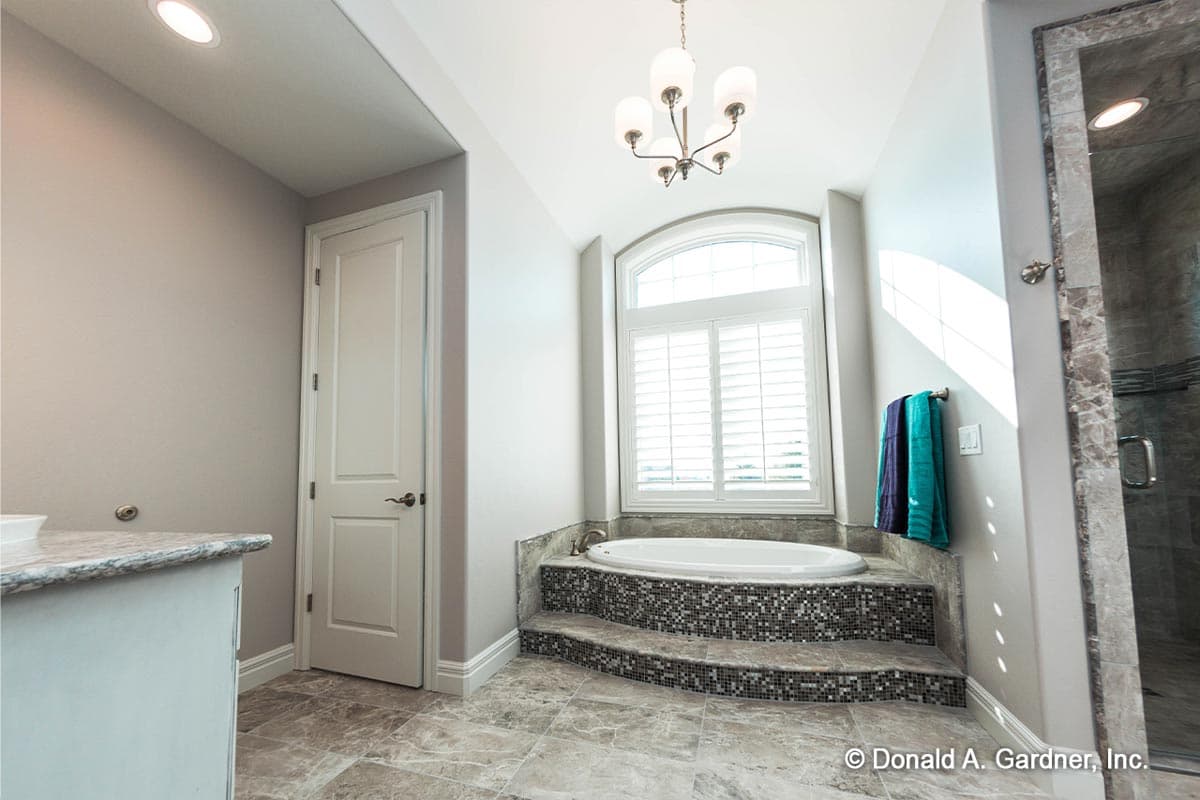

  • The master suite includes huge walk-in closets and a sun-drenched sitting room.

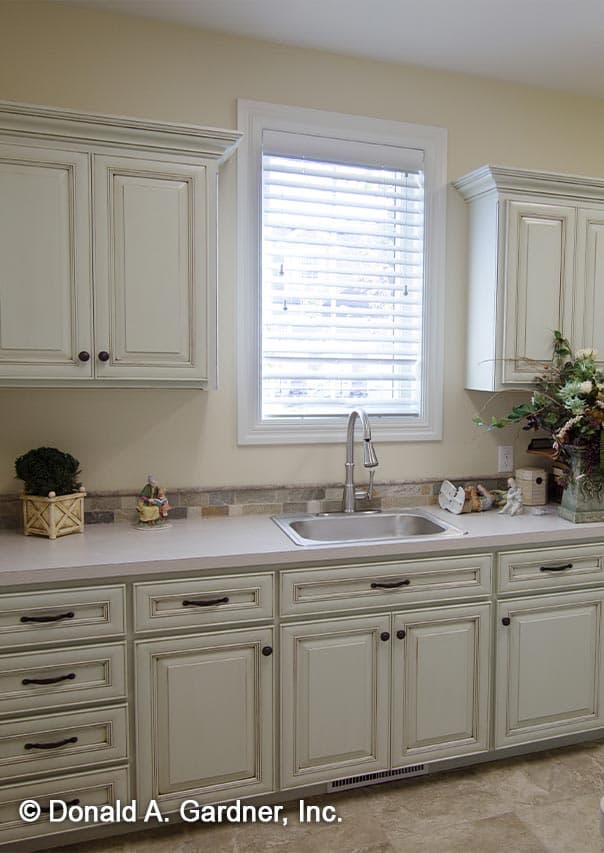

  • Three bedroom suites are tucked behind the 3-car garage and a sizable utility room can accommodate even the most active families.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

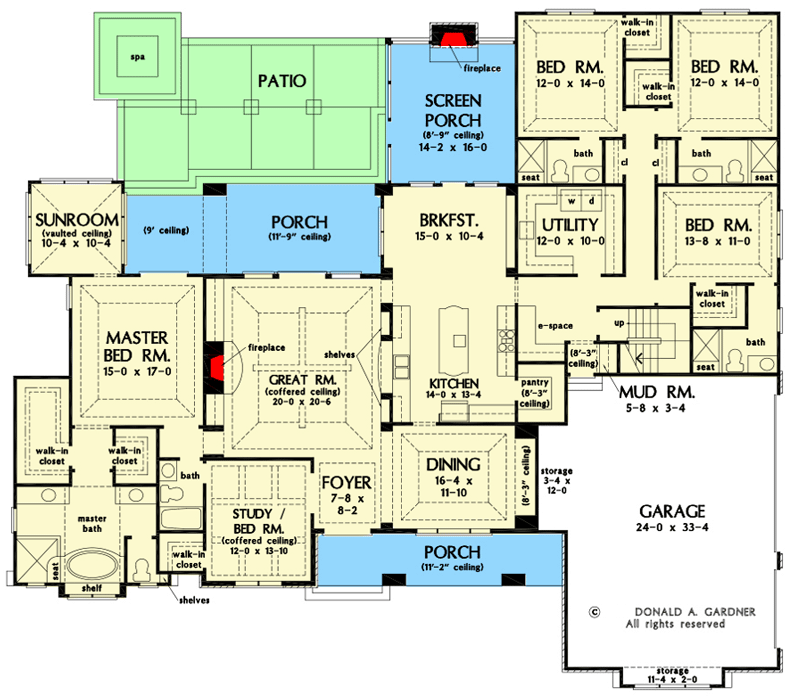

Traditional Craftsman Plan with Screened Porch and Elegant Ceiling Treatments - 444051GDN floor plan - Main Level

Basement Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

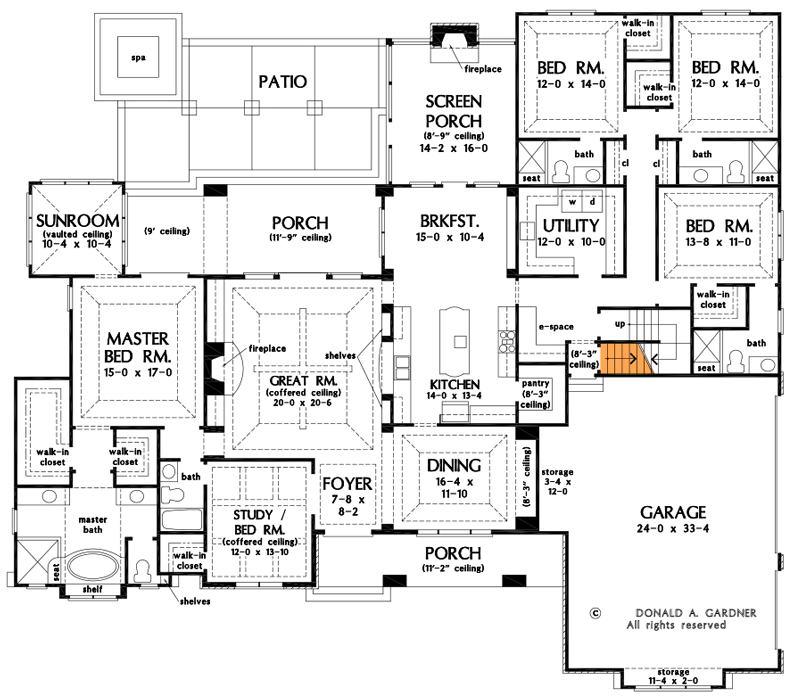

Traditional Craftsman Plan with Screened Porch and Elegant Ceiling Treatments - 444051GDN floor plan - Basement Option
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

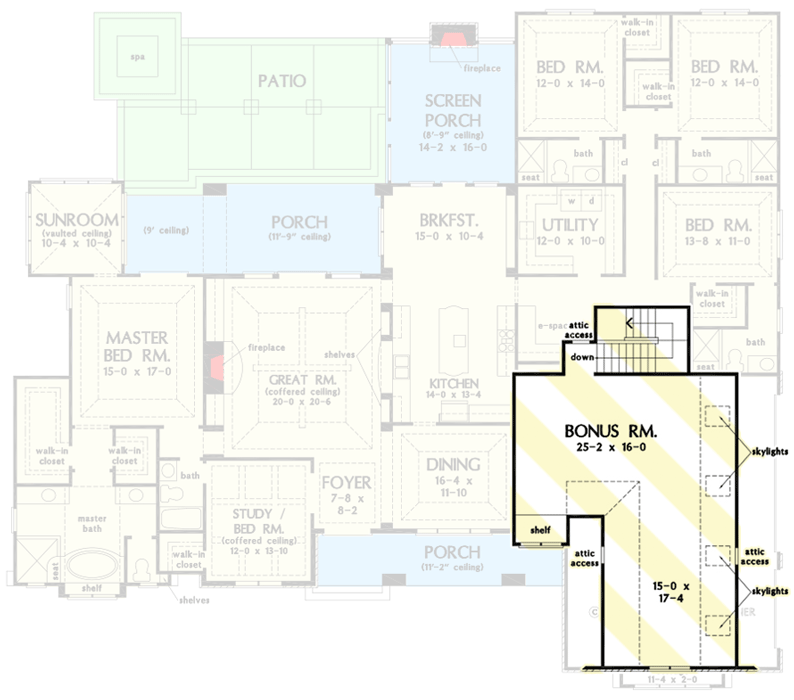

Traditional Craftsman Plan with Screened Porch and Elegant Ceiling Treatments - 444051GDN floor plan - Bonus Room

Traditional Craftsman Plan with Screened Porch and Elegant Ceiling Treatments

  • 3,378

    Heated s.f.

  • 4-5

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Basement Option

  • Bonus Room

Plan Details

Square Footage Breakdown

  • Total: 3,378 sq. ft.
  • 1st Floor: 3,378 sq. ft.

Dimensions

  • Width: 88' 6"
  • Depth: 77' 4"
  • Max ridge height: 34' 4"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 5

Garage

  • Type: Attached
  • Area: 890 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
