Plan 3900ST

Traditional Design with Sunken Great Room

Heated S.F.
2,101
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 3900ST

Main Level
Main Level
2nd Floor
2nd Floor

Plan 3900ST

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 3900ST: Traditional Design with Sunken Great Room - Floor Plan - Main Level - Traditional

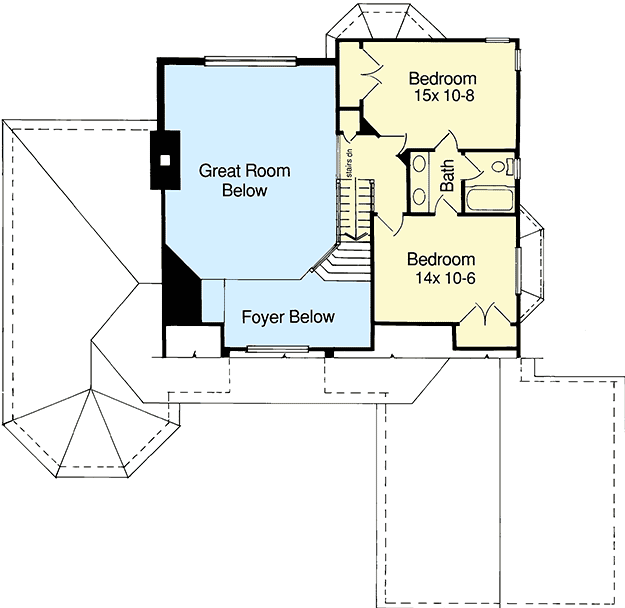

2nd Floor

Plan 3900ST: Traditional Design with Sunken Great Room - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Quoins, bricks, stone and a gazebo roof over the master bedroom distinguish this traditional design.
  • The foyer and sunken great room rise for two stories and are overlooked by the balcony above. A fireplace warms the great room as well as the adjoining breakfast nook and kitchen.
  • Bay windows let light stream into the breakfast nook and the formal dining room.
  • The secluded master suite features a five-way sloped ceiling in the bedroom, a walk-in closet and a corner garden tub.
  • Two upstairs bedrooms, each accessing a full bath, complete the design.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,101 sq. ft.

1st Floor

1,626 sq. ft.

2nd Floor

475 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 0"

Depth

60' 8"

Max Ridge Height

30' 4"

Garage

Type

Attached

Area

438 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,101 sq. ft.

1st Floor

1,626 sq. ft.

2nd Floor

475 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 0"

Depth

60' 8"

Max Ridge Height

30' 4"

Garage

Type

Attached

Area

438 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
