Plan 59491ND
Traditional Duplex Home Plan with Bonus Room
Heated S.F.
3,366
Units
2
Width
94'
Depth
50'
Cars
4
What's Included
Plan Details
  • This traditional duplex house plan will enchant you as you enter through the covered porch into the spacious great room with gas fireplace.
  • The nine foot ceilings and eight inch wooden columns create a warm ambiance for you and your guests.
  • Spend hours of quality time with loved ones in the convenient kitchen with bar and access to the rear grilling porch.
  • The upper floor with unique ceilings and two bedrooms with full bath is perfect for a children's suite.
  • You'll be able to relax away the day in your private master suite complete with master bath with 'his and her' vanities, whirlpool tub with glass blocks, and large walk-in closet.
Unit A
1,683 Sq. Ft.
1154 Sq. Ft. 1st Floor
529 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
380 Sq. Ft.
47' w 50' d 27' h
Unit B
1,683 Sq. Ft.
1154 Sq. Ft. 1st Floor
529 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Attached
380 Sq. Ft.
47' w 50' d 27' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

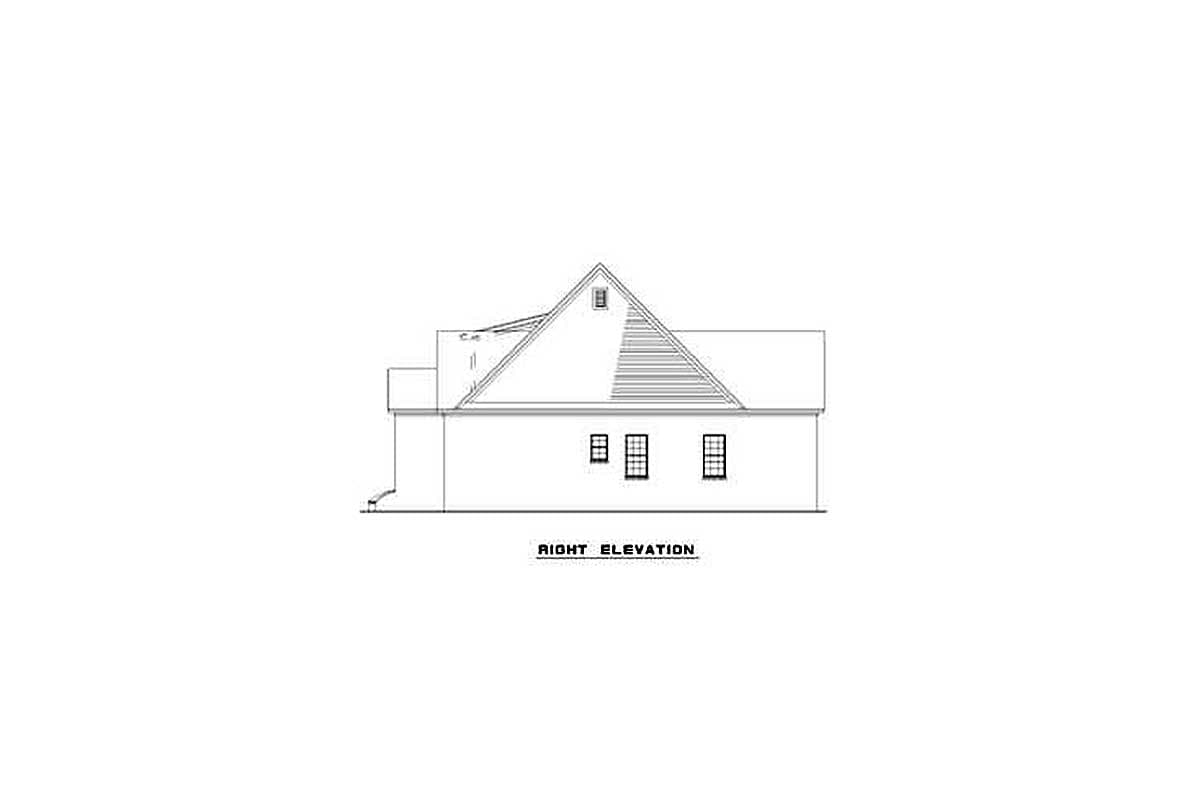

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional Duplex Home Plan with Bonus Room

  • 3,366

    Heated s.f.

  • 2

    Units

  • 94'

    Width

  • 50'

    Depth

Floor Plan

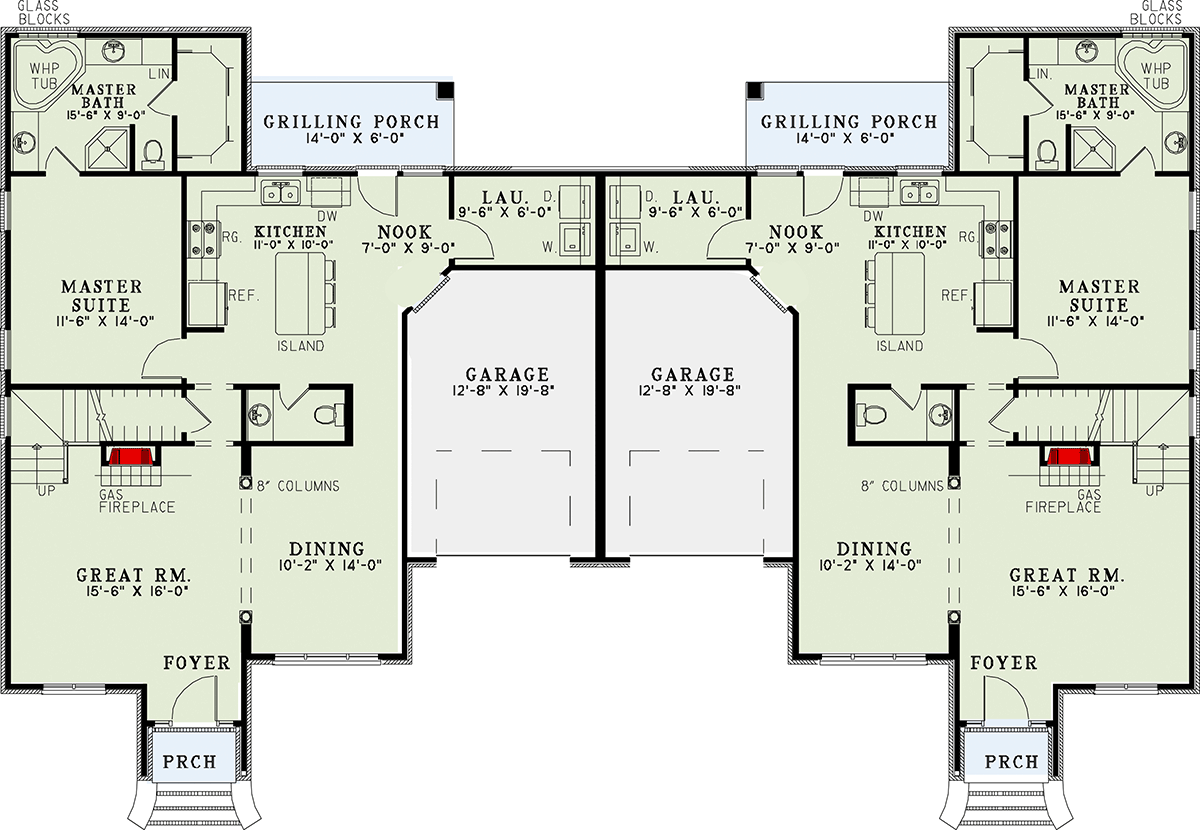

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,366 sq. ft.
  • 1st Floor: 2,308 sq. ft.
  • 2nd Floor: 1,058 sq. ft.

Dimensions

  • Width: 94' 0"
  • Depth: 50' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 760 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
