Plan 40553DB Traditional Duplex House Plan

2,429 2 76' 54' 4" 4
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Traditional Duplex House Plan

Plan 40553DB

  • 2,429

    Heated s.f.

  • 2

    Units

  • 76'

    Width

  • 54' 4"

    Depth

  • Each unit in this traditional duplex house plan gives you 2 beds, 2 baths, and 1,209 square feet of heated living space.

This house plan set has the following details:

  • General Notes

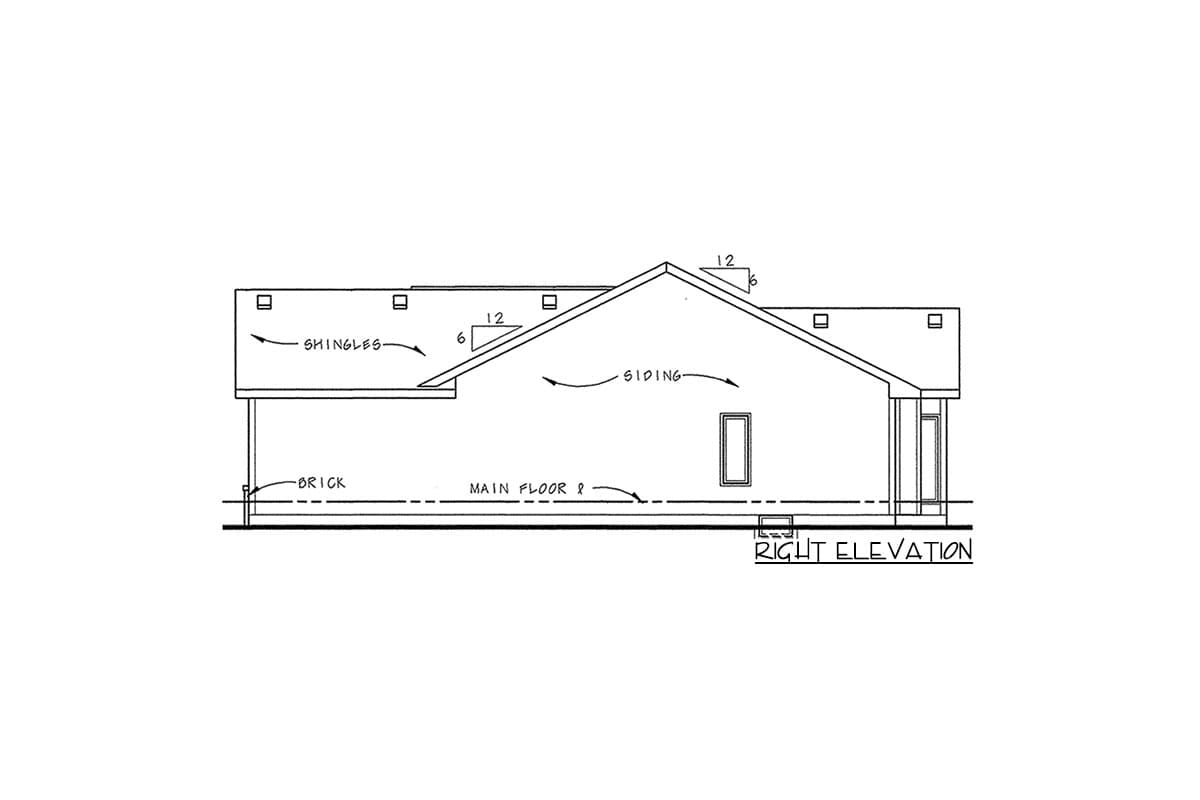

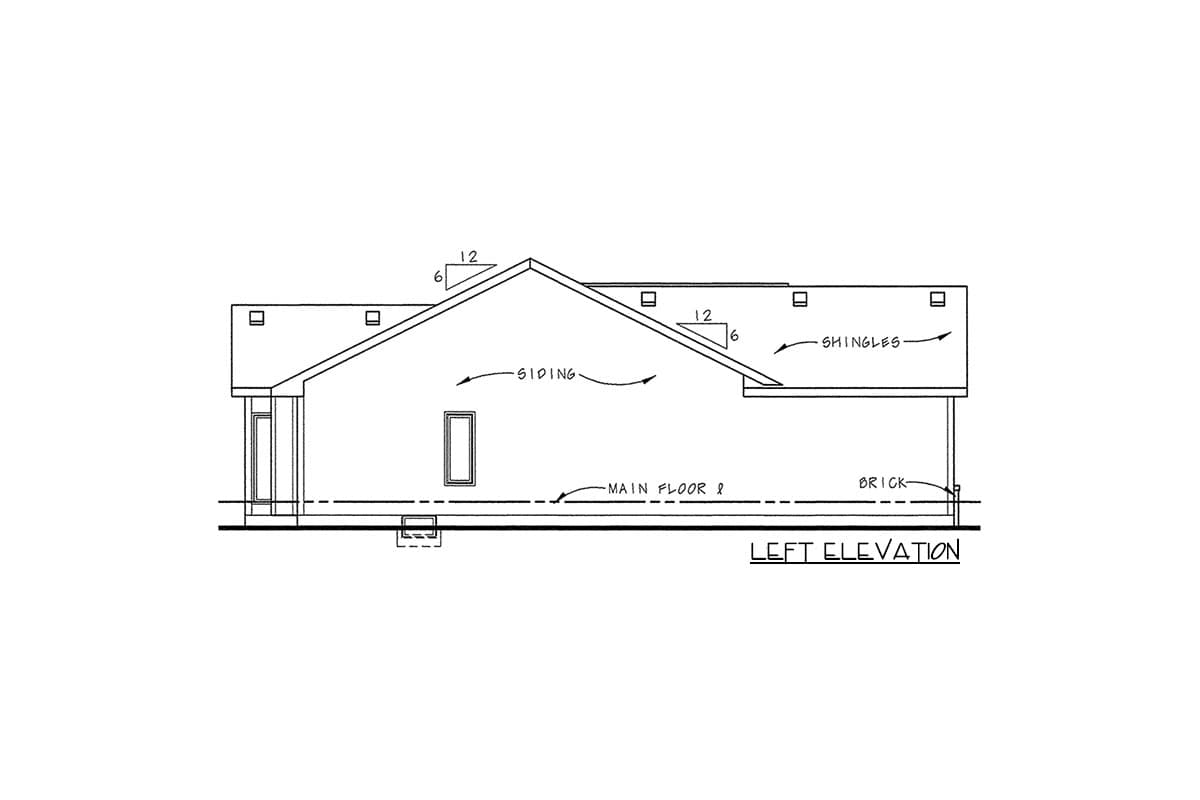

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Unit Details

A
1,209 Sq. Ft.
1209 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
2 Vehicle
Attached
461 Sq. Ft.
38' w 54' 4" d 21' 8" h
B
1,220 Sq. Ft.
1220 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
2 Vehicle
Attached
461 Sq. Ft.
38' w 54' 4" d 21' 8" h

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional Duplex House Plan - 40553DB floor plan - Main Level

Optional Master Bath

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional Duplex House Plan - 40553DB floor plan - Optional Master Bath

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,429 sq. ft.
  • 1st Floor: 2,429 sq. ft.
  • Porch, Front: 49 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 54' 4"
  • Max ridge height: 21' 8"

Garage

  • Type: Attached
  • Area: 922 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12

Special features

Traditional Duplex House Plan

  • 2,429

    Heated s.f.

  • 2

    Units

  • 76'

    Width

  • 54' 4"

    Depth

Floor Plan

  • Main Level

  • Optional Master Bath

Plan Details

Square Footage Breakdown

  • Total: 2,429 sq. ft.
  • 1st Floor: 2,429 sq. ft.

Dimensions

  • Width: 76' 0"
  • Depth: 54' 4"
  • Max ridge height: 21' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 922 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
