Plan 59310ND Traditional Duplex House Plan with 1698 Sq Ft 3 Bed 2 Bath Units

Traditional Duplex House Plan with 1698 Sq Ft 3 Bed 2 Bath Units

Plan 59310ND

  • 3,396

    Heated s.f.

  • 2

    Units

  • 105' 4"

    Width

  • 60' 6"

    Depth

  • Each unit of this duplex house plan gives you 3 beds, 2 baths and 1,698 square feet of heated living and a 380 square foot 2-car garage.
  • Entering through majestic columns into the traditional foyer, you instantly feel the grandeur of this traditional neighborhood home.
  • Imagine an evening of exquisite cuisine as you entertain your close friends and neighbors in the elegant dining room enhanced by ten foot ceilings and beautifully crafted columns.
  • A grilling porch, located off the spacious kitchen and breakfast room, allows occasional backyard barbecues with your neighbors.
  • After long workdays, retreat to a private master suite and relax in your whirlpool tub.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

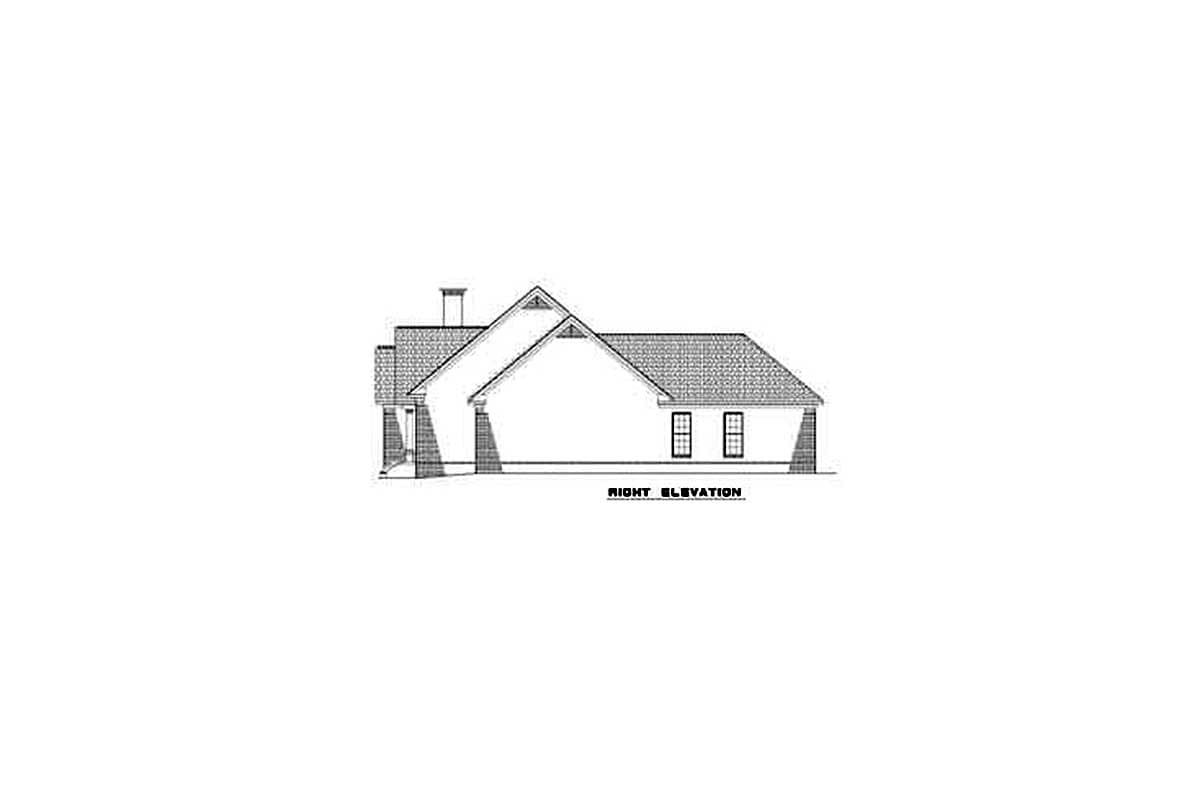

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional Duplex House Plan with 1698 Sq Ft 3 Bed 2 Bath Units - 59310ND floor plan - Main Level

Plan details

Traditional Duplex House Plan with 1698 Sq Ft 3 Bed 2 Bath Units

  • 3,396

    Heated s.f.

  • 2

    Units

  • 105' 4"

    Width

  • 60' 6"

    Depth

Buy This Plan
  • PDF - Single-Build $1,550
  • 5 Sets $1,650
  • 5 Sets + PDF $1,900
  • PDF - Unlimited Build $2,250
  • CAD Unlimited + PDF $3,100
  • View all purchase option online

About This Plan

  • Each unit of this duplex house plan gives you 3 beds, 2 baths and 1,698 square feet of heated living and a 380 square foot 2-car garage.
  • Entering through majestic columns into the traditional foyer, you instantly feel the grandeur of this traditional neighborhood home.
  • Imagine an evening of exquisite cuisine as you entertain your close friends and neighbors in the elegant dining room enhanced by ten foot ceilings and beautifully crafted columns.
  • A grilling porch, located off the spacious kitchen and breakfast room, allows occasional backyard barbecues with your neighbors.
  • After long workdays, retreat to a private master suite and relax in your whirlpool tub.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,396 sq. ft.
  • 1st Floor: 3,396 sq. ft.
  • Porch, Rear: 456 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 105' 4"
  • Depth: 60' 6"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 760 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
