Traditional Duplex House Plan with Symmetrical Layout and Walk-In Pantry

Heated S.F.
1,184
Units
2
Width
Depth
Tour

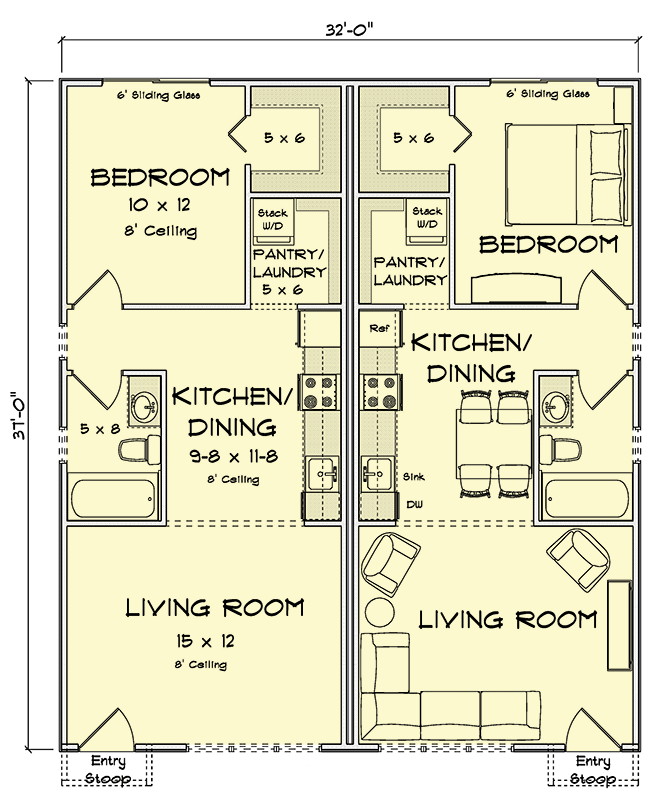

Floor Plan

Plan 52538WM

Main Level
Main Level

Plan 52538WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52538WM: Traditional Duplex House Plan with Symmetrical Layout and Walk-In Pantry - Floor Plan - Main Level - Traditional

Plan Details

  • This practical duplex offers a total of 1,184 square feet, with each of the two symmetrical single-level units featuring 1 bedroom and 1 full bath, all wrapped in a charming traditional exterior.
  • Each unit welcomes you with a small covered stoop and a full-lite entry door, leading into a bright space filled with natural light from front-facing windows.
  • The open flow between the kitchen and living area provides clear sightlines, making the main room feel spacious and inviting.
  • The kitchen is designed as the gathering spot, complete with a central island, a generous walk-in pantry, and seamless connection to the dining and living zone.
  • Bedroom placement is thoughtful, with each unit’s primary suite tucked quietly at the rear for a true private wing, while bathrooms are set conveniently nearby.
  • A main-level laundry space just off the living zone serves as a handy drop zone for daily organization tasks.
  • Out back, each unit enjoys a private patio area, functioning as an outdoor extension of the living space and perfect for quiet relaxation.
Unit A & B
Heated Area
592Sq. Ft.
592 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
16'width
37'depth

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,184 sq. ft.

1st Floor

1,184 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

37' 0"

Max Ridge Height

16' 6"

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,184 sq. ft.

1st Floor

1,184 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

37' 0"

Max Ridge Height

16' 6"

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
