Plan 59367ND Traditional Duplex with 2-Story 1609 Square Foot 3 Bed Units

3,218 2 68' 0" 66' 8" 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Traditional Duplex with 2-Story 1609 Square Foot 3 Bed Units

Plan 59367ND

  • 3,218

    Heated s.f.

  • 2

    Units

  • 68' 0"

    Width

  • 66' 8"

    Depth

  • This traditional duplex house plan features dormers, tiered gables and plenty of entertaining area. Ten-foot boxed ceilings grace the great room and master suite while columns are used in the foyer and dining room areas.
  • Each unit gives you 1,609 square feet of heated living (1,131 sq. ft. on the main floor and 478 sq. ft. on the second floor), 3 beds and 2.5 baths.
  • For privacy and convenience, the master suite is located on the main level and has a large walk-in closet within the luxurious private bathroom.
  • Upstairs are two bedrooms that share a full bath and plenty of attic storage.
  • The double garage (510 sq. ft.) has a storage room in addition to a side-entry golf cart bay.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

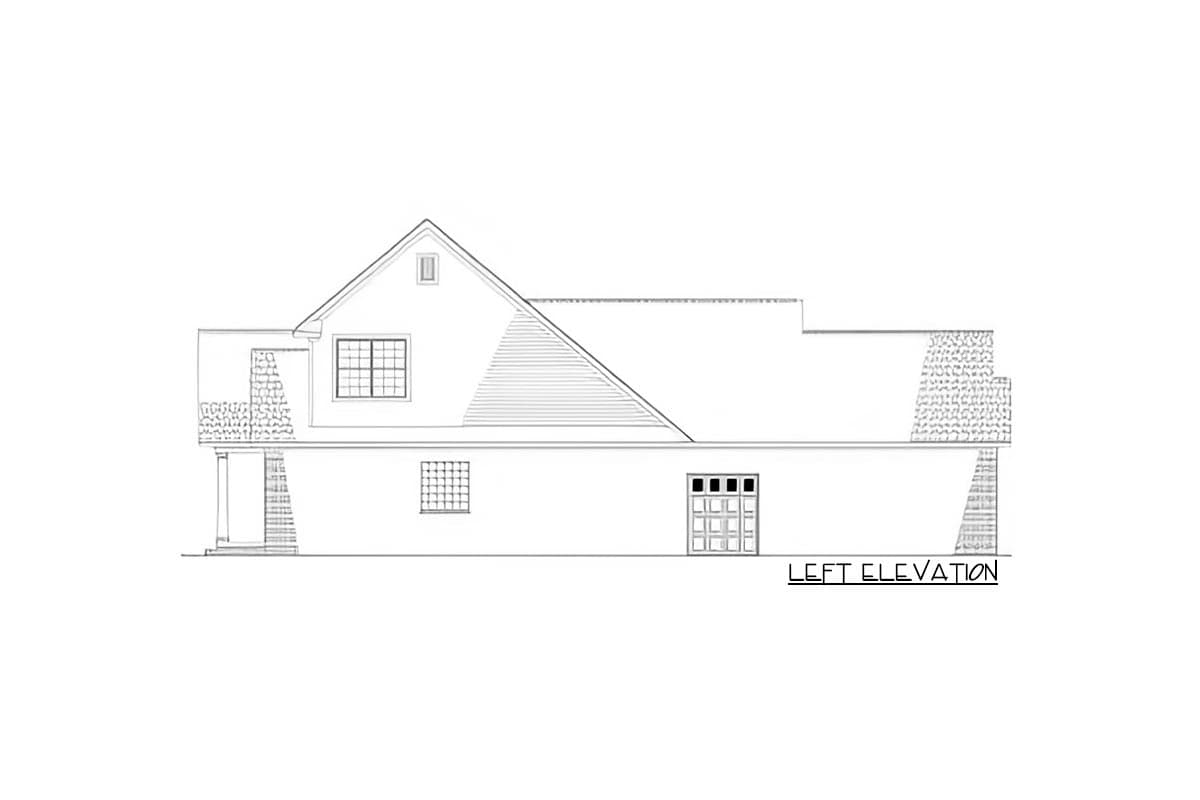

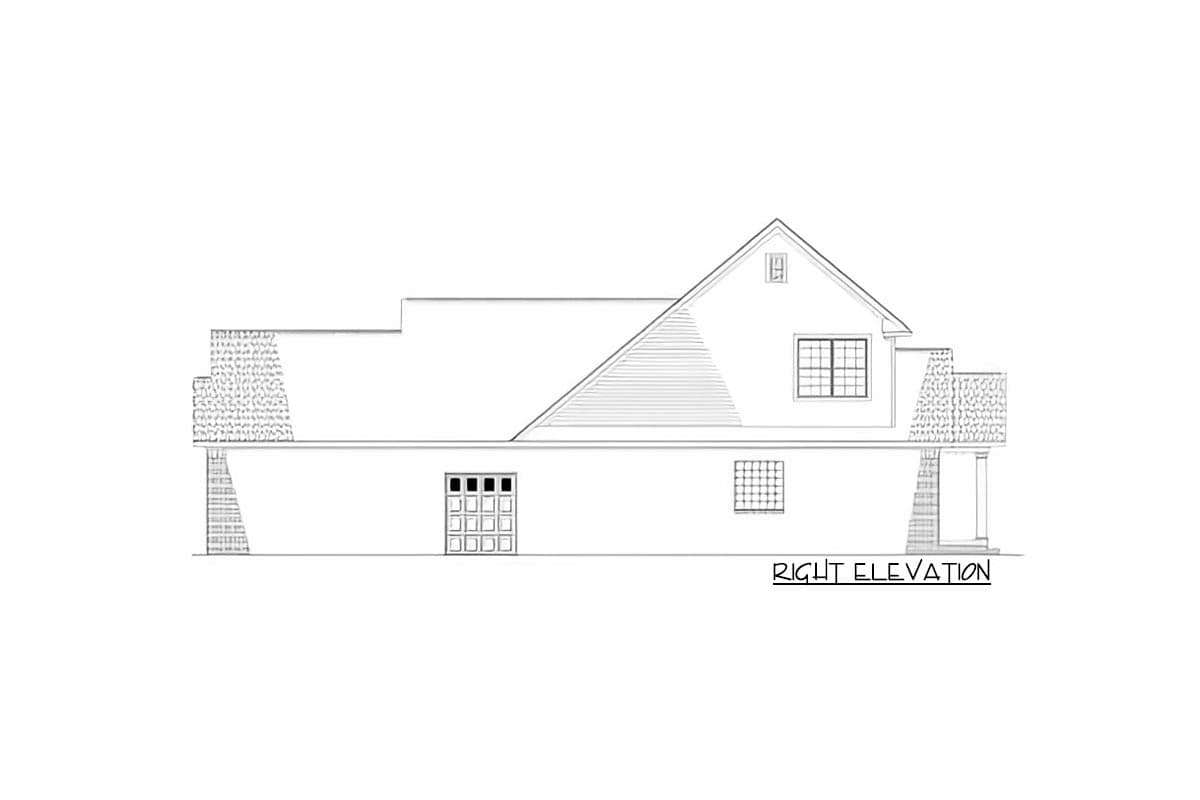

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional Duplex with 2-Story 1609 Square Foot 3 Bed Units - 59367ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional Duplex with 2-Story 1609 Square Foot 3 Bed Units - 59367ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,218 sq. ft.
  • 1st Floor: 2,262 sq. ft.
  • 2nd Floor: 956 sq. ft.
  • Porch, Rear: 160 sq. ft.
  • Porch, Front: 52 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 66' 8"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 1020 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Traditional Duplex with 2-Story 1609 Square Foot 3 Bed Units

  • 3,218

    Heated s.f.

  • 2

    Units

  • 68' 0"

    Width

  • 66' 8"

    Depth

Buy This Plan
  • PDF - Single-Build $1,550
  • 5 Sets $1,650
  • 5 Sets + PDF $1,900
  • PDF - Unlimited Build $2,250
  • CAD Unlimited + PDF $3,100
  • View all purchase option online

About This Plan

  • This traditional duplex house plan features dormers, tiered gables and plenty of entertaining area. Ten-foot boxed ceilings grace the great room and master suite while columns are used in the foyer and dining room areas.
  • Each unit gives you 1,609 square feet of heated living (1,131 sq. ft. on the main floor and 478 sq. ft. on the second floor), 3 beds and 2.5 baths.
  • For privacy and convenience, the master suite is located on the main level and has a large walk-in closet within the luxurious private bathroom.
  • Upstairs are two bedrooms that share a full bath and plenty of attic storage.
  • The double garage (510 sq. ft.) has a storage room in addition to a side-entry golf cart bay.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,218 sq. ft.
  • 1st Floor: 2,262 sq. ft.
  • 2nd Floor: 956 sq. ft.
  • Porch, Rear: 160 sq. ft.
  • Porch, Front: 52 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 66' 8"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 1020 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
