Plan 72847DA

Traditional Four Bedroom Home Makes Room for Large Family

Heated S.F.
1,835
Beds
4
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 72847DA

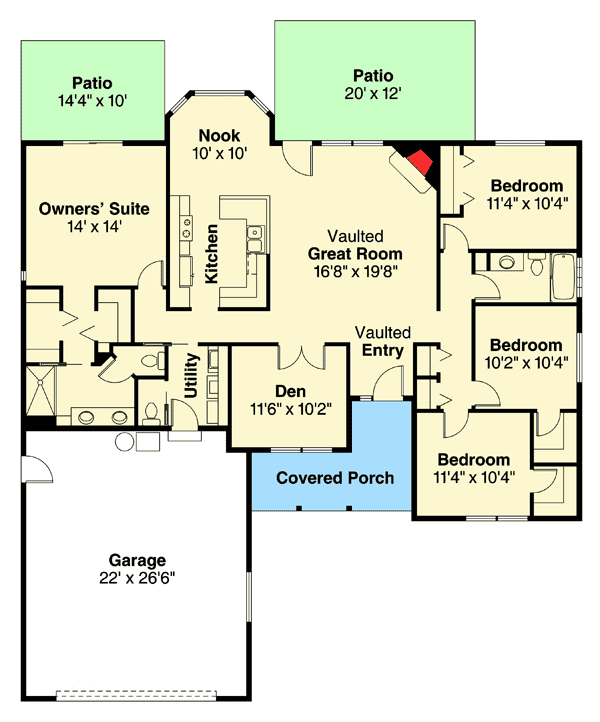

Main Level
Main Level

Plan 72847DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 72847DA: Traditional Four Bedroom Home Makes Room for Large Family - Floor Plan - Main Level - Traditional

Plan Details

  • Framed posts, brick veneer and painted shutters give a traditional look to the otherwise contemporary home. This four-bedroom home is well-suited for a family with children. Gathering spaces are large, and the master suite is isolated from secondary bedrooms.
  • Entering, you step right into the vaulted great room. Centrally located, this is the hub of family activity, and it's partially open to the kitchen and nook. A direct-vent gas fireplace nestles into the rear corner, next to a wall of glass: two windows and a door. So this space is bright, as well as spacious. The door provides access to a wide patio spanning more than half of the rear.
  • Double doors near the front open into another large room. Possibilities for use include a den, home entertainment center, a study area with one or more computers, exercise and hobby room, or formal dining room. Your choice.
  • Cupboard and counter spaces are ample in the roomy kitchen. Its sunny nook is cozy and naturally bright - a great place for gradually becoming more fully awake in the morning, and sharing family meals.
  • A passthrough utility room connects kitchen and garage. Across from the laundry appliances is a small WC. Family members with muddy feet can quickly dash in and out without tracking up any carpets.
  • An extra thick layer of insulation buffers sound between the kitchen and master suite. Notable features here include: his-n-hers walk-in closets, oversized shower, dual vanity and private toilet.
  • The home's three secondary bedrooms share yet another bathroom, this one with glass blocks on the exterior wall, over the bathtub. Both of the front bedrooms have walk-in closets.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

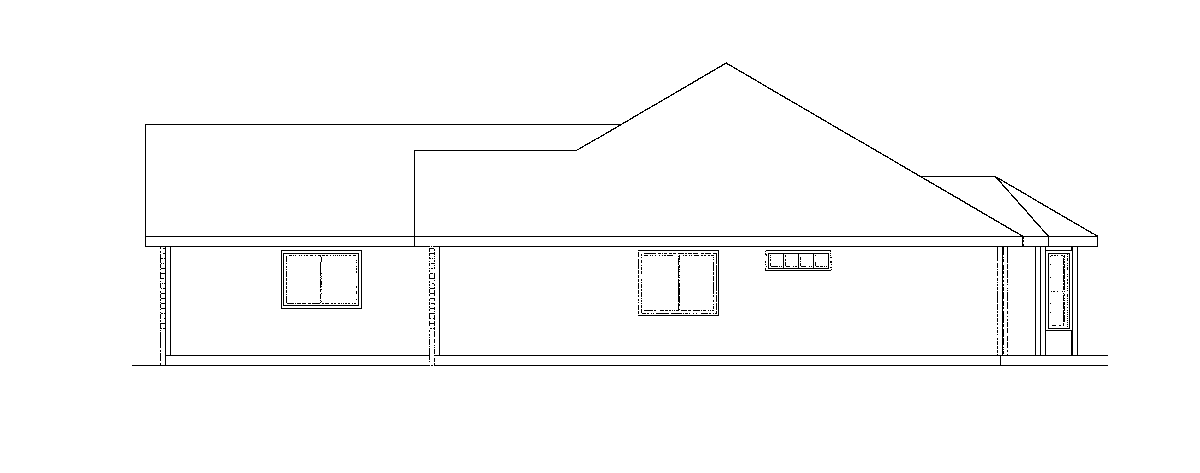

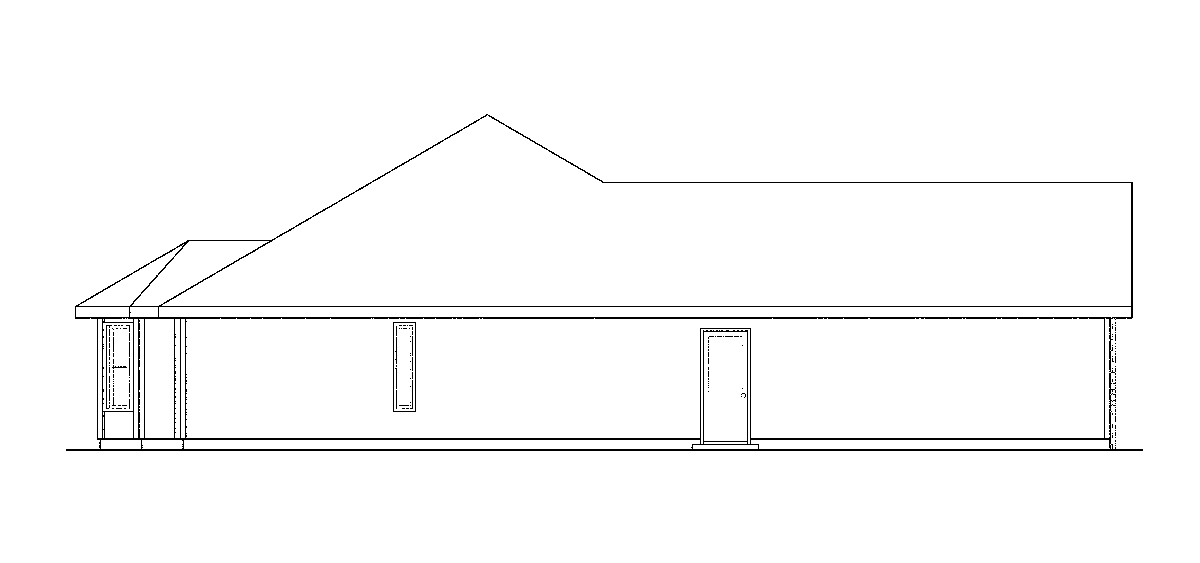

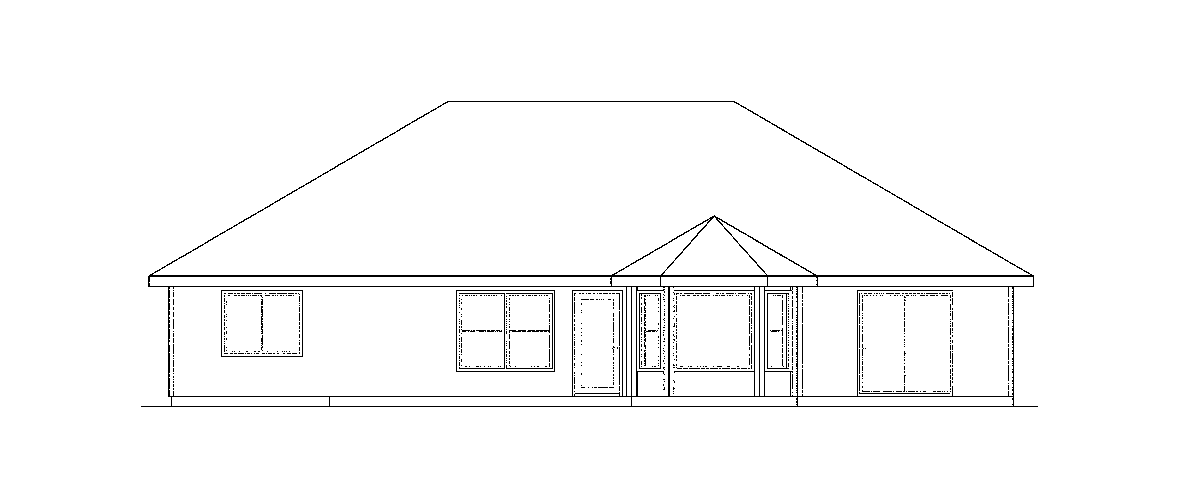

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,835 sq. ft.

1st Floor

1,835 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

61' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

7 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Den

Formal Dining

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,835 sq. ft.

1st Floor

1,835 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

61' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

7 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Den

Formal Dining

Library/Study

Master Suite - 1st Floor
