Plan 444098GDN
Traditional Home Plan with 16'11" Cathedral Ceiling
Heated S.F.
1,457
Beds
2-3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This traditional home plan has an an attractive exterior with tall gables, clapboard siding and loads of windows including half circle transoms. Inside, it delivers a split bedroom layout.
  • Come in off the 16'8" by 5'8" front porch and discover a variety of custom-styled touches, such as 10'6" tray ceilings in the dining room and master bedroom. The kitchen is convenient to the great room with both are under a 16'11" cathedral ceiling. The great room has a fireplace and French doors that lead to the 10'10" by 8' rear porch.
  • The master suite is complete with a walk-in closet and master bath, while an additional bedroom and study/bedroom are located on the opposite side of the home plan and are separated by a full bath.
  • The convenient front entry garage has a versatile bonus room above for expansion purposes.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional Home Plan with 16'11" Cathedral Ceiling

  • 1,457

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

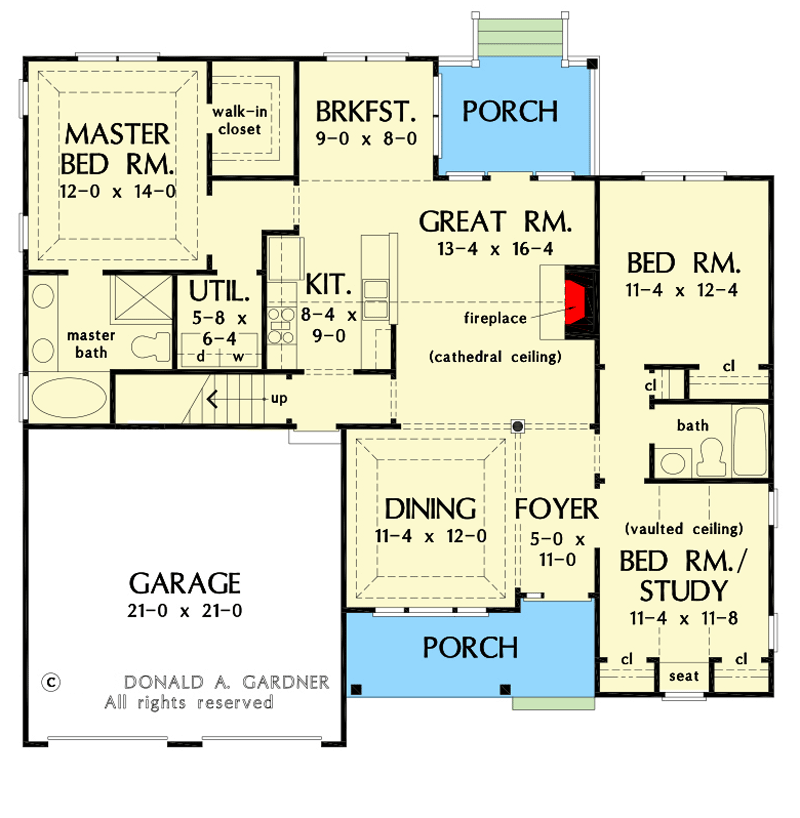

  • Main Level

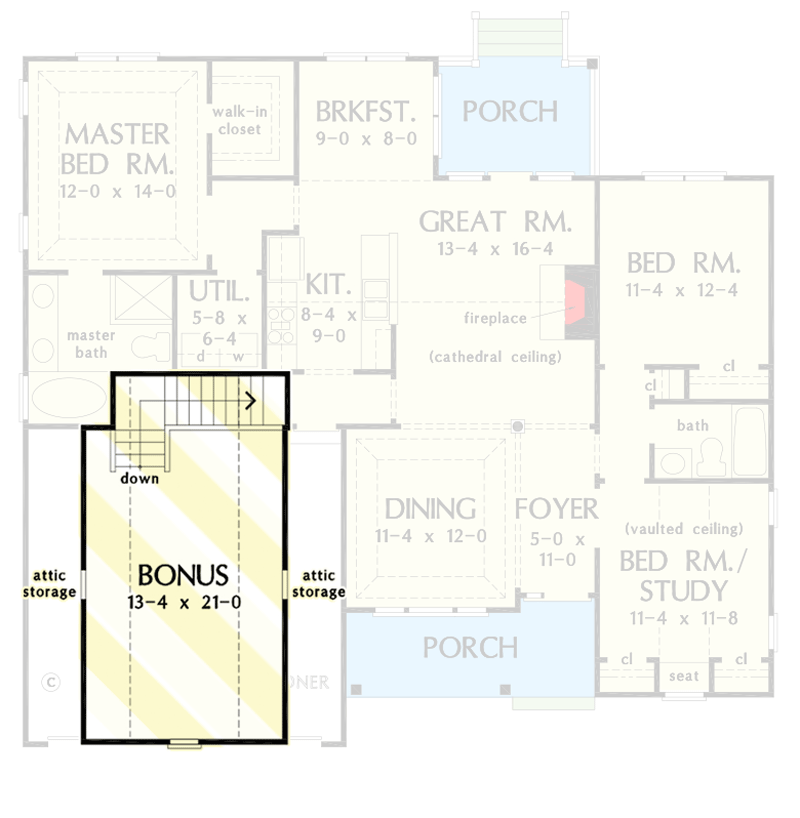

  • Bonus Room

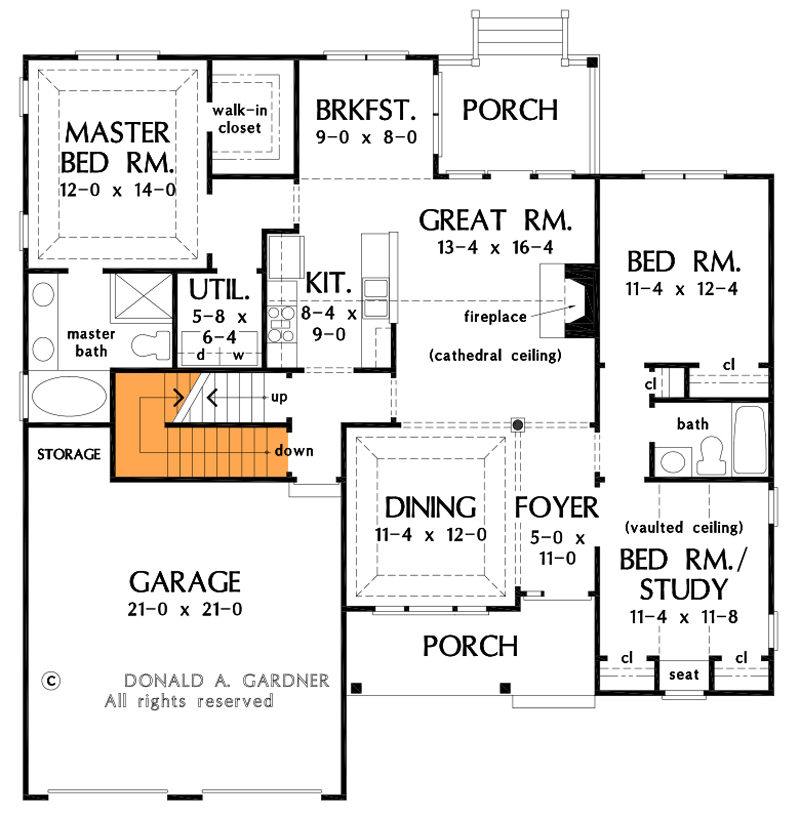

  • Basement Option

Plan Details

Square Footage Breakdown

  • Total: 1,457 sq. ft.
  • 1st Floor: 1,457 sq. ft.

Dimensions

  • Width: 50' 4"
  • Depth: 46' 4"
  • Max ridge height: 24' 8"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 11 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Traditional Home Plan with 16'11" Cathedral Ceiling

  • 1,457

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Traditional Home Plan with 16'11" Cathedral Ceiling

  • 1,457

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,457 sq. ft.
  • 1st Floor: 1,457 sq. ft.

Dimensions

  • Width: 50' 4"
  • Depth: 46' 4"
  • Max ridge height: 24' 8"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 11 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

    Main Level
