Plan 52205WM

Traditional Home Plan with Flex Room

1,958 3 2.5 2 2
Pageloader

Traditional Home Plan with Flex Room

Plan 52205WM

  • 1,958

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Clean, simple lines and a covered front entry give this Traditional home plan its curb appeal.
  • A flex room off the foyer can be used as a den, study or formal dining room.
  • The open floor plan in the main living area allows wonderful views from room to room.
  • No stairs to climb, for the master suite is located on the first floor.
  • Two bedrooms and a game room occupy the second floor.

Each plan includes the following:

  • Cover page:  Features the front elevation and informative reference sections including general notes and design criteria.

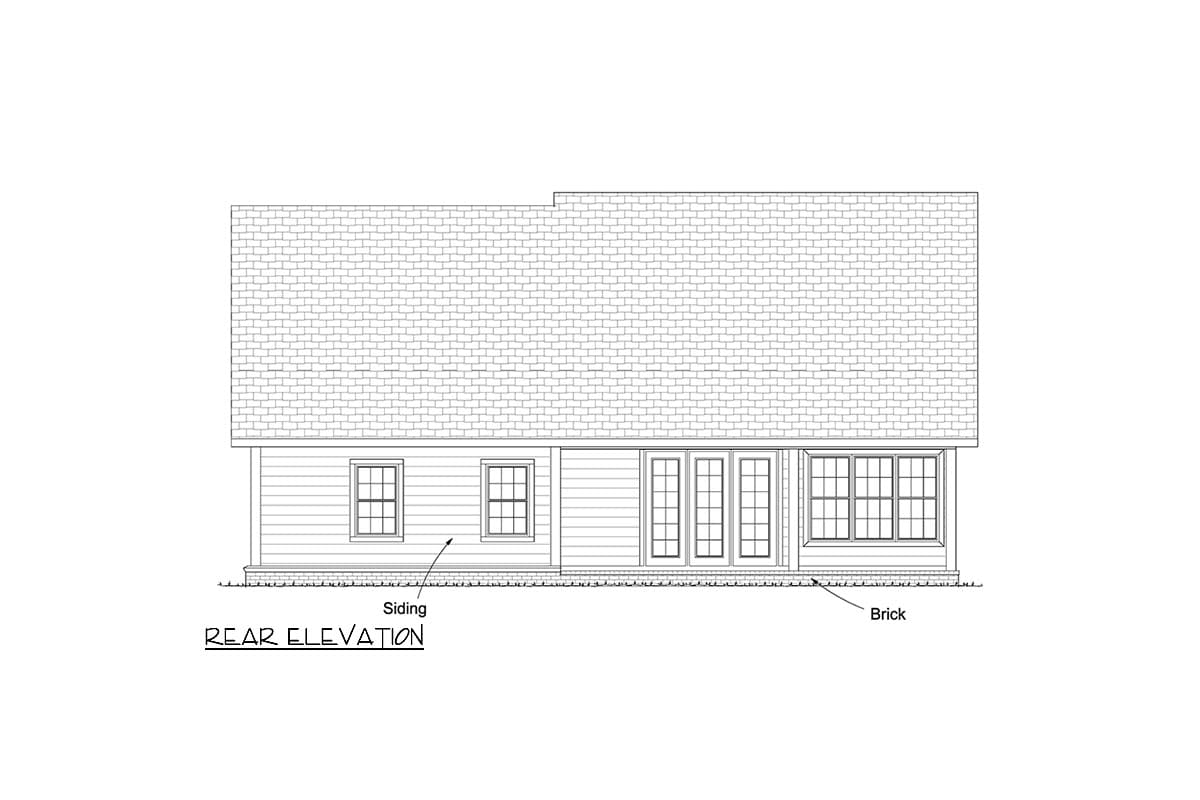

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundation: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
  • Interior Elevations
  • Kitchen cabinet elevations


Floor Plan

Plan details



Traditional Home Plan with Flex Room

  • 1,958

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - multi-use $905
  • CAD - multi-use $1,155
  • View all purchase option online

About This Plan

  • Clean, simple lines and a covered front entry give this Traditional home plan its curb appeal.
  • A flex room off the foyer can be used as a den, study or formal dining room.
  • The open floor plan in the main living area allows wonderful views from room to room.
  • No stairs to climb, for the master suite is located on the first floor.
  • Two bedrooms and a game room occupy the second floor.

Floor Plans

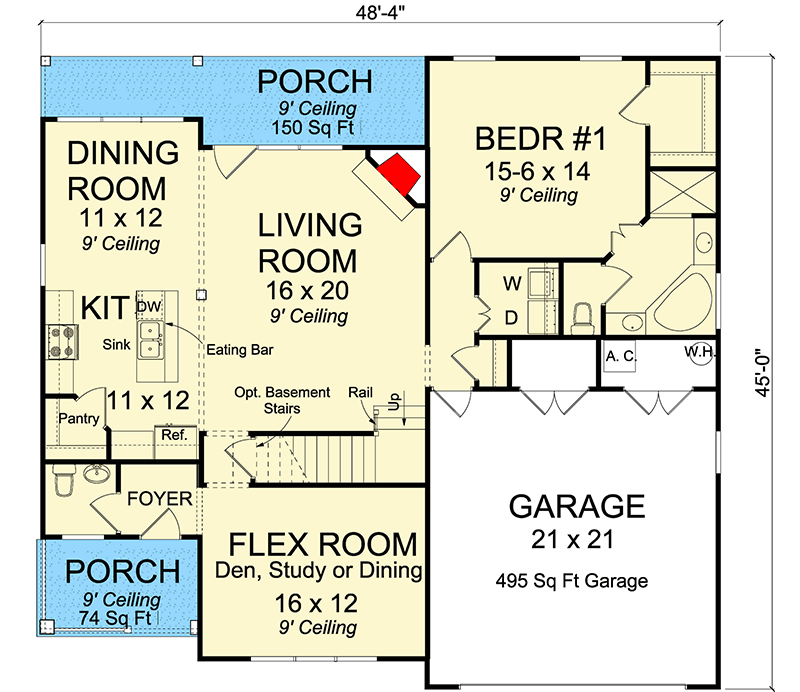

  • Main Level

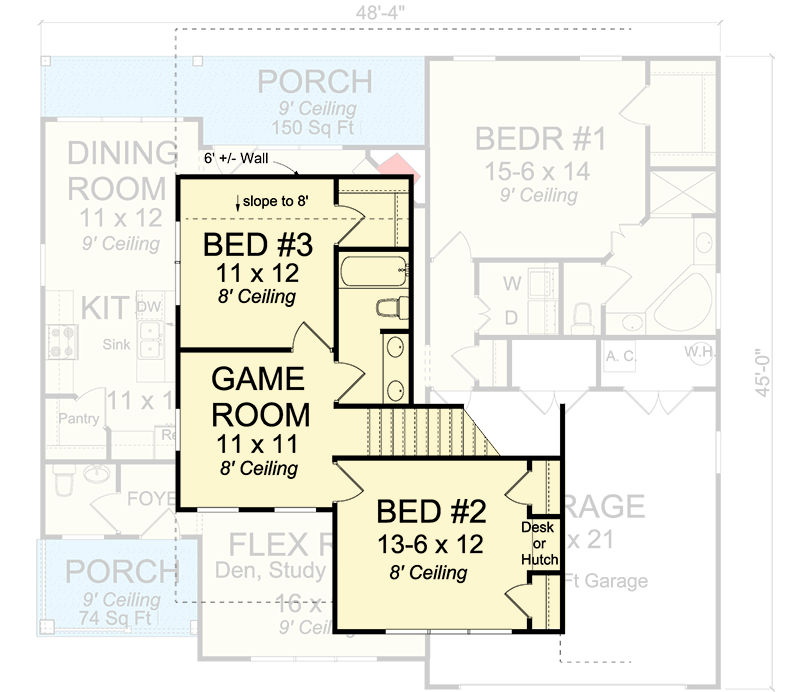

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,958 sq. ft.
  • 1st Floor: 1,357 sq. ft.
  • 2nd Floor: 581 sq. ft.
  • Porch, Front: 74 sq. ft.
  • Porch, Rear: 150 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 48' 4"
  • Depth: 45' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 495 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
