Plan 710168BTZ
Traditional House Plan Designed for the Sloping Lot
Heated S.F.
2,934
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 710168BTZ

Main Level
slide image 0
Lower Level
slide image 1

Plan 710168BTZ

1-800-854-7852

1-262-521-4596

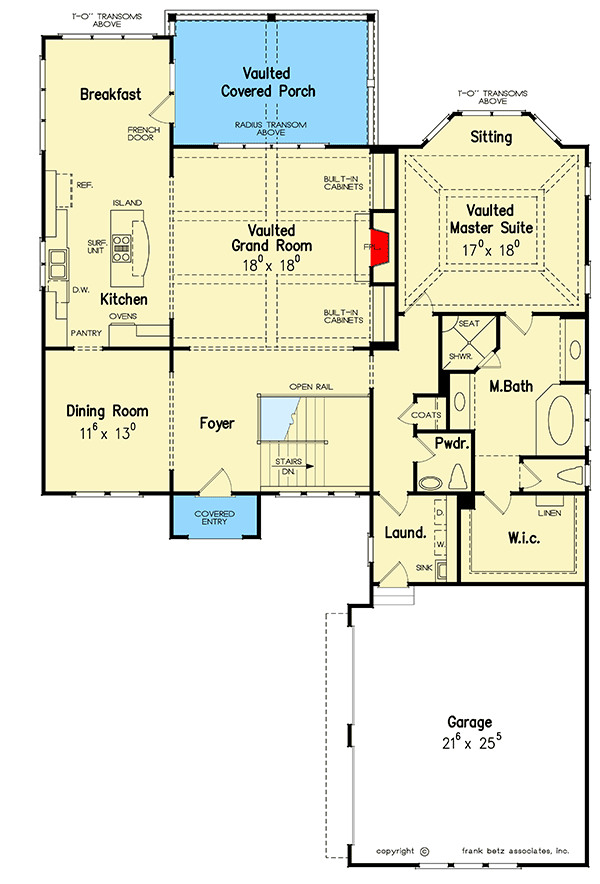

Main Level
floor plan image Main Level

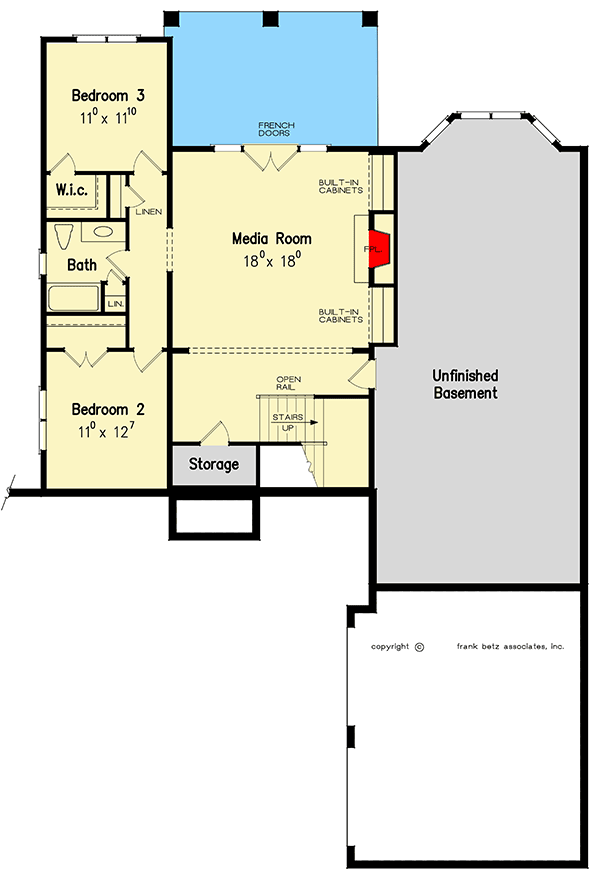

Lower Level
floor plan image Lower Level
Plan Details
  • This 3-bed house plan was designed with two specific targets in mind – Empty Nesters and Sloping Sites. The façade will be at home in any location. Multiple window massing and mixed sidings blend perfectly. The fieldstone arched entry becomes the focal point and leads all visitors to the front door. A courtyard entry garage also facilitates many diverse site conditions.
  • The main level gives you everything you need to deal with your daily living requirements on one convenient level. The open kitchen, breakfast and grand room provide the needed space to live, entertain family and friends and are fully appointed with ceiling treatments, a warming fireplace and built-ins.
  • The master suite is luxurious with a vaulted, beamed ceiling and large bay window to provide vast views of the lake, golf course or mountains. The spa-like bath is the perfect place to recharge your tired batteries.
  • The lower level provides the necessary space for guests and grandkids when they visit. The media room is additional living space for watching movies or your favorite teams play. Two additional bedrooms and a shared bathroom complete the terrace level. There is also unfinished space that is perfect for a workshop or much needed storage.
What's Included

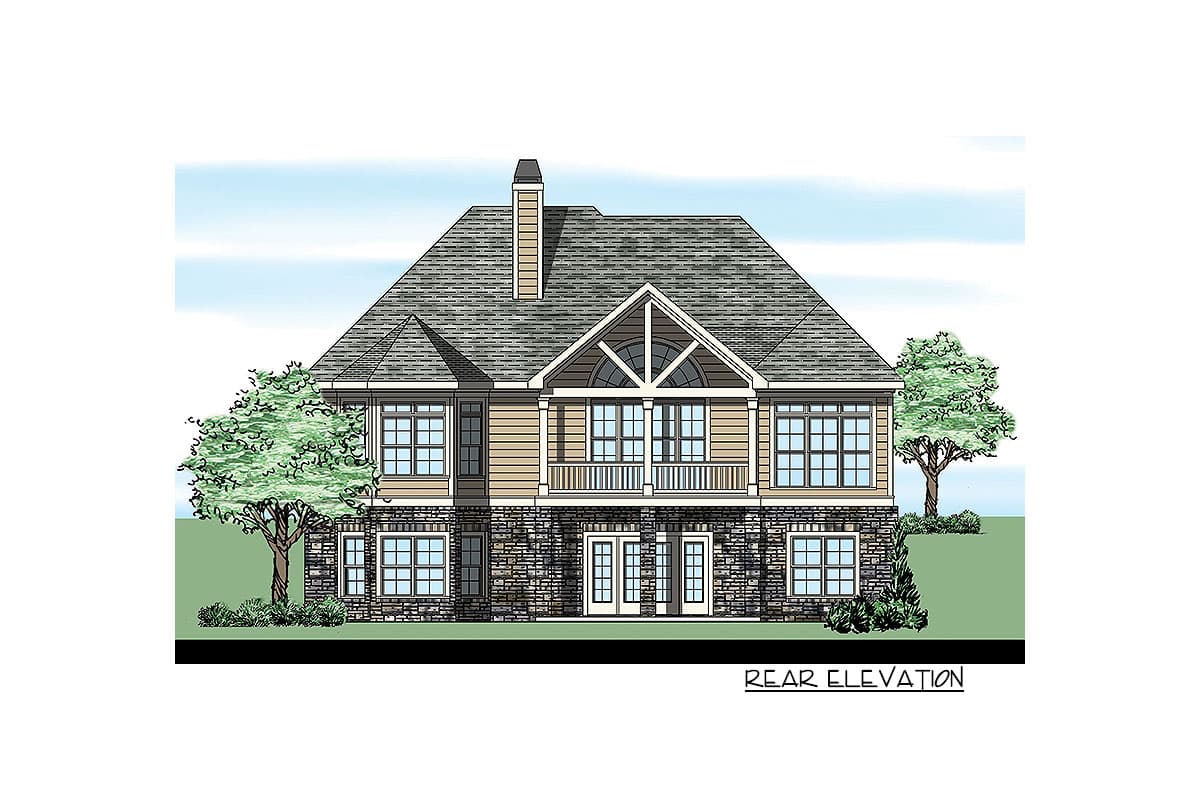

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,934 sq. ft.

Lower Level

1,018 sq. ft.

1st Floor

1,916 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

78' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

582 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Lake House

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Workshop

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

2,934 sq. ft.

Lower Level

1,018 sq. ft.

1st Floor

1,916 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

78' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

582 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Lake House

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Workshop

Plan Collections

Lake House Plans
