Traditional House Plan Under 2000 Square Feet with 2-Car Courtyard Garage and Flex Room

Plan 86383HH

  • 1,957

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This traditional house plan has a 2-car courtyard-entry garage and gives you 1,957 square feet of heated living space.
  • The master suite is on the main floor and two guest beds share a bath with two vanities on the second floor.
  • Three windows line the back of the family room - which is open to the kitchen - and a door gets you to the back yard.
  • A flex room can serve as either a home office or a dining room.

Cover Sheet

Foundation plans
Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

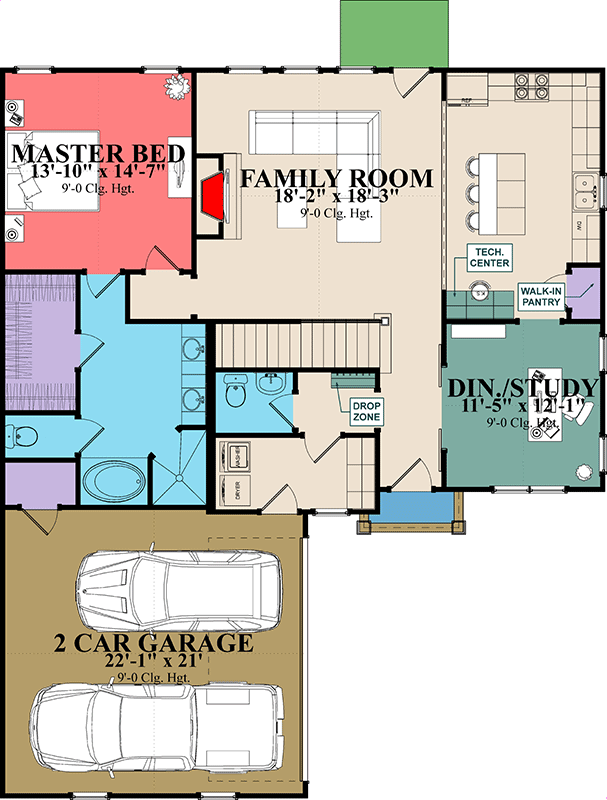

Traditional House Plan Under 2000 Square Feet with 2-Car Courtyard Garage and Flex Room - 86383HH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

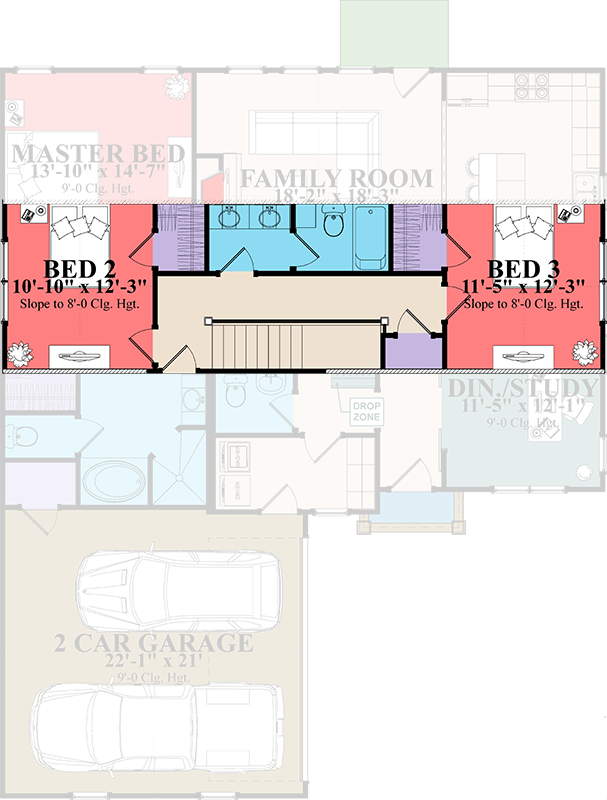

Traditional House Plan Under 2000 Square Feet with 2-Car Courtyard Garage and Flex Room - 86383HH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,957 sq. ft.
  • 1st Floor: 1,424 sq. ft.
  • 2nd Floor: 533 sq. ft.
  • Porch, Front: 21 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 44' 9"
  • Depth: 54' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 502 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12

Architectural Style

Special features

Traditional House Plan Under 2000 Square Feet with 2-Car Courtyard Garage and Flex Room

  • 1,957

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,474
  • Study Set - Digital $1,518
  • 8 Sets $1,562
  • PDF - Single-Build $1,694
  • CAD - Single-Build $2,002
  • PDF - Unlimited Build $2,494
  • CAD - Unlimited Build $2,802
  • View all purchase option online

About This Plan

  • This traditional house plan has a 2-car courtyard-entry garage and gives you 1,957 square feet of heated living space.
  • The master suite is on the main floor and two guest beds share a bath with two vanities on the second floor.
  • Three windows line the back of the family room - which is open to the kitchen - and a door gets you to the back yard.
  • A flex room can serve as either a home office or a dining room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,957 sq. ft.
  • 1st Floor: 1,424 sq. ft.
  • 2nd Floor: 533 sq. ft.
  • Porch, Front: 21 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 44' 9"
  • Depth: 54' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 502 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
