Plan 52469WM

Traditional House Plan with 4 Beds 3 Baths and First-Floor Master

Heated S.F.
1,624
Beds
4
Baths
3
Stories
2

Floor Plan

Plan 52469WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52469WM

M-F 9am-5pm EST |

1-203-761-8500

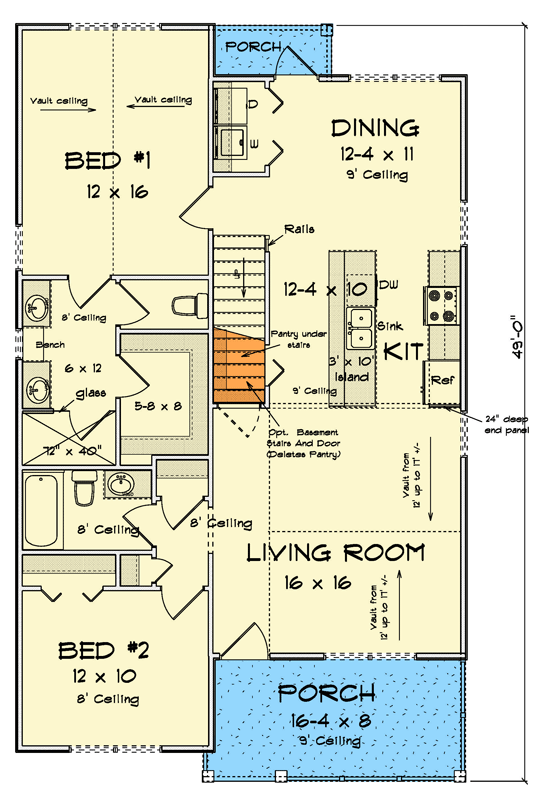

Main Level

Plan 52469WM: Traditional House Plan with 4 Beds 3 Baths and First-Floor Master - Floor Plan - Main Level - Country, Traditional

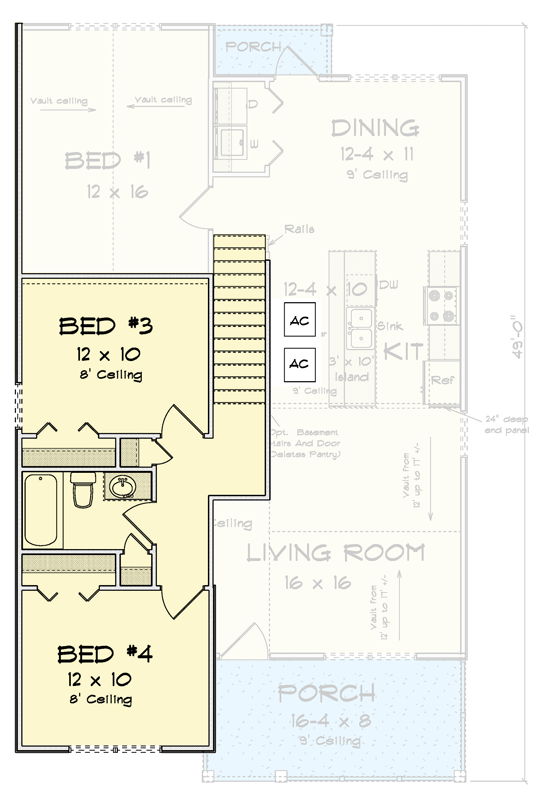

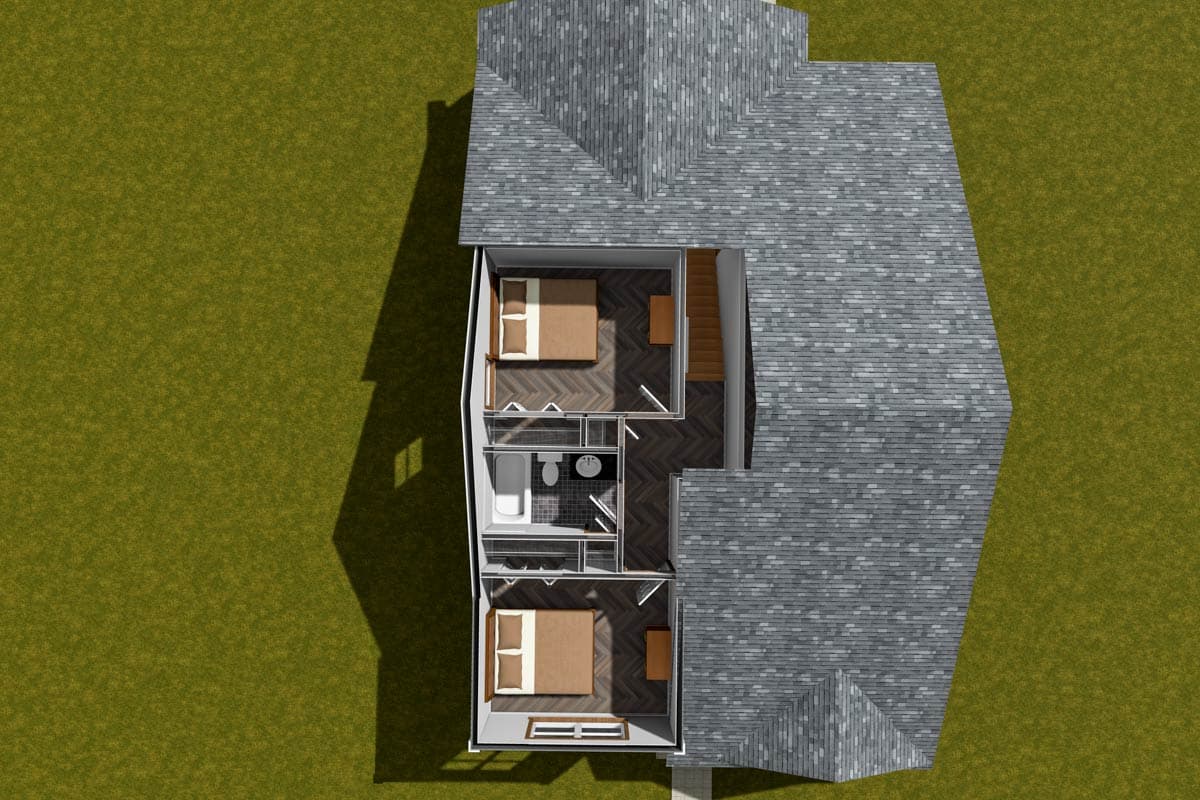

2nd Floor

Plan 52469WM: Traditional House Plan with 4 Beds 3 Baths and First-Floor Master - Floor Plan - 2nd Floor - Country, Traditional

Plan Details

  • This inviting 1,624 sq. ft. Traditional House Plan offers 4 bedrooms, 3 full bathrooms, and a charming exterior, perfect for a growing family or those seeking flexible living.
  • Step inside from the welcoming front porch into a spacious living room, featuring a soaring vaulted ceiling that creates an immediate sense of grandeur and openness.
  • The open-concept design seamlessly connects the living room to the chef-inspired kitchen, complete with a generous island and a convenient butler's walk-in pantry, flowing into an elegant dining area, ideal for everyday meals or intimate gatherings.
  • The main level features a private master suite, boasting a vaulted ceiling and an en-suite bathroom, offering a serene escape, while a secondary bedroom on this floor provides flexible space, accompanied by a full hall bath. Upstairs, two additional bedrooms share a well-appointed full bathroom, creating comfortable private quarters.
  • Enjoy morning coffee on the generous front porch, or step out to the rear porch for a quiet moment outdoors, extending your living space to embrace the fresh air.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,624 sq. ft.

1st Floor

1,211 sq. ft.

2nd Floor

413 sq. ft.

Porch, Front

132 sq. ft.

Porch, Rear

26 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

29' 0"

Depth

49' 0"

Max Ridge Height

24' 9"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick Or Truss

Architectural Style

Country

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,624 sq. ft.

1st Floor

1,211 sq. ft.

2nd Floor

413 sq. ft.

Porch, Front

132 sq. ft.

Porch, Rear

26 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

29' 0"

Depth

49' 0"

Max Ridge Height

24' 9"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick Or Truss

Architectural Style

Country

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
