Traditional House Plan with Beautiful Ceilings

Plan 72893DA

  • 3,439

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • While the standard ceiling height for this Traditional home is 9', there is a 12' ceiling in the den, a gorgeous tray ceiling in the large dining room and a vaulted ceiling in the owners' suite.
  • The great room runs front to back with double doors to take you out to the expansive covered patio in back.
  • You'll have lots of counter space in the large kitchen that offers two peninsula eating bars plus an island and a walk-in pantry.
  • Walk through the large den to reach the huge master bedroom on the left side of the home.
  • There's a guest bedroom on the opposite side of the home and two more bedrooms upstairs.
  • Storage space lies over the three car garage.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

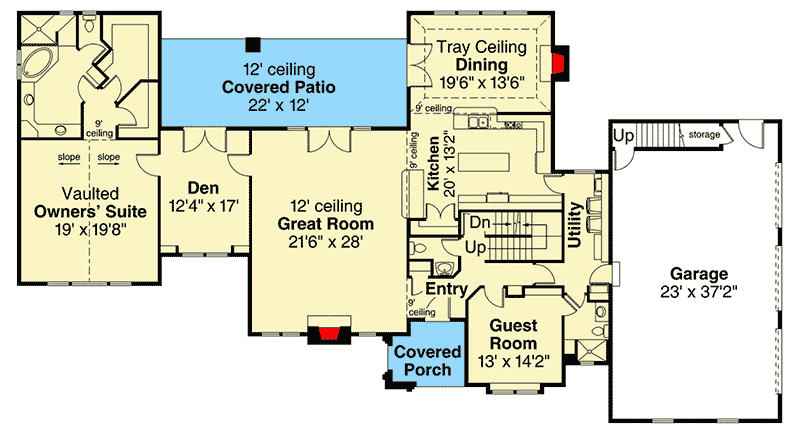

Traditional House Plan with Beautiful Ceilings - 72893DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

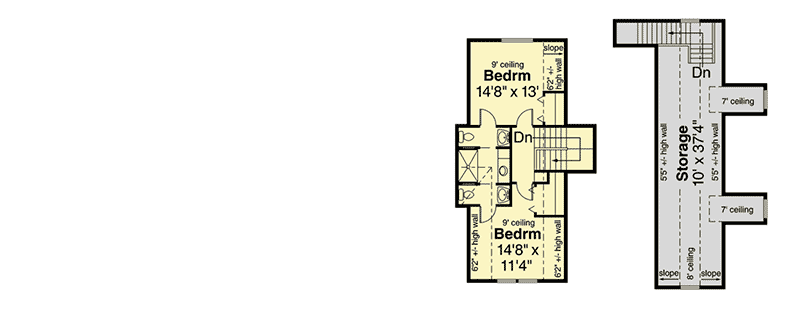

Traditional House Plan with Beautiful Ceilings - 72893DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,439 sq. ft.
  • 1st Floor: 2,854 sq. ft.
  • 2nd Floor: 585 sq. ft.
  • Covered Patio: 264 sq. ft.
  • Storage: 482 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 106' 0"
  • Depth: 57' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 995 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Traditional House Plan with Beautiful Ceilings

  • 3,439

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $1,095
  • PDF Light $1,370
  • 5 Sets + PDF Light $1,665
  • PDF - Single-Build $2,615
  • CAD - Single-Build $2,855
  • CAD - Unlimited Build $3,140
  • View all purchase option online

About This Plan

  • While the standard ceiling height for this Traditional home is 9', there is a 12' ceiling in the den, a gorgeous tray ceiling in the large dining room and a vaulted ceiling in the owners' suite.
  • The great room runs front to back with double doors to take you out to the expansive covered patio in back.
  • You'll have lots of counter space in the large kitchen that offers two peninsula eating bars plus an island and a walk-in pantry.
  • Walk through the large den to reach the huge master bedroom on the left side of the home.
  • There's a guest bedroom on the opposite side of the home and two more bedrooms upstairs.
  • Storage space lies over the three car garage.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,439 sq. ft.
  • 1st Floor: 2,854 sq. ft.
  • 2nd Floor: 585 sq. ft.
  • Covered Patio: 264 sq. ft.
  • Storage: 482 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 106' 0"
  • Depth: 57' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 995 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick And Truss
