Traditional House Plan with Bonus Space

Plan 42401DB

  • 2,196

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Get a first floor master suite, a bonus room and vaulted ceilings with this lovely Traditional house plan.
  • The two-story foyer leads past bedroom 2 on its way back to the big family center at the back of the house.
  • Here, the open layout gives you marvelous sight lines.
  • You can grill out on the covered veranda away from the rain or hot sun.
  • There's room for four stools at the big kitchen island and the walk-through pantry leads into the mud room.
  • A big bay window extends the dining room, making it feel larger.
  • Bedroom 3 is off by itself on the second floor near the large bonus room.
  • Related Plan: Get a 3-car version with house plan 42403DB.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:

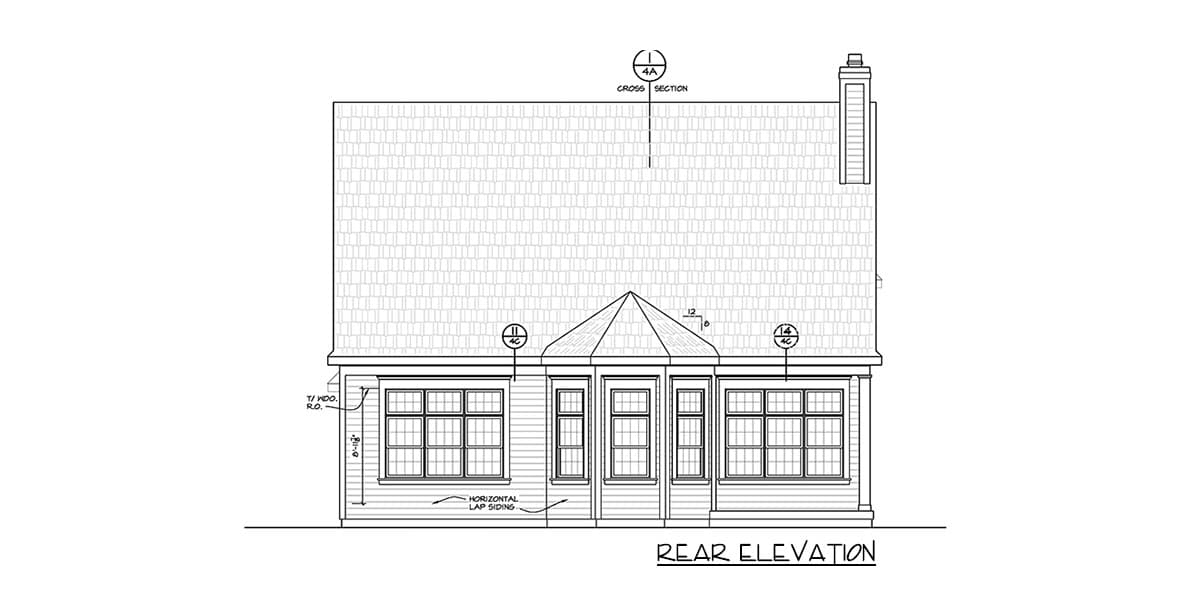

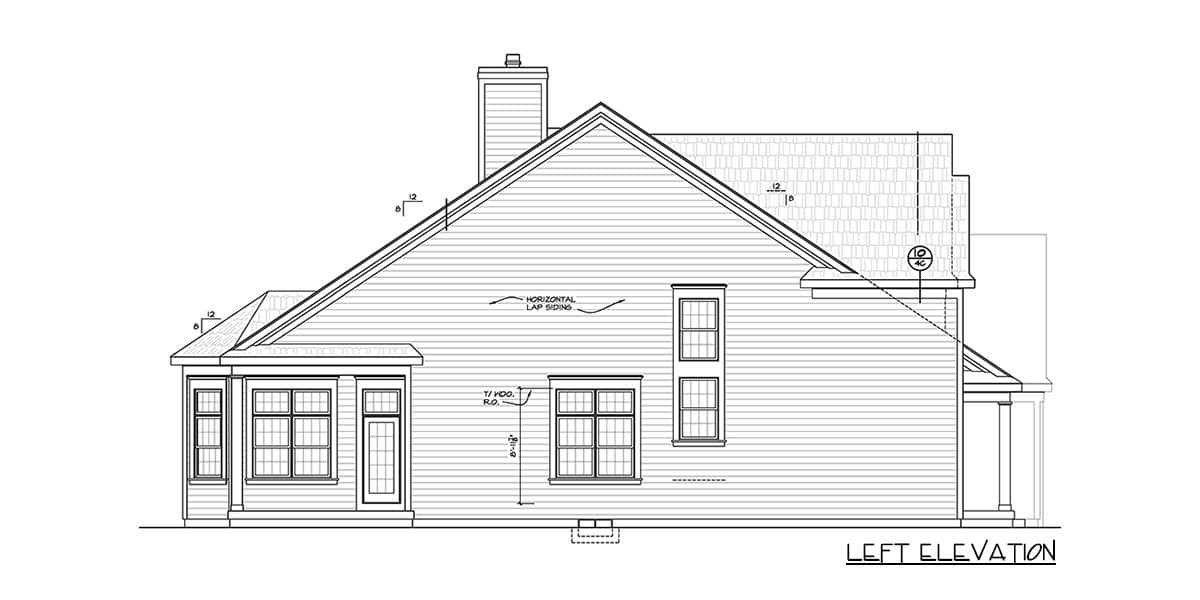

Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

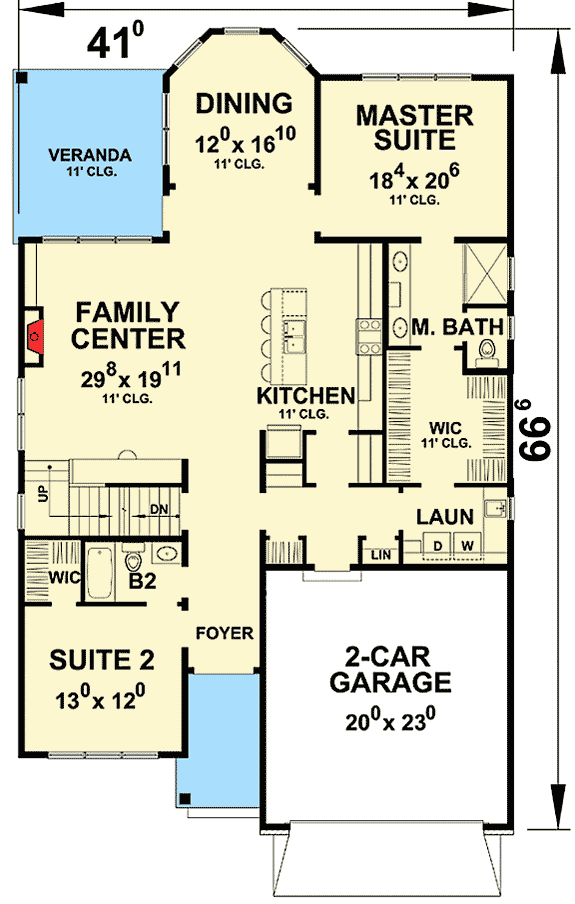

Traditional House Plan with Bonus Space - 42401DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

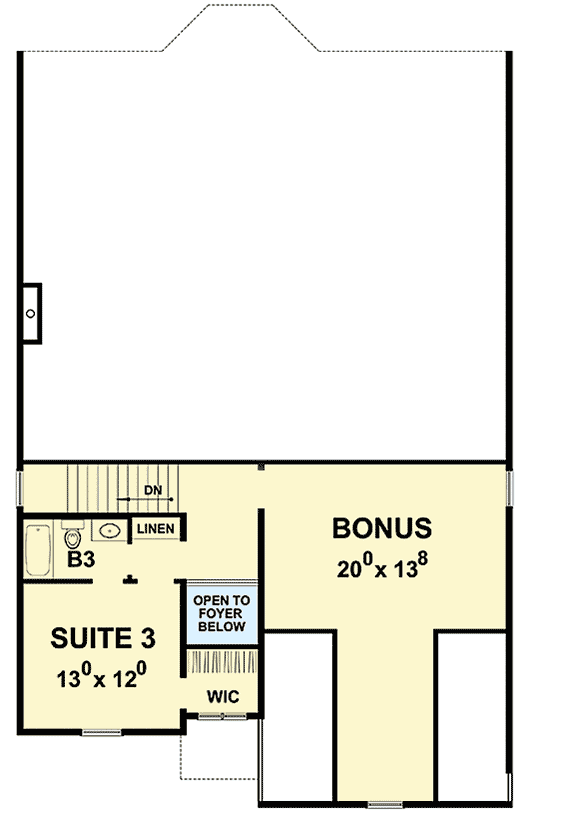

Traditional House Plan with Bonus Space - 42401DB floor plan - 2nd Floor

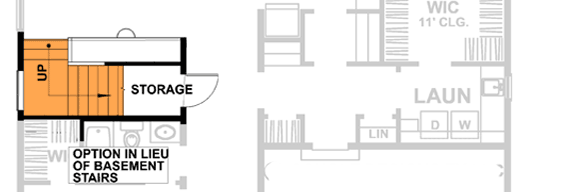

Optional Stairs

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional House Plan with Bonus Space - 42401DB floor plan - Optional Stairs

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,196 sq. ft.
  • 1st Floor: 1,832 sq. ft.
  • 2nd Floor: 364 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 0"
  • Depth: 66' 6"
  • Max ridge height: 31' 8"

Garage

  • Type: Attached
  • Area: 448 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
Room Type Height
Family Room Flat 11' 0"
Dining Room Flat 11' 0"
Kitchen Flat 11' 0"
Master Bedroom Flat 11' 0"

Architectural Style

Special features

Traditional House Plan with Bonus Space

  • 2,196

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $685
  • PDF - Single-Build $1,055
  • PDF - Unlimited Build $1,555
  • CAD - Single-Build $1,830
  • CAD - Unlimited Build $2,330
  • View all purchase option online

About This Plan

  • Get a first floor master suite, a bonus room and vaulted ceilings with this lovely Traditional house plan.
  • The two-story foyer leads past bedroom 2 on its way back to the big family center at the back of the house.
  • Here, the open layout gives you marvelous sight lines.
  • You can grill out on the covered veranda away from the rain or hot sun.
  • There's room for four stools at the big kitchen island and the walk-through pantry leads into the mud room.
  • A big bay window extends the dining room, making it feel larger.
  • Bedroom 3 is off by itself on the second floor near the large bonus room.
  • Related Plan: Get a 3-car version with house plan 42403DB.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Stairs

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,196 sq. ft.
  • 1st Floor: 1,832 sq. ft.
  • 2nd Floor: 364 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 0"
  • Depth: 66' 6"
  • Max ridge height: 31' 8"

Garage

  • Type: Attached
  • Area: 448 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
