Plan 710097BTZ Traditional House Plan with Brick and Shake-Shingle Exterior

Traditional House Plan with Brick and Shake-Shingle Exterior

Plan 710097BTZ

  • 2,056

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This gorgeous brick and shake-shingle home takes the best of French detailing and blends with country cottage sensibilities to create a wonderful family plan. A charming covered entry leads to the two-story foyer.
  • The formal dining room resides to the left, defined by columns. An angled kitchen with a convenient serving bar serves the breakfast nook with ease.
  • In the vaulted great room, a cozy fireplace warms and relaxes. The first-floor master suite is a study in luxury, with a tray ceiling, vaulted bath and the option to expand into the adjacent bedroom to create a private sitting room.
  • Two upper-level bedrooms share a full bath and access to the bonus room, great for home office space or an artist's studio.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Plan details



Traditional House Plan with Brick and Shake-Shingle Exterior

  • 2,056

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Unlimited Build $1,380
  • CAD - Unlimited Build $2,630
  • View all purchase option online

About This Plan

  • This gorgeous brick and shake-shingle home takes the best of French detailing and blends with country cottage sensibilities to create a wonderful family plan. A charming covered entry leads to the two-story foyer.
  • The formal dining room resides to the left, defined by columns. An angled kitchen with a convenient serving bar serves the breakfast nook with ease.
  • In the vaulted great room, a cozy fireplace warms and relaxes. The first-floor master suite is a study in luxury, with a tray ceiling, vaulted bath and the option to expand into the adjacent bedroom to create a private sitting room.
  • Two upper-level bedrooms share a full bath and access to the bonus room, great for home office space or an artist's studio.

Floor Plans

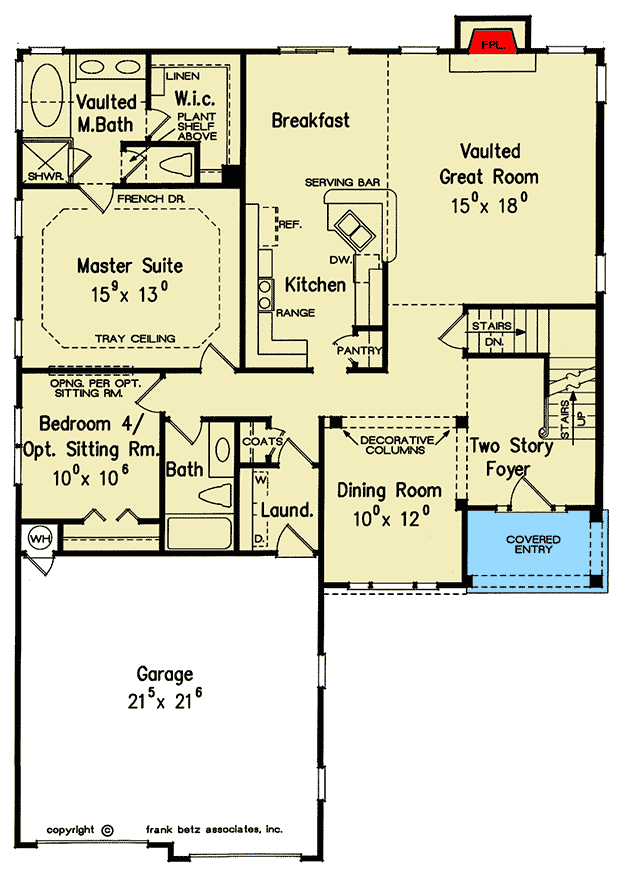

  • Main Level

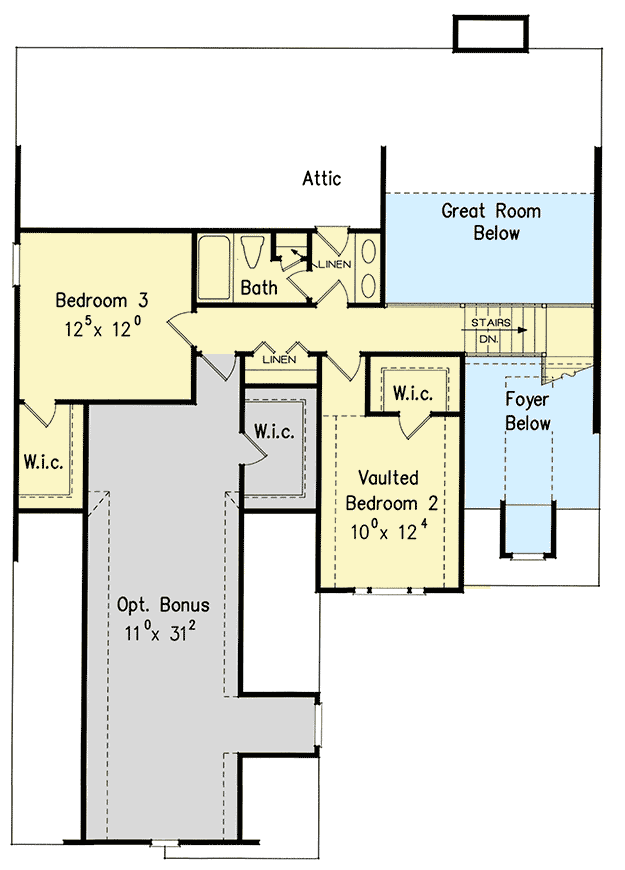

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,056 sq. ft.
  • 1st Floor: 1,514 sq. ft.
  • 2nd Floor: 542 sq. ft.
  • Bonus: 443 sq. ft.
  • Basement Unfinished: 1,514 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 42' 0"
  • Depth: 60' 4"
  • Max ridge height: 27' 8"

Garage

  • Type: Attached
  • Area: 468 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
