Traditional House Plan with Brick Exterior and Upstairs Bonus Room

Plan 710107BTZ

  • 3,004

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Stately brick and clapboard siding combine to create a clean traditional design. The steep pitched gables and various window styles add interest. The covered entry provides shelter from the elements and invites all to come inside.
  • The main level is open and airy with lots of sunshine and unobstructed views. The vaulted family room has built-in millwork and a warming fireplace. The kitchen is well equipped to handle all cooking chores and is the gathering point for family time or parties. The vaulted keeping room is the perfect space for a good book or simply gazing onto the rear lawn.
  • The side entrance and mudroom is convenient and provides organization for shoes, coats and book bags.
  • The master suite also is oriented rearward for privacy yet is light filled. The master bath is complete with a free standing tub and a large shower.
  • The upper level has two additional bedrooms with walk-in closets and private bathrooms. The multi-purpose bonus room can be a recreation space, exercise gym or media center.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

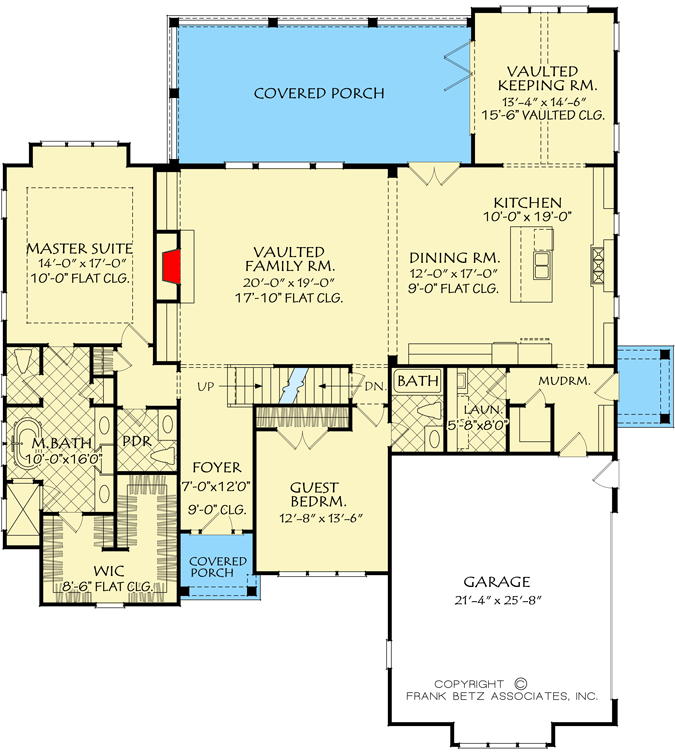

Traditional House Plan with Brick Exterior and Upstairs Bonus Room - 710107BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

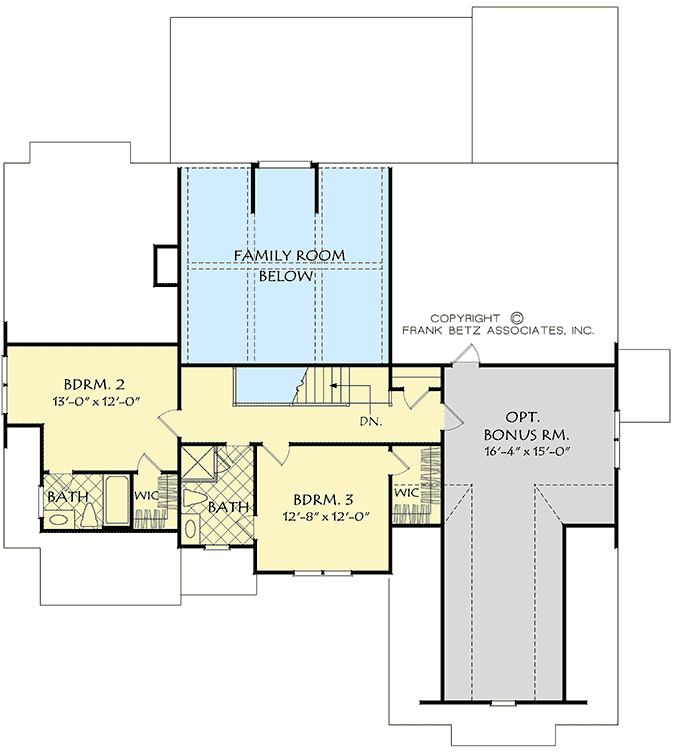

Traditional House Plan with Brick Exterior and Upstairs Bonus Room - 710107BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,004 sq. ft.
  • 1st Floor: 2,314 sq. ft.
  • 2nd Floor: 690 sq. ft.
  • Bonus: 467 sq. ft.
  • Basement Unfinished: 2,314 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 0"
  • Depth: 71' 0"
  • Max ridge height: 30' 4"

Garage

  • Type: Attached
  • Area: 592 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Traditional House Plan with Brick Exterior and Upstairs Bonus Room

  • 3,004

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • Stately brick and clapboard siding combine to create a clean traditional design. The steep pitched gables and various window styles add interest. The covered entry provides shelter from the elements and invites all to come inside.
  • The main level is open and airy with lots of sunshine and unobstructed views. The vaulted family room has built-in millwork and a warming fireplace. The kitchen is well equipped to handle all cooking chores and is the gathering point for family time or parties. The vaulted keeping room is the perfect space for a good book or simply gazing onto the rear lawn.
  • The side entrance and mudroom is convenient and provides organization for shoes, coats and book bags.
  • The master suite also is oriented rearward for privacy yet is light filled. The master bath is complete with a free standing tub and a large shower.
  • The upper level has two additional bedrooms with walk-in closets and private bathrooms. The multi-purpose bonus room can be a recreation space, exercise gym or media center.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,004 sq. ft.
  • 1st Floor: 2,314 sq. ft.
  • 2nd Floor: 690 sq. ft.
  • Bonus: 467 sq. ft.
  • Basement Unfinished: 2,314 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 59' 0"
  • Depth: 71' 0"
  • Max ridge height: 30' 4"

Garage

  • Type: Attached
  • Area: 592 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 710107BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710107BTZ
|
