Traditional House Plan with Clerestory Dormer in Foyer - 1386 Sq Ft
Heated S.F.
1,386
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • This one story house plan gives you 3 beds, 2.5 baths and 1,386 square feet of heated living with a 2-car (517 square foot garage)
  • A sunny, clerestory dormer in the foyer adds light to the space and creates a warm welcome to the home.
  • The open great room, dining, and kitchen are unified under a shared 17' cathedral ceiling. The adjoining deck provides extra living or entertaining space, while the front bedroom is expanded by a 13'8" cathedral ceiling that shows off a double window with circletop.
  • The master suite is highlighted by a 15'2" cathedral ceiling and includes a private bath with garden tub, double bowl vanity, and walk-in closet.

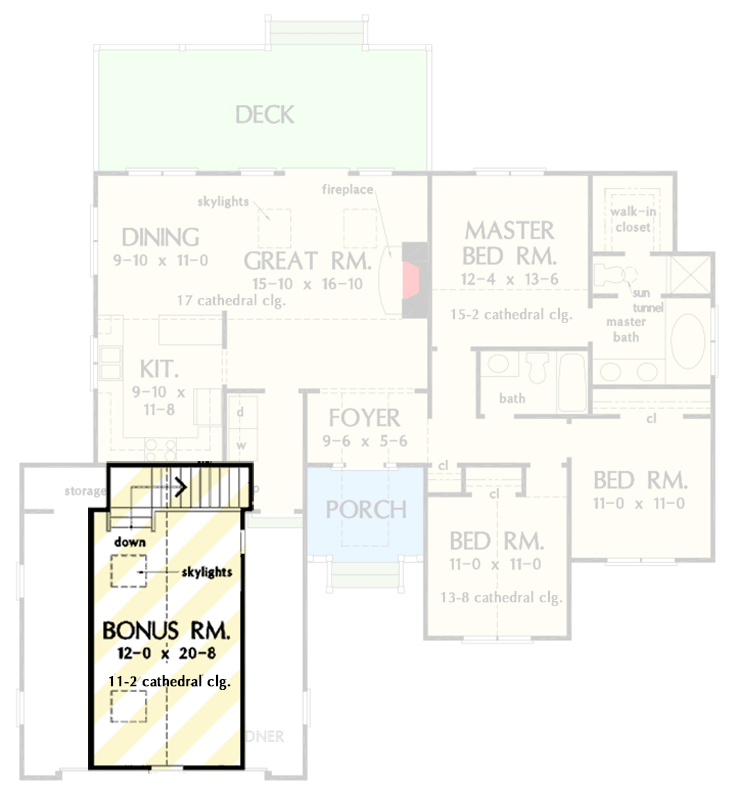

  • A skylit bonus room above the garage offers flexibility and 314 square feet of expansion.
  • Delivery Delate Notes:
    • Please allow 15 to 25 business days for delivery if it includes the basement OR a slab foundation option.
    • Please allow 15 to 25 business days for delivery if it includes the 2x6 exterior wall conversion option
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

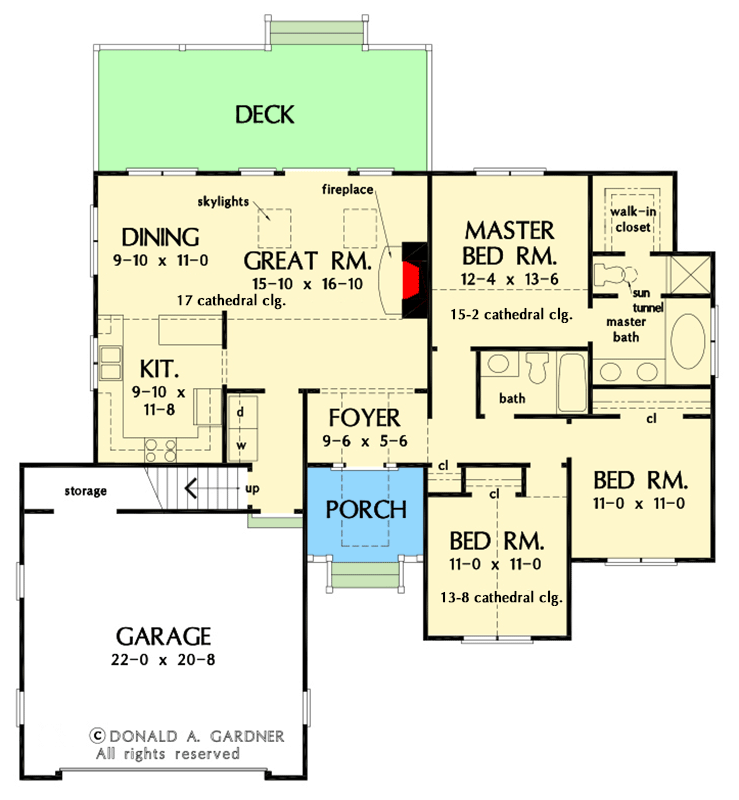

  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional House Plan with Clerestory Dormer in Foyer - 1386 Sq Ft

  • 1,386

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,386 sq. ft.
  • 1st Floor: 1,386 sq. ft.

Dimensions

  • Width: 54' 10"
  • Depth: 48' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 517 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
