Plan 280006JWD

Traditional House Plan with First Floor Master

Heated S.F.
2,671
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 280006JWD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 280006JWD

M-F 9am-5pm EST |

1-203-761-8500

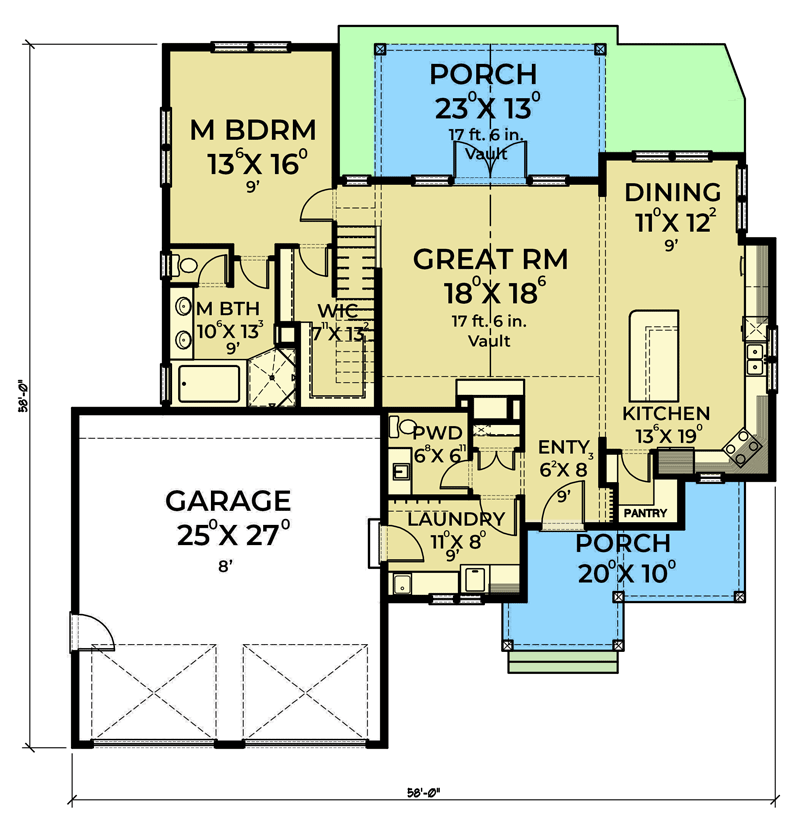

Main Level

Plan 280006JWD: Traditional House Plan with First Floor Master - Floor Plan - Main Level - Craftsman, New American, Northwest, Traditional

2nd Floor

Plan 280006JWD: Traditional House Plan with First Floor Master - Floor Plan - 2nd Floor - Craftsman, New American, Northwest, Traditional

Plan Details

  • Casual, open living is emphasized in this handsome Traditional house plan.

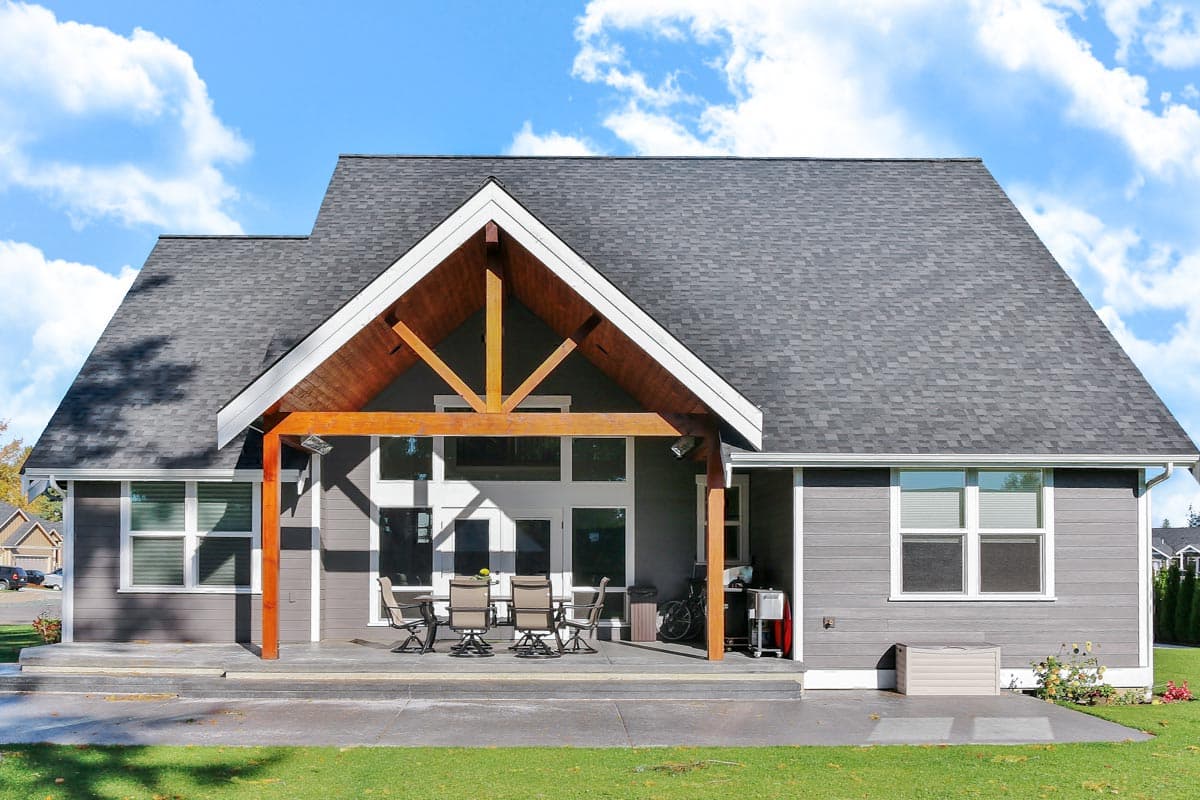

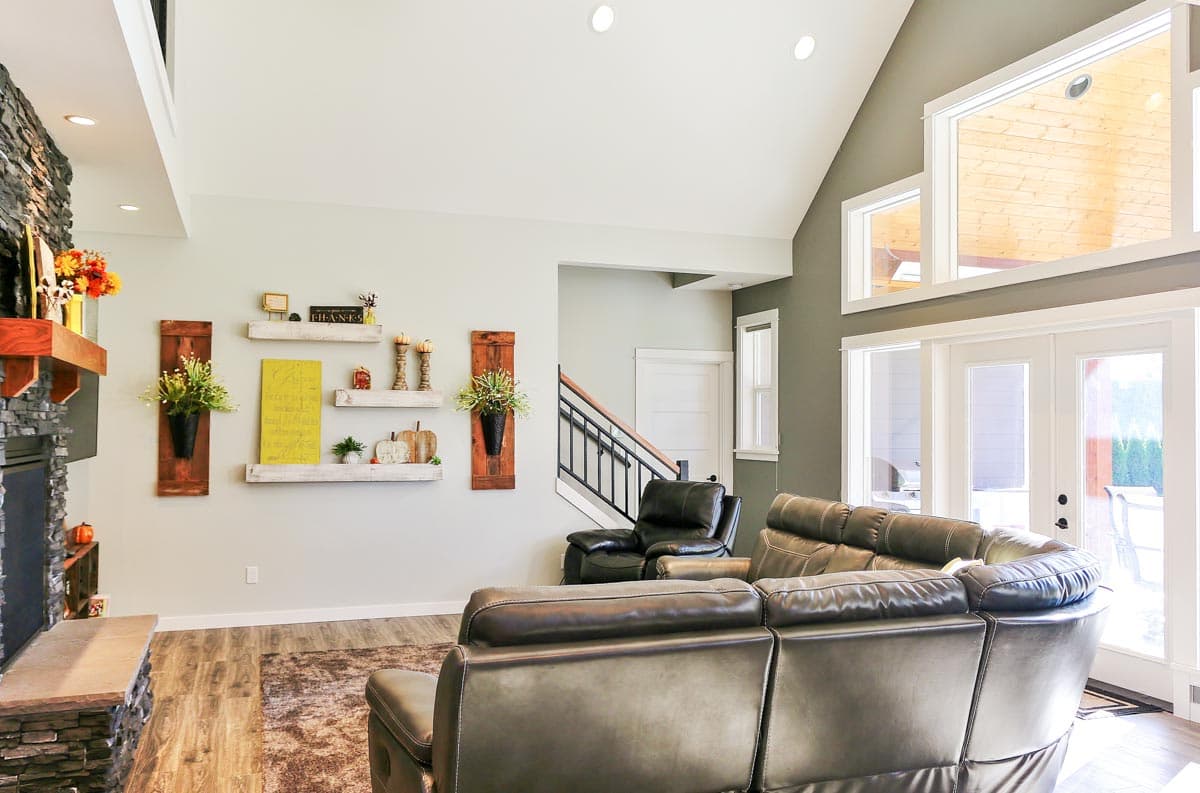

  • Double doors at the end of the vaulted great room open to a covered rear porch.

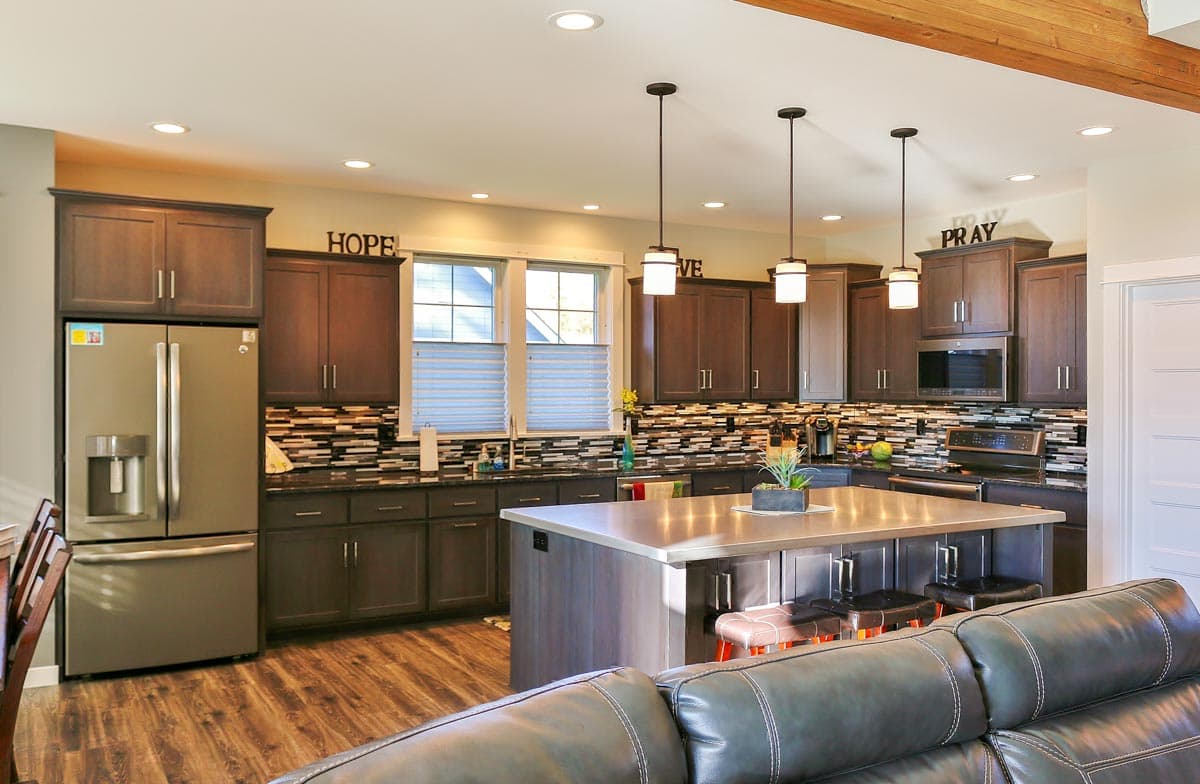

  • Storage is excellent with a big kitchen island and a walk-in pantry.
  • On the second floor three family bedrooms lie close to the large bonus room that comes with a wet bar.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,671 sq. ft.

1st Floor

1,507 sq. ft.

2nd Floor

794 sq. ft.

Bonus

370 sq. ft.

Porch, Combined

377 sq. ft.

Covered Patio

300 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

58' 0"

Max Ridge Height

30' 4"

Garage

Type

Attached

Area

711 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Northwest

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Walk-in Pantry

Wet Bar
