Traditional House Plan with Formal and Informal Dining - 1789 Sq Ft
Heated S.F.
1,789
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • This traditional house plan gives you 3 beds, 2.5 baths and 1,789 square feet of heated living space with bedrooms lining the left side of the home and the right side for gathering with friends.
  • The great room has a 15'4" vaulted ceiling and has rear porch (14' by 7'4") access. The breakfast room is open to the kitchen and ha screen porch (9'4" by 14'8") access.
  • The master bedroom has a 12'7" vaulted ceiling, two walk-in closets and a 5-fixture bath.

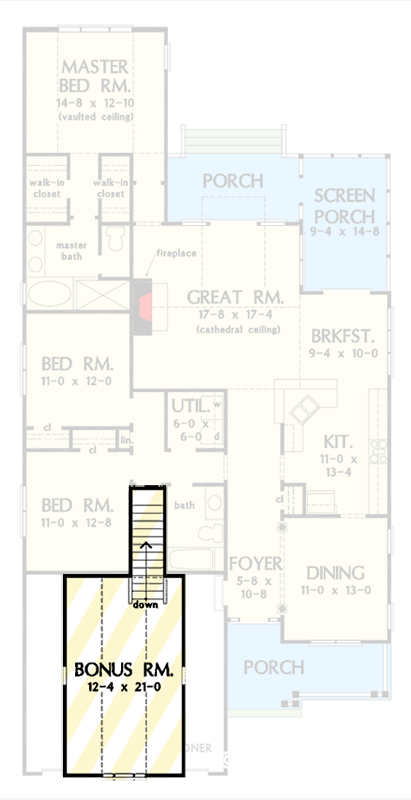

  • A bonus room above the garage gives you 312 square feet of expansion space.
  • Delivery Delate Notes:
    • Please allow 15 to 25 business days for delivery if it includes the basement OR a slab foundation option.
    • Please allow 15 to 25 business days for delivery if it includes the 2x6 exterior wall conversion option
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

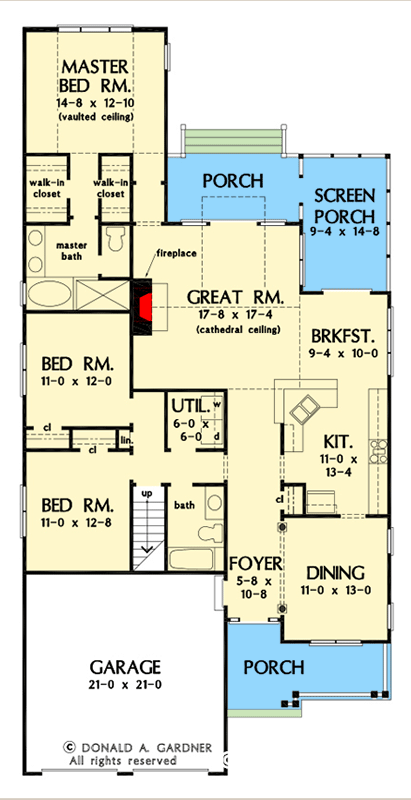

  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
