Plan 83807JW

Traditional House Plan with Game Room

Pageloader

Traditional House Plan with Game Room

Plan 83807JW

  • 3,311

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This sprawling one level Traditional house plan boasts a big game room in the back of the house where kids of all ages can have fun.
  • Retreat to the quiet study or hang out in the giant living room that has views of the rear covered porch.
  • There's even a keeping room with corner fireplace off the informal eating area, giving you one more space to relax in comfort.
  • Secluded away on the right side of the home, the master bedroom enjoys a walk-in closet that is divided into his and her sections.
  • Two family bedrooms on the opposite side of the home share a jack and jill bathroom.
  • An added plus is a mud room bathroom in the 3 car garage.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

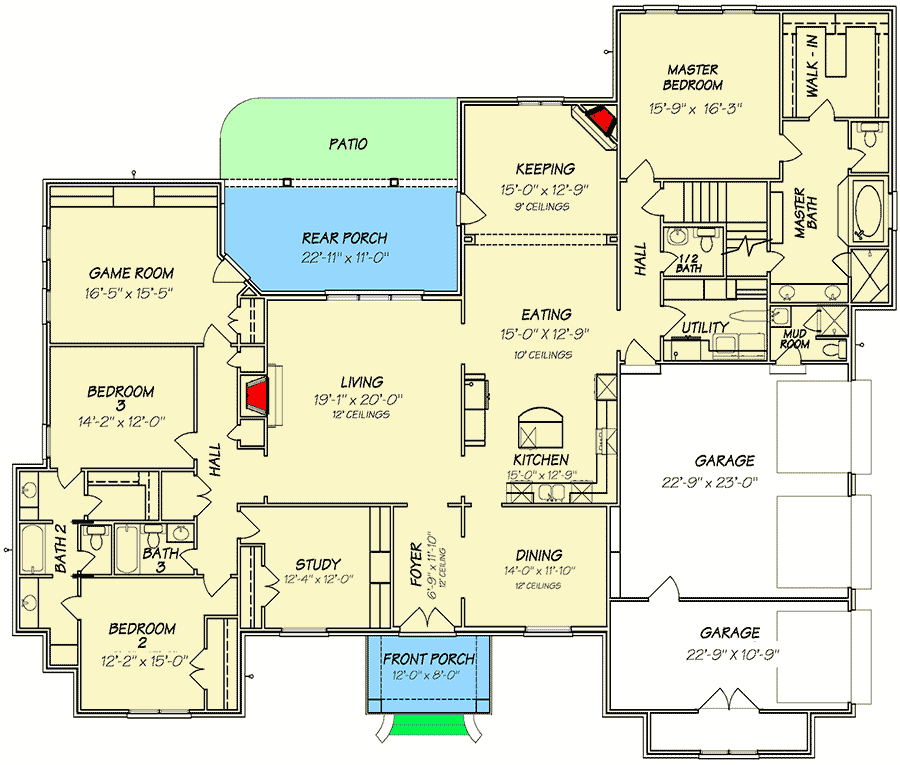

Floor Plan

Plan details



Traditional House Plan with Game Room

  • 3,311

    Heated s.f.

  • 3

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $1,045
  • PDF - single-use $1,045
  • 5 Sets $1,095
  • 8 Sets $1,195
  • PDF - multi-use $1,695
  • CAD $1,895
  • CAD - multi-use $2,395
  • View all purchase option online

About This Plan

  • This sprawling one level Traditional house plan boasts a big game room in the back of the house where kids of all ages can have fun.
  • Retreat to the quiet study or hang out in the giant living room that has views of the rear covered porch.
  • There's even a keeping room with corner fireplace off the informal eating area, giving you one more space to relax in comfort.
  • Secluded away on the right side of the home, the master bedroom enjoys a walk-in closet that is divided into his and her sections.
  • Two family bedrooms on the opposite side of the home share a jack and jill bathroom.
  • An added plus is a mud room bathroom in the 3 car garage.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,311 sq. ft.
  • 1st Floor: 3,311 sq. ft.
  • Bonus: 444 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Basement, Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 86' 0"
  • Depth: 73' 0"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 911 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
